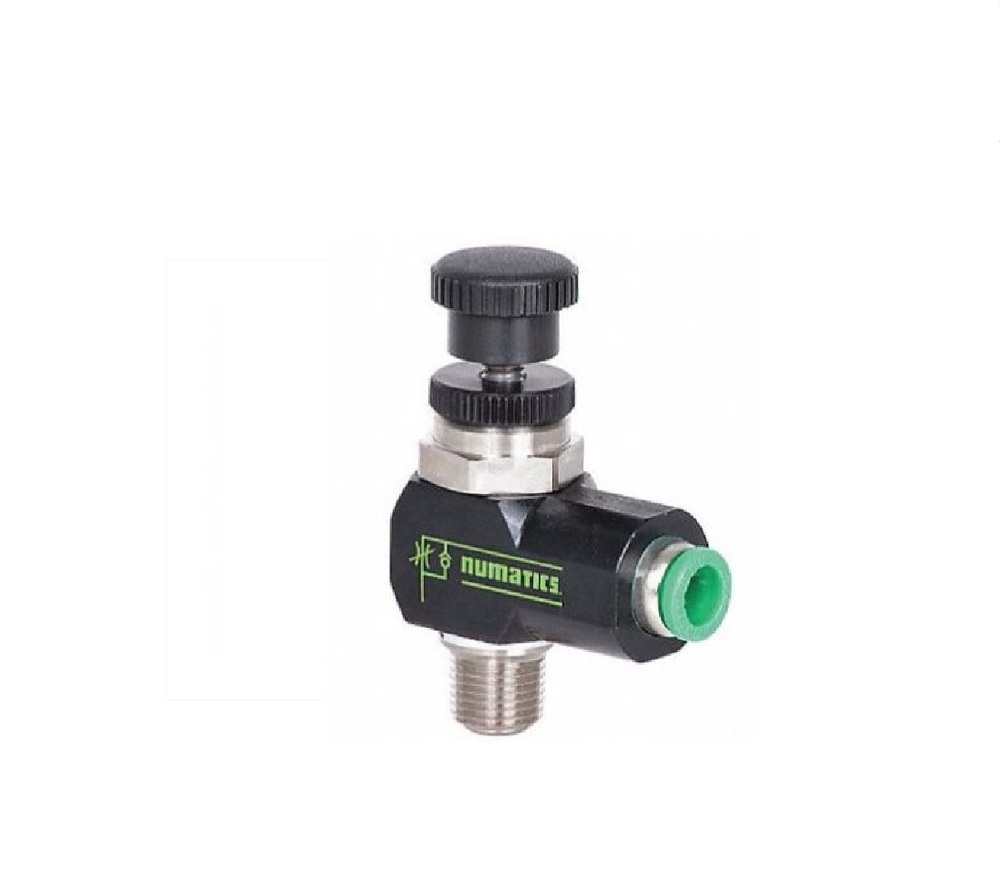

Item # 0FPTN5
NUMATICS/AVENTICS FLOW CONTROL
4MM TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ
- $113.64 / EA
- UM: EA
FEATURES
- BODY SWIVELS 360?, PROVIDES ACCURATE SPEED
- CONTROL IN A COMPACT SIZE AND ELIMINATES NEED FOR FITTING
SPECIFICATIONS
- TEMPERATURE RANGE: 0 ?F TO 160 ?F
- MAXIMUM OPERATING PRESSURE: 175 PSI (12 BAR)
- MATERIALS OF CONSTRUCTION
- BODY: ANODIZED ALUMINUM
- CARTRIDGE: NICKEL-PLATED BRASS
- SCREW: STAINLESS STEEL
- SPRING: STAINLESS STEEL
- SEALS: BUNA-N
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Click image to enlarge
Specifications
| PORT SIZE | 10/32" UNIFIED |
| TUBE SIZE | 5/32" (4MM) |
| MALE |
Item # 0FPTN5
NUMATICS/AVENTICS FLOW CONTROL
4MM TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ
Documents
Alternate Products
89953-53-32
- AIGNEP NP BRASS FLOW CONTROL
5/32" TUBE X 10/32" UNF MALE METER OUT, SCREW ADJ
- $12.90 / EA
INB135C-532-036
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL
5/32" TUBE X 10/32" UNF MALE METER OUT, SCREW ADJ
- Call for Price
INB136C-532-036
- NUMATICS/AVENTICS NP BRASS FLOW CONTROL
5/32" TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ
- $20.28 / EA
R432002367
- NUMATICS/AVENTICS PLASTIC FLOW CONTROL
5/32" TUBE X 10/32" UNF MALE METER OUT, KNOB ADJ (OVAL)
- $5.81 / EA
×
