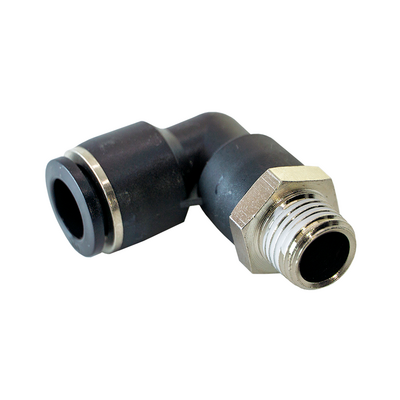

Item # PL10-1/4PT FLOFLEX
FLOFLEX COMPOSITE PUSH-IN PNEUMATIC FITTING, 10MM TUBE X 1/4" BSPT MALE 90 DEGREE REDUCING ELBOW
- $1.02 / EA
- UM: EA
- Weight: 0.05
FLOFLEX PNEUMATIC FITTINGS ARE THE IDEAL CHOICE FOR ALL OF YOUR PNEUMATIC AND AIR SYSTEM NEEDS.
- FLOFLEX QUICK CONNECT PUSH-IN FITTINGS ARE EASY TO INSTALL AND REMOVE
- STURDY DESIGN WITH A LONG SERVICE LIFE
- THE RELEASE RING PROVIDES 360 DEGREES OF ROTATION FOR ULTIMATE MANUVARABILITY OF YOUR TUBE AND EQUIPMENT
- THE PBT PLASTIC BODY HAS A WORKING TEMPERATURE UP TO 160 DEGREES F WITH A WORKING PRESSURE UP TO 150 PSITHE STRONG NICKLE PLATED BRASS BODY AND ZINC ALLOY LOCKING CLIP OFFER A DURABLE, LEAK-FREE, CORROSION RESISTANT DESIGN WITH AN EFFECTIVE AMOUNT OF CLAMPING FORCE
THE PUSH-IN QUICK CONNECTION IS COMPATABLE WITH PU, PE, NYLON, AND BSPTFE TUBING
NOT FINDING WHAT YOU NEED?SEND US AN E-MAIL:SALES@THEPNEUMATICSTORE.COM
Click image to enlarge

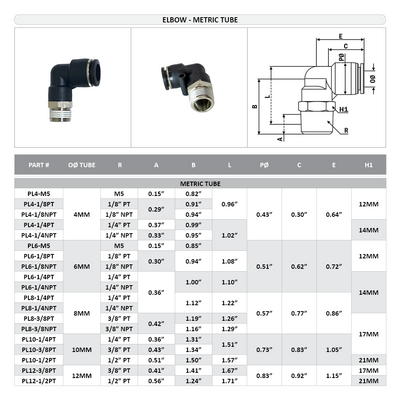

Specifications
| TUBE SIZE | 10MM |
| THREAD SIZE | 1/4" |
| THREAD TYPE | BSPT |
Item # PL10-1/4PT FLOFLEX
FLOFLEX COMPOSITE PUSH-IN PNEUMATIC FITTING, 10MM TUBE X 1/4" BSPT MALE 90 DEGREE REDUCING ELBOW
Documents
