Item # 020BB400MP00061
NUMATICS/AVENTICS SOL-PILOT VALVE
2002 SERIES 4/2 DETENT 24VDC
- $211.71 / EA
- UM: EA
THE NUMATICS/AVENTICS 2002 (02) SERIES IS A COMPACT AND LIGHTWEIGHT SERIES OF VALVES AVAILABLE WITH VARIOUS ELECTRICAL CONNECTIONS AND PORT TYPES
SPECIFICATIONS
- 5 PORTED
- 2 AND 3 POSITION
- 4-WAY
- SPOOL & SLEEVE
- CV: 0.20
FEATURES
- SOLENOID AIR PILOT ACTUATED
- LOW CURRENT REQUIREMENTS
- ELIMINATION OF INTERNAL WIRING
- PUSHER PISTON ? HIGH SPOOL SHIFTING FORCE
- MODULAR FIELDBUS ELECTRONICS AND I/O
- ADJUSTABLE PORT SIZES UTILIZING INTERCHANGEABLE CARTRIDGE FITTINGS
CAD FILES:
CLICK HERE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

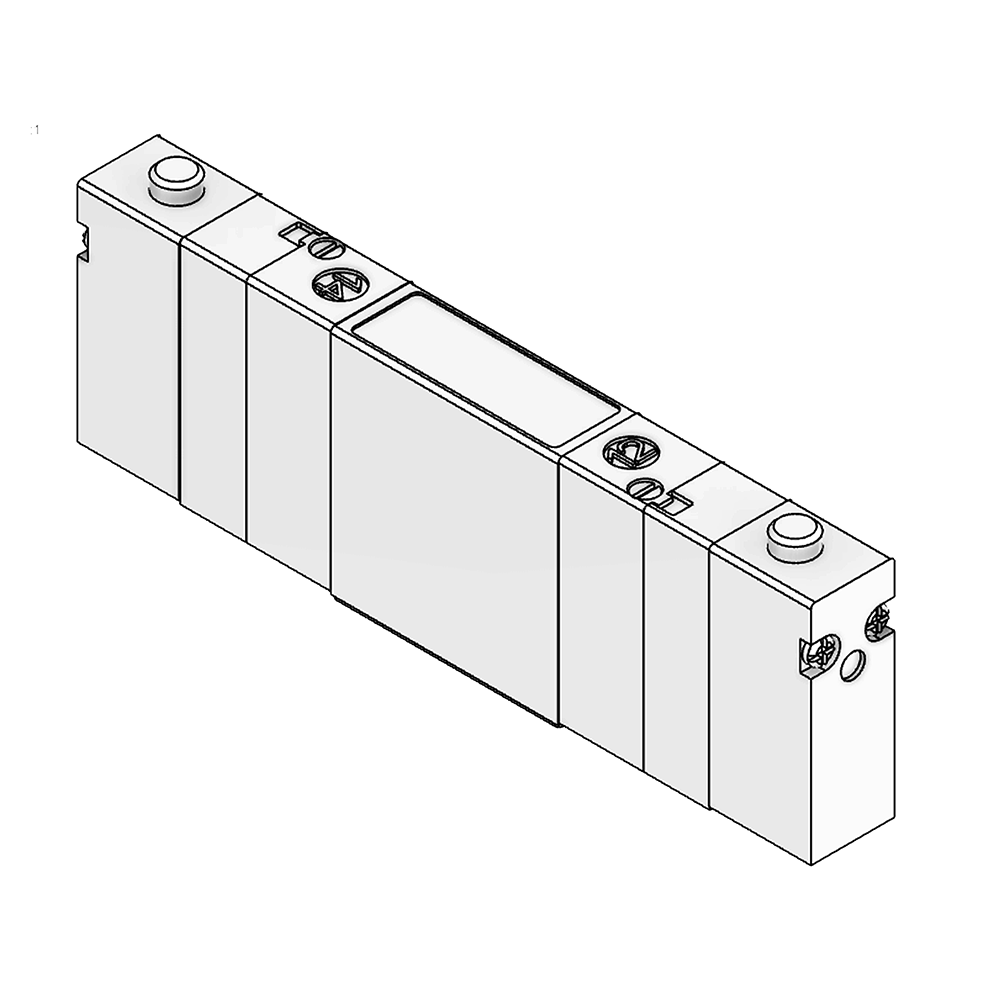

Click image to enlarge
Specifications
| CONTROL FUNCTION | DOUBLE SOLENOID PILOT |
| VALVE FUNCTION | 4 WAY 2 POSITION - (5/2) DETENT |
| VOLTAGE | 24 VDC |
| SPOOL TYPE | SPOOL & SLEEVE |
| WIRING | PLUG-IN |
| SPECIAL OPTION | NONE |
Item # 020BB400MP00061
NUMATICS/AVENTICS SOL-PILOT VALVE
2002 SERIES 4/2 DETENT 24VDC
Documents
×
