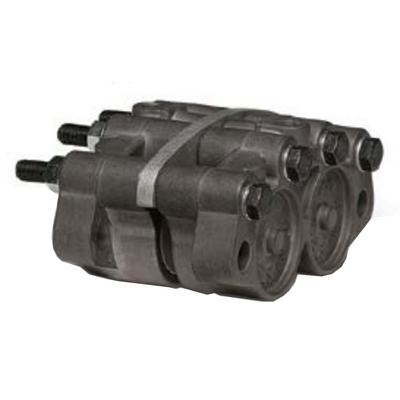

Item # 07360210

TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)

  • $349.87 / EA
  • Manufacturer: TOLOMATIC
  • UM: EA

TOLOMATIC PNEUMATIC BRAKES - P220 SERIES

SERIES FEATURES

  • DURABLE ALUMINUM CONSTRUCTION
  • REPLACABLE HIGH-GRADE MATERIAL
  • SEAL: BUNA-N STANDARD
  • BOLTS: ZINC PLATED GRADE 5
  • PROVIDES UP TO 2,000 IN-LBS (226 Nm) OF TORQUE
  • MAXIMUM PRESSURE: 100 PSI
  • ACCOMODATES DISC DIAMETERS 6-5/16", 8", 10", 12" AND 16"
  • MAXIMUM DYNAMIC TORQUE: 16" DISC: 2,076 IN-LB; 6-5/16" DISC: 685 IN-LB
  • MAXIMUM STATIC TORQUE: 16" DISC: 1,038 IN-LB; 6-5/16" DISC: 343 IN-LB

DOWNLOAD STEP

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
Click image to enlarge
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)

Specifications

ACTING DOUBLE
THICKNESS 1/4"
MOUNT FIXED
DISC FIXED
RETRACTABLE PISTONS YES

Item # 07360210

TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)

  • $349.87 / EA
    • Log in to see if custom discounts apply

    Documents

    07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
    07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
    07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
    07360210 TOLOMATIC PNEUMATIC CALIPER BRAKE, DOUBLE ACTING, FIXED MOUNT - FIXED DISC, RETRACTABLE PISTON, 1/4" THICK (P200DBR)
