Item # 082SA43B4000061
NUMATICS/AVENTICS SOLENOID VALVE/BASE
MK8 SERIES 4/2 SPR RTN 24VDC 1/4" NPT, DIN PLUG
- $156.93 / EA
- UM: EA
NUMATICS/AVENTICS MARK 8 SERIES VALVES HAVE A PLUG-IN BASE OR MANIFOLD, A PLUG-IN SOLENOID AND AN OPTIONAL PLUG-IN SANDWICH SPEED CONTROL.
THE UNIT TO BASE ELECTRICAL PLUG PERMITS INSTANT VALVE UNIT REPLACEMENT WITHOUT DISCONNECTING PIPING OR WIRING.
STANDARD SPECIFICATIONS:
- CV: 0.8 TO 1.0
- PORT SIZES: 1/8, 1/4 NPTF & G
- 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE
- FLOW CAPACITY: 37 TO 46 SCFM @ 80 PSIG / 790 TO 985 NI/M @ 6 BAR
- OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
- PILOT PRESSURE RANGE: 20 TO 115 PSIG / 1.5 TO 8 BAR
- TEMPERATURE RANGE (AMBIENT): -10?F TO +115?F / -23?C TO +46?C
FEATURES:
- FIELDBUS ELECTRONICS AND I/O?CAPABLE
- DIRECT SOLENOID ACTUATED
- PLUG-IN SOLENOID WITH INDICATOR LIGHT
- UNLUBRICATED OR LUBRICATED SERVICE
- INTEGRAL SPEED CONTROL AVAILABLE
- INTEGRAL REGULATORS AVAILABLE
- NEMA 4/IP65
CAD FILES:
CLICK HERE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

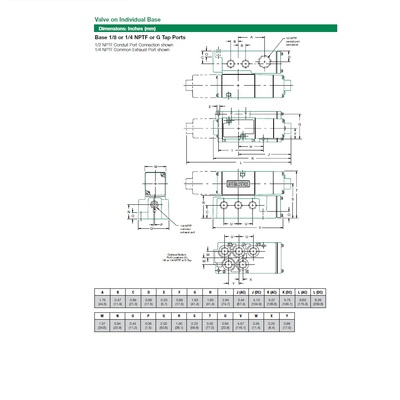

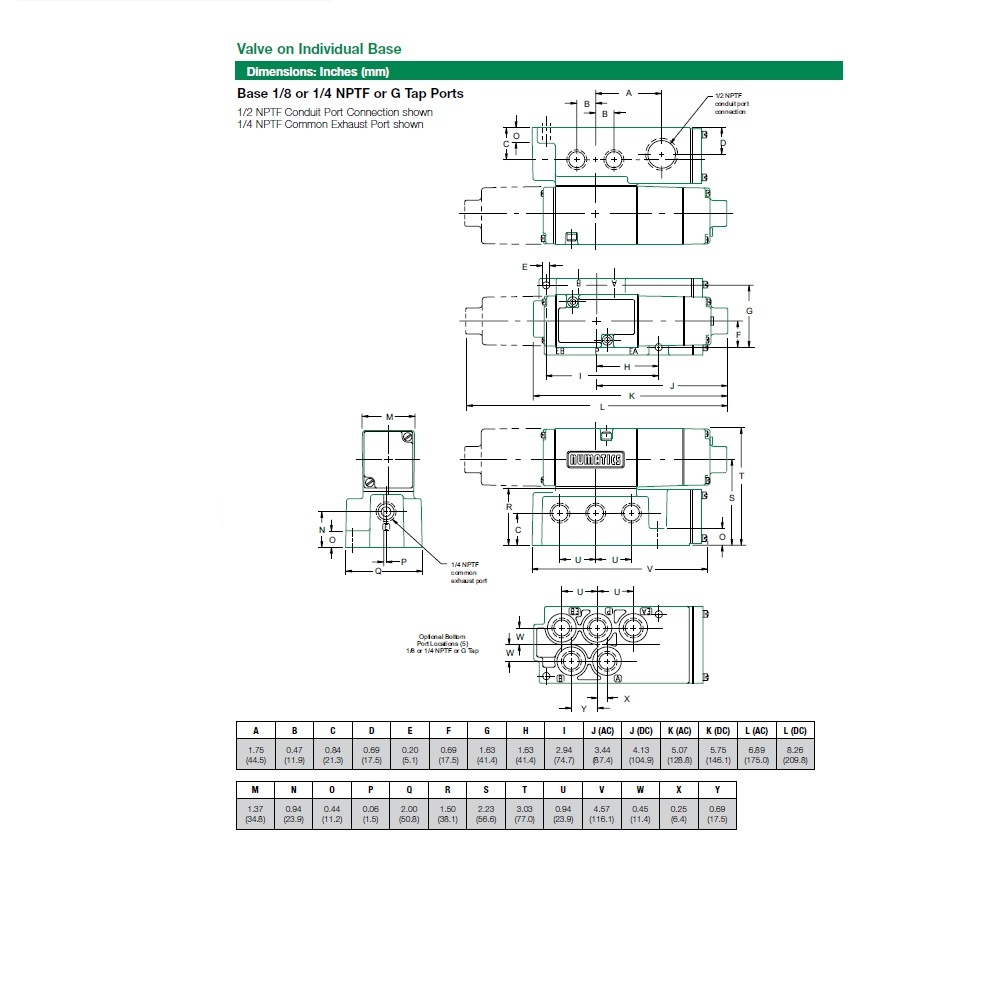

Click image to enlarge
Specifications
| PORT SIZE | 1/4" |
| PORT TYPE | NPT |
| CONTROL FUNCTION | SINGLE DIRECT SOLENOID |
| VALVE FUNCTION | 4 WAY 2 POSITION - (5/2) SPRING RETURN |
| VOLTAGE | 24 VDC |
| PORT LOCATION | SIDE & BOTTOM PORTS |
| EXHAUST OPTION | INDIVIDUAL EXHAUST |
| WIRING | DIN PLUG-IN |
| SPEED CONTROL | NO |
| SPECIAL OPTION | NONE |
Item # 082SA43B4000061
NUMATICS/AVENTICS SOLENOID VALVE/BASE
MK8 SERIES 4/2 SPR RTN 24VDC 1/4" NPT, DIN PLUG
