Item # 10-18090-0-1000MM

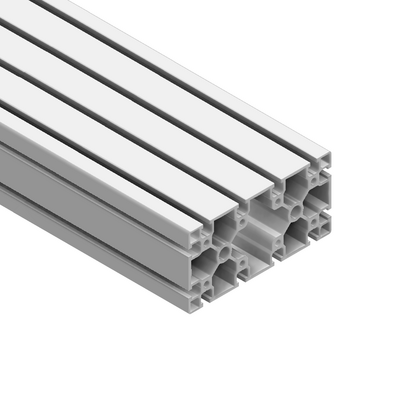

MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 180MM, CUT TO THE LENGTH OF 1000 MM
- $202.84 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 24.06

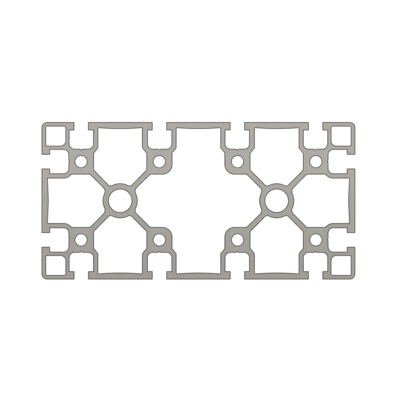

MODULAR SOLUTIONS EXTRUDED PROFILE-180MM X 90MM
| FEATURES | |
|---|---|

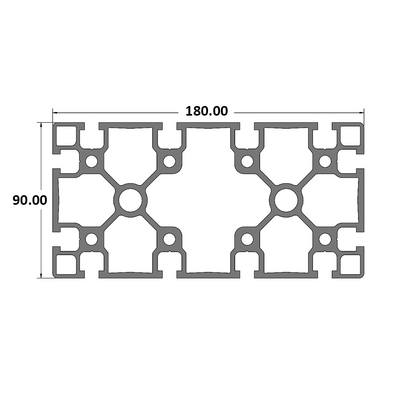

| 180MM X 90MM PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6060 T5/T6 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 24.05 LBS. / 10.91 KG. |
| IX DIM | 348.50 CM4 |
| IY DIM | 1298.70 CM4 |
| 6060 T5/T6 SPECIFIC WEIGHT: | 2.70 G/CM³ |
| MODULUS OF ELASTICITY: | E: 68000 N/MM2 |
| SHEAR MODULUS: | G: 26000 N/MM2 |
| EXPANSION HARDNESS: | CA. 70 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6060 T5/T6 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 70 |
| YIELD STRENGTH [MPA]: | 190 |
| TENSILE STRENGTH [MPA]: | 220 |
| SHEER STRENGTH [MPA]: | 130 |
| HARDNESS BRINELL HB: | 70 |
| INFO | |
|---|---|
| USE END CAP | 60-170-2 (LT GRAY) 60-170-1 (BLACK) |
| SPEEDLOCKS HIDDEN PROFILE FASTENER | 45 SERIES |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-18090-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
THE 45 SERIES FEATURES A WIDE VARIETY OF PROFILES INCLUDING, ROUND, MITRE, AND SMOOTH SIDE.
THE STANDARD PROFILES HAVE TIME SAVING FEATURES SUCH AS STANDARDIZED SLOT SIZE, CENTERLINE KNOTCH AND SELF TAPPING END HOLES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
NOT FINDING WHAT YOU NEED?
Click image to enlarge
Specifications
| LENGTH (M) | 1000 MM |
Item # 10-18090-0-1000MM
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 180MM, CUT TO THE LENGTH OF 1000 MM
