Item # 10-45135-0-36IN
MODULAR SOLUTIONS EXTRUDED PROFILE

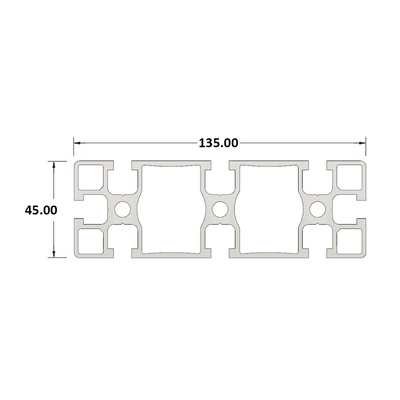

45MM X 135MM, CUT TO THE LENGTH OF 36 INCH
- $43.67 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 9.09

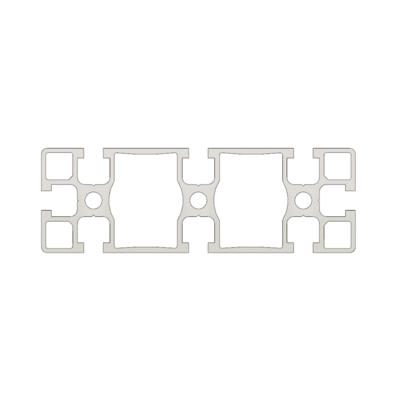

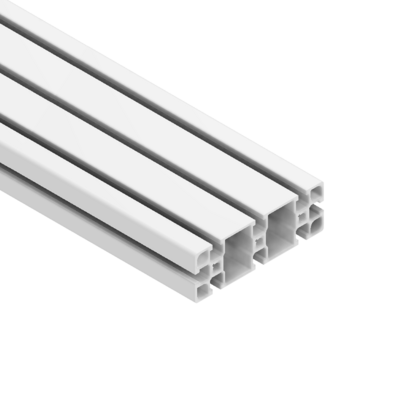

MODULAR SOLUTIONS EXTRUDED PROFILE-45MM X 135MM
| FEATURES | |
|---|---|
| 45MM X 135MM PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6060 T5/T6 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 9.94 LBS. / 4.51 KG. |
| IX DIM | 39.97 CM4 |
| IY DIM | 304.13 CM4 |
| 6060 T5/T6 SPECIFIC WEIGHT: | 2.70 G/CM³ |
| MODULUS OF ELASTICITY: | E: 68000 N/MM2 |
| SHEAR MODULUS: | G: 26000 N/MM2 |
| EXPANSION HARDNESS: | CA. 70 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6060 T5/T6 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 70 |
| YIELD STRENGTH [MPA]: | 190 |
| TENSILE STRENGTH [MPA]: | 220 |
| SHEER STRENGTH [MPA]: | 130 |
| HARDNESS BRINELL HB: | 70 |
| INFO | |
|---|---|
| USE END CAPS | 60-140-2 (LT GRAY) 60-140-1 (BLACK) |
| SPEEDLOCKS & HIDDEN PROFILE FASTENERS | 45 SERIES |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-45135-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
THE 45 SERIES FEATURES A WIDE VARIETY OF PROFILES INCLUDING, ROUND, MITRE, AND SMOOTH SIDE.
THE STANDARD PROFILES HAVE TIME SAVING FEATURES SUCH AS STANDARDIZED SLOT SIZE, CENTERLINE KNOTCH AND SELF TAPPING END HOLES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
NOT FINDING WHAT YOU NEED?
Click image to enlarge
Specifications
| LENGTH (M) | 36 INCH |
Item # 10-45135-0-36IN
MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 135MM, CUT TO THE LENGTH OF 36 INCH
