Item # 10-4545MC-0-500MM

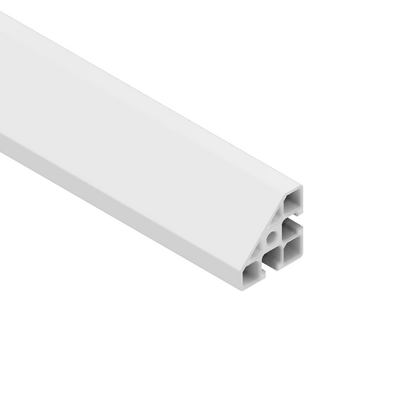

MODULAR SOLUTIONS EXTRUDED PROFILE

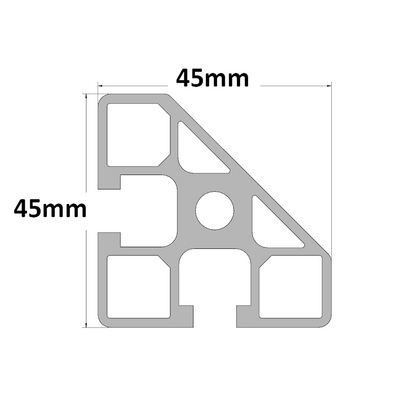

45MM X 45MM MITER CORNER, CUT TO THE LENGTH OF 500 MM
- $9.25 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 1.67
MODULAR SOLUTIONS EXTRUDED PROFILE-45MM X 45MM MITER CORNER
| FEATURES | |
|---|---|

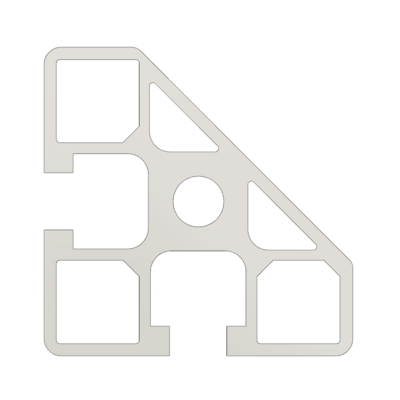

| 45MM X 45MM MITER CORNER PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6060 T5/T6 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 3.33 LBS. / 1.51 KG. |
| IX DIM | 8.7 CM4 |
| IY DIM | 8.7 CM4 |
| 6060 T5/T6 SPECIFIC WEIGHT: | 2.70 G/CM³ |
| MODULUS OF ELASTICITY: | E: 68000 N/MM2 |
| SHEAR MODULUS: | G: 26000 N/MM2 |
| EXPANSION HARDNESS: | CA. 70 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6060 T5/T6 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 70 |
| YIELD STRENGTH [MPA]: | 190 |
| TENSILE STRENGTH [MPA]: | 220 |
| SHEER STRENGTH [MPA]: | 130 |
| HARDNESS BRINELL HB: | 70 |
| INFO | |
|---|---|
| USE END CAPS | 60-090-2 (LT GRAY) 60-090-1 (BLACK) |
| SPEEDLOCKS & HIDDEN PROFILE FASTENERS | 45 SERIES |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-4545MC-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
NOT FINDING WHAT YOU NEED?
Click image to enlarge
Specifications
| LENGTH (M) | 500 MM |
Item # 10-4545MC-0-500MM
MODULAR SOLUTIONS EXTRUDED PROFILE
45MM X 45MM MITER CORNER, CUT TO THE LENGTH OF 500 MM
