Item # 10-9018.5-0-48IN
MODULAR SOLUTIONS EXTRUDED PROFILE

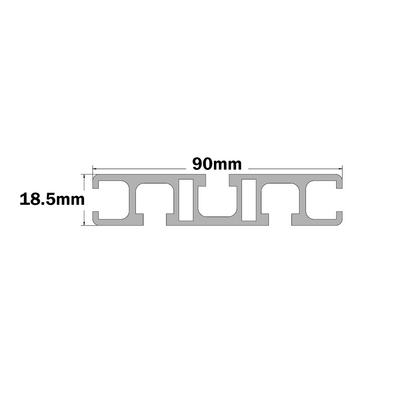

90MM X18.5MM, CUT TO THE LENGTH OF 48 INCH
- $42.75 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 4.55

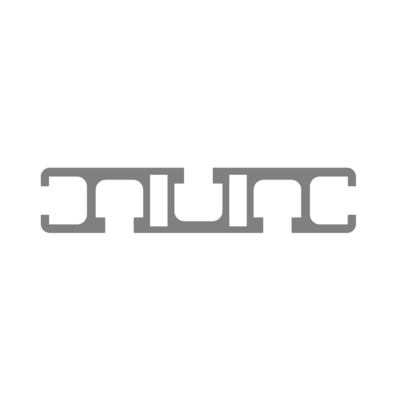

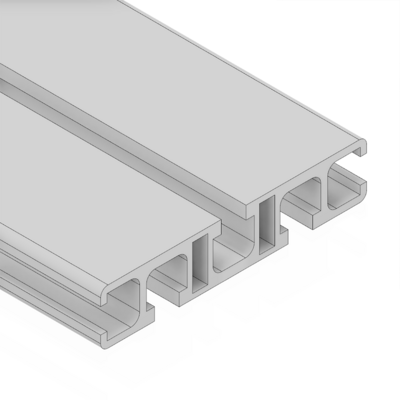

MODULAR SOLUTIONS EXTRUDED PROFILE-90MM X 18.5MM
| FEATURES | |
|---|---|
| 90MM X 18.5MM PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6060 T5/T6 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 3.73 LBS. / 1.69 KG. |
| IX DIM | 2.96 CM4 |
| IY DIM | 41.24 CM4 |
| 6060 T5/T6 SPECIFIC WEIGHT: | 2.70 G/CM³ |
| MODULUS OF ELASTICITY: | E: 68000 N/MM2 |
| SHEAR MODULUS: | G: 26000 N/MM2 |
| EXPANSION HARDNESS: | CA. 70 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6060 T5/T6 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 70 |
| YIELD STRENGTH [MPA]: | 190 |
| TENSILE STRENGTH [MPA]: | 220 |
| SHEER STRENGTH [MPA]: | 130 |
| HARDNESS BRINELL HB: | 70 |
| INFO | |
|---|---|
| USE END CAP | 60-100-2 (LT GRAY) 60-100-1 (BLACK) |
| SPEEDLOCKS & HIDDEN PROFILE FASTENERS | IF USED WITH 45 SERIES PROFILE IF USED WITH 30 SERIES PROFILE |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-9018.5-0 IS PART OF The 45 SERIES & 30 SERIES ALUMINUM PROFILE SYSTEMS WHICH ARE GREAT FOR MANY GENERAL-PURPOSE USES.
THE 45 SERIES CAN BE USED IN LIGHT TO HEAVY DUTY APPLICATIONS.
THE 30 SERIES CAN BE USED IN LIGHT TO MEDIUM DUTY APPLICATIONS.
THEY FEATURES A WIDE VARIETY OF PROFILES INCLUDING, ROUND, MITRE, AND SMOOTH SIDE.
THE STANDARD PROFILES HAVE TIME SAVING FEATURES SUCH AS STANDARDIZED SLOT SIZE, CENTERLINE KNOTCH AND SELF TAPPING END HOLES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
NOT FINDING WHAT YOU NEED?
Specifications
| LENGTH (M) | 48 INCH |
Item # 10-9018.5-0-48IN
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X18.5MM, CUT TO THE LENGTH OF 48 INCH
