Item # 10-9090-0-400MM

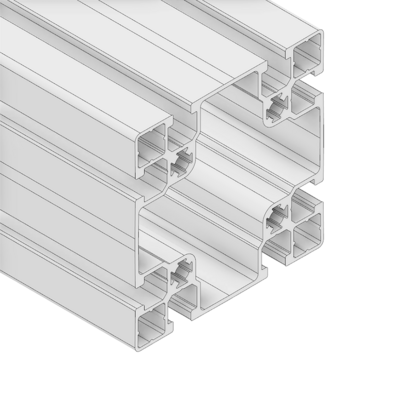

MODULAR SOLUTIONS EXTRUDED PROFILE

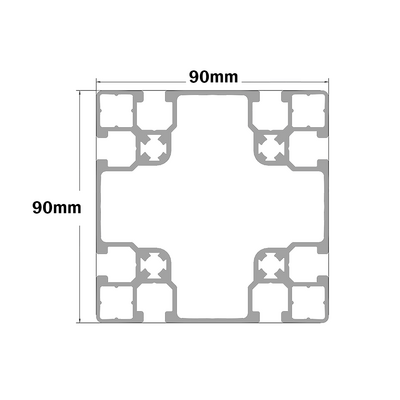

90MM X 90MM, CUT TO THE LENGTH OF 400 MM
- $21.42 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 3.33

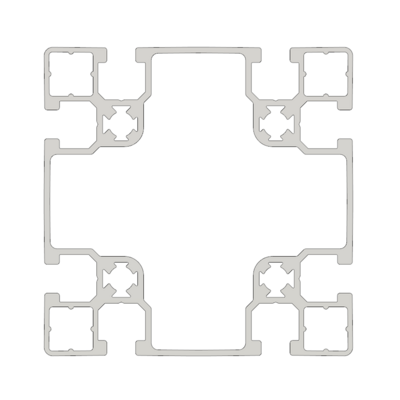

MODULAR SOLUTIONS EXTRUDED PROFILE-90MM X 90MM
| FEATURES | |
|---|---|
| 90MM X 90MM PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6063 T66 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 8.33 LBS. / 3.78 KG. |
| IX DIM | 131.72 CM4 |
| IY DIM | 131.72 CM4 |
| 6063 T66 SPECIFIC WEIGHT: | 2.75 G/CM³ |
| MODULUS OF ELASTICITY: | E: 70000 N/MM2 |
| SHEAR MODULUS: | G: 27000 N/MM2 |
| EXPANSION HARDNESS: | CA. 75 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6063 T66 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 68.9 |
| YIELD STRENGTH [MPA]: | 214 |
| TENSILE STRENGTH [MPA]: | 241 |
| SHEER STRENGTH [MPA]: | 152 |
| HARDNESS BRINELL HB: | 73 |
| INFO | |
|---|---|
| USE END CAPS | 60-030-2 (LT GRAY) 60-030-1 (BLACK) 60-030-0 (GRAY) 60-030-5 (ALUMINUM) |
| SPEEDLOCKS & HIDDEN PROFILE FASTENERS | 45 SERIES |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-9090H-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
NOT FINDING WHAT YOU NEED?
Click image to enlarge
Specifications
| LENGTH (M) | 400 MM |
Item # 10-9090-0-400MM
MODULAR SOLUTIONS EXTRUDED PROFILE
90MM X 90MM, CUT TO THE LENGTH OF 400 MM
Documents
×
