Item # 10-912-0-1250MM
MODULAR SOLUTIONS LINEAR PART

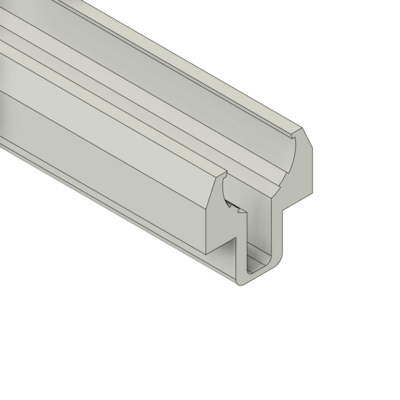

12MM SHAFT SUPPORT PROFILE, CUT TO THE LENGTH OF 1250 MM
- $54.05 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 10.23

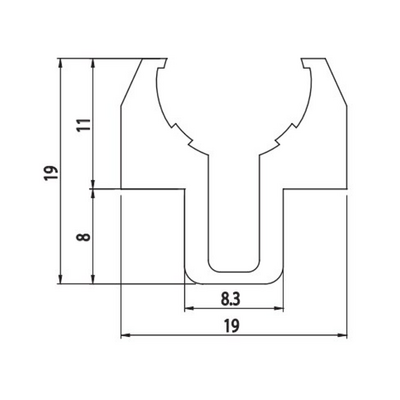

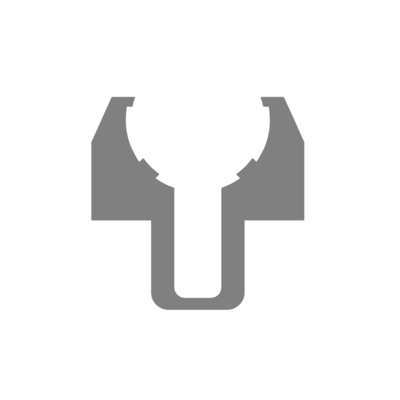

MODULAR SOLUTIONS EXTRUDED PROFILE-12MM SHAFT SUPPORT PROFILE
| FEATURES | |
|---|---|
| 12MM SHAFT SUPPORT PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6063 T66 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| 6063 T66 SPECIFIC WEIGHT: | 2.75 G/CM³ |
| MODULUS OF ELASTICITY: | E: 70000 N/MM2 |
| SHEAR MODULUS: | G: 27000 N/MM2 |
| EXPANSION HARDNESS: | CA. 75 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6063 T66 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 68.9 |
| YIELD STRENGTH [MPA]: | 214 |
| TENSILE STRENGTH [MPA]: | 241 |
| SHEER STRENGTH [MPA]: | 152 |
| HARDNESS BRINELL HB: | 73 |
PROFILE # 10-912-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
PLEASE SEE THE CATALOG FOR MORE INFORMATION
NOT FINDING WHAT YOU NEED?
Click image to enlarge
Specifications
| LENGTH (M) | 1250 MM |
Item # 10-912-0-1250MM
MODULAR SOLUTIONS LINEAR PART
12MM SHAFT SUPPORT PROFILE, CUT TO THE LENGTH OF 1250 MM
