Item # 1139606

REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)

  • $1688.36 / EA
  • Manufacturer: REER
  • UM: EA
  • Weight: 16.20

THE ADMIRAL SERIES OF SAFETY LIGHT CURTAINS, WITH INTEGRATED BLANKING FUNCTIONS, IS THE IDEAL SOLUTION FOR THE PROTECTION OF THE MAJORITY OF HIGH-RISK INDUSTRIAL APPLICATIONS. LONG RANGE MODELS WITH 2, 3, OR 4 BEAMS ALLOW IT TO REACH A MAMIMUM OF 60 METERS. THE DUAL BEAM MODELS CAN REACH A MAXIMUM OF 80 METERS.

ABOUT THIS MODEL:

TYPE 4, SIL3, SILCL3, PL E, CAT. 4.
WATERTIGHT ENCLOSURES ALLOW SAFETY LIGHT CURTAINS TO BE USED IN HARSH WORKING ENVIRONMENTS AND OUTDOOR.
INTEGRATED ANTI-CONDENSATION SYSTEM.
HARDWARE CONFIGURATION: NO PROGRAMMING NECESSARY, EASY TO INSTALL AND REPLACE.
UNSHIELDED CABLES UP TO 100 M CAN BE USED TO CONNECT THE SAFETY LIGHT CURTAIN.
WHAT'S IN THE BOX: EMITTER, RECEIVER, STANDARD FASTENING BRACKETS, PRE-WIRED CONNECTION CABLE

SAFETY CERTIFICATIONS: CE, TÜV, UL

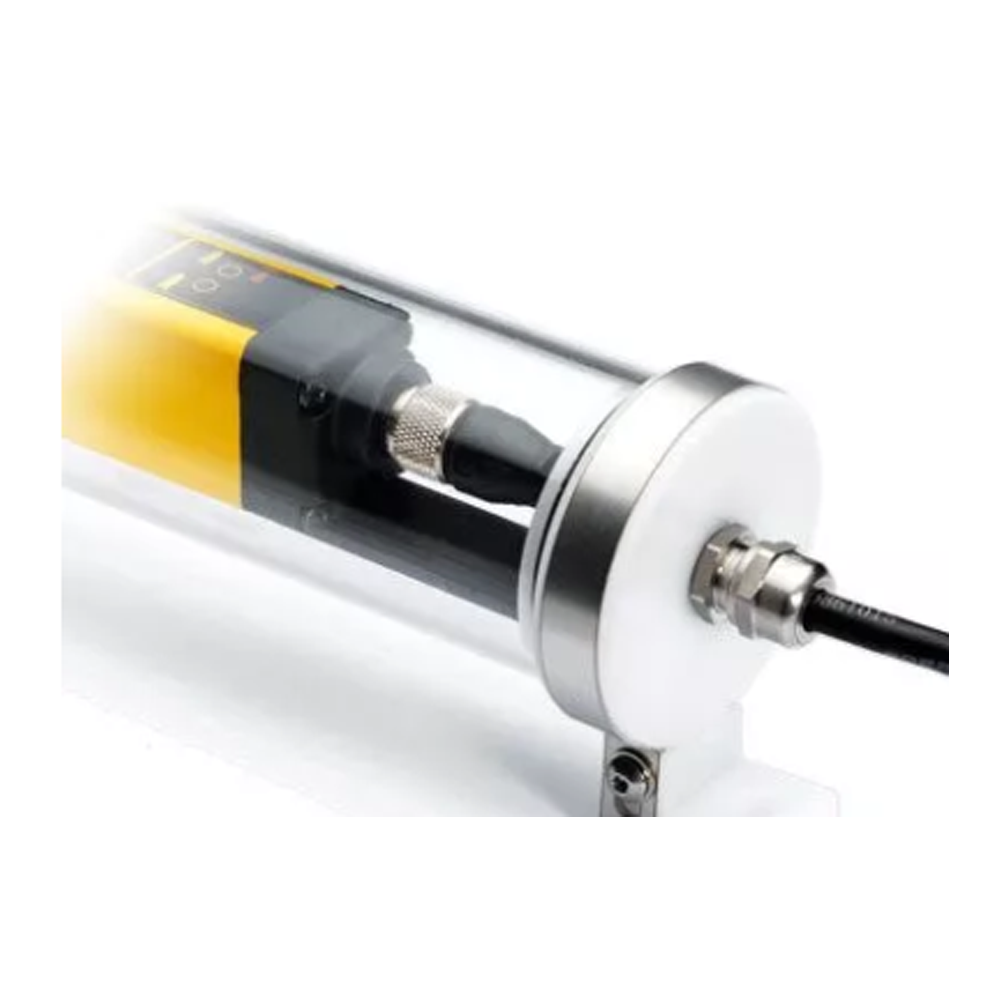

ADMIRAL HEATED, WATERTIGHT ENCLOSURE SAFETY LIGHT CURTAIN

SPECIFICATIONS
DETECTION LENGTH:
500 MM
RESOLUTION:
HEIGHT:
1030 MM
WIDTH:
200 MM
DEPTH:
145 MM
WEIGHT:
7.38 Kg
DETECTION TYPE:
Safe
ADD ONS:
EXTERNAL DEVICE MONITORING
HEATED, WATERTIGHT ENCLOSURE
XL RANGE, 10M PREWIRED LEAD CABLE
DUAL-BEAM TECHNOLOGY
RESTART MODE:
AUTOMATIC/MANUAL

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
Click image to enlarge
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)

Specifications

CURTAIN LENGTH 1030MM (41")
STANDARD/HEATED/UV RESIST WTH - HEATED

Item # 1139606

REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)

  • $1688.36 / EA
    • Log in to see if custom discounts apply

    Documents

    1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
    1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
    1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
    1139606 REER HEATED WT, A/MR, EDM, XL RANGE, DUAL-BEAM TECH, IP67 CERT, CAT4, L:1030MM(AX 2B LR DB WTH)
