Item # 123BA43CMN00061
NUMATICS/AVENTICS SOL-PILOT VALVE/BASE
2012 SERIES 4/2 SPR RTN 24VDC 3/8" NPT, SC
- $224.16 / EA
- UM: EA
NUMATICS/AVENTICS 2012 SERIES VALVES ARE COMPACT AND HAVE AN ELECTRICAL PLUG THAT PERMITS INSTANT VALVE UNIT REPLACEMENT WITHOUT DISCONNECTING PIPING OR WIRING.
VALVE UNITS ARE AVAILABLE WITH A VARIETY OF WIRING AND COMMUNICATION OPTIONS INCLUDING FIELDBUS, ROUND CONNECTORS, D-SUB CONNECTORS, AND TERMINAL STRIPS.
FEATURES:
- 5 PORTED
- 2 AND 3 POSITION
- 4-WAY, SPOOL & SLEEVE
- CV: 1.2
- SOLENOID AIR PILOT ACTUATED
- LOW WATTAGE PLUG-IN ? 2.5 WATT FOR DC APPLICATION
- DC SOLENOIDS POLARITY INSENSITIVE WITH SURGE SUPPRESSION
- PLUG TOGETHER CIRCUIT BOARDS ELIMINATE INTERNAL WIRING
- INTEGRAL RECESSED GASKETS
- INTERCHANGEABLE PUSH-IN FITTINGS TO ACCOMMODATE VARIOUS TUBE SIZES
- SIMPLE CONVERSION FROM INTERNAL TO EXTERNAL PILOT
- MODULAR PLUG-TOGETHER FIELDBUS ELECTRONICS
- DESIGNED TO MEET THE REQUIREMENT OF NEMA 4 / IP65

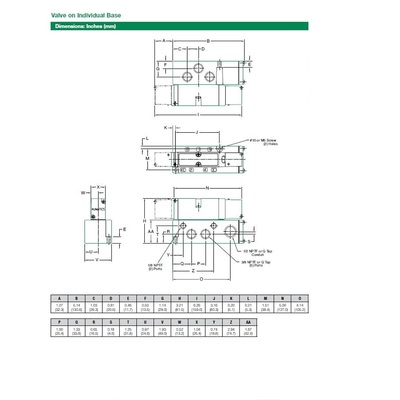

CAD FILES:
CLICK HERE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

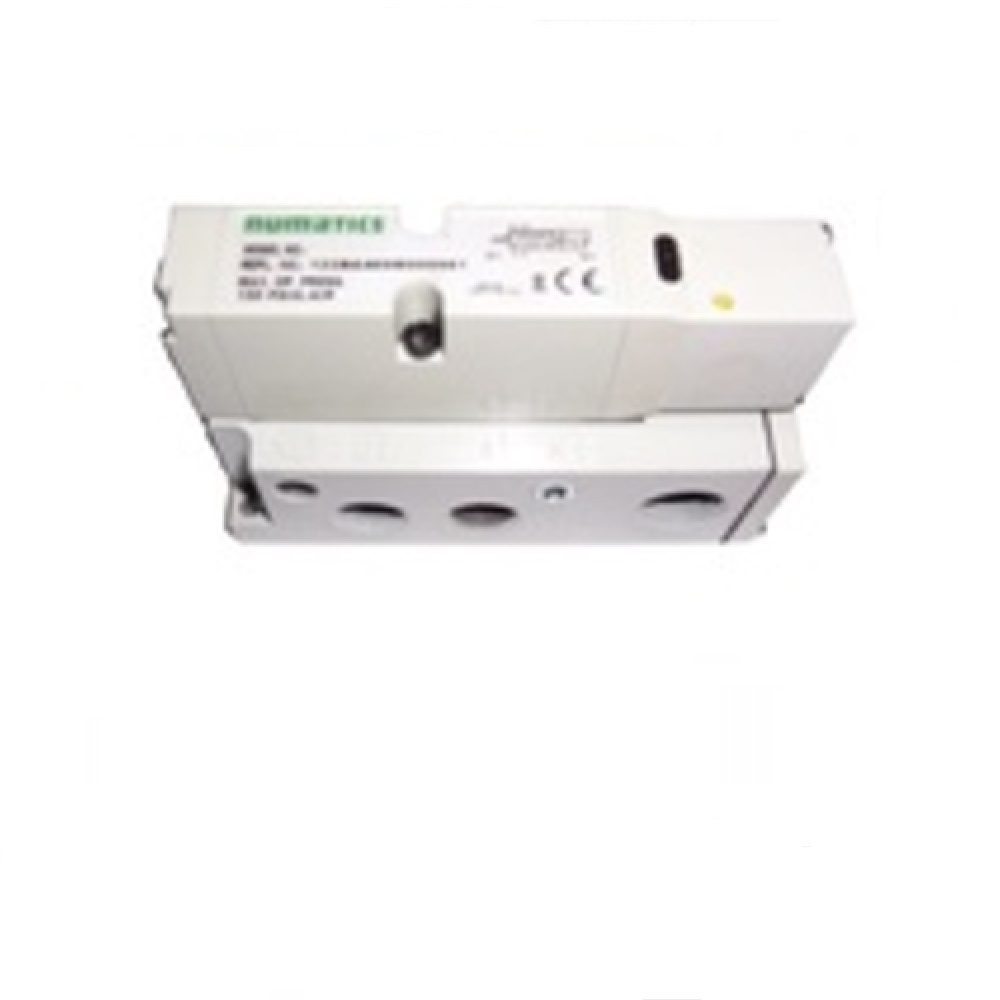

Click image to enlarge
Specifications
| PORT SIZE | 3/8" |
| PORT TYPE | NPT |
| CONTROL FUNCTION | SINGLE SOLENOID PILOT |
| VALVE FUNCTION | 4 WAY 2 POSITION - (5/2) SPRING RETURN |
| VOLTAGE | 24 VDC |
| WIRING | PLUG-IN |
| SPEED CONTROL | YES |
| SPECIAL OPTION | NONE |
Item # 123BA43CMN00061
NUMATICS/AVENTICS SOL-PILOT VALVE/BASE
2012 SERIES 4/2 SPR RTN 24VDC 3/8" NPT, SC
