Item # 1334608

REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)

  • $1147.98 / EA
  • Manufacturer: REER
  • UM: EA
  • Weight: 12.00

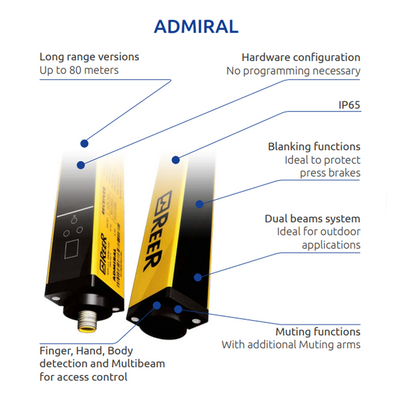

THE ADMIRAL SERIES OF SAFETY LIGHT CURTAINS, WITH INTEGRATED BLANKING FUNCTIONS, IS THE IDEAL SOLUTION FOR THE PROTECTION OF THE MAJORITY OF HIGH-RISK INDUSTRIAL APPLICATIONS. LONG RANGE MODELS WITH 2, 3, OR 4 BEAMS ALLOW IT TO REACH A MAMIMUM OF 60 METERS. THE DUAL BEAM MODELS CAN REACH A MAXIMUM OF 80 METERS.

ABOUT THIS MODEL:

SAFETY LIGHT CURTAIN: TYPE 4, SIL3, SILCL3, PL E, CAT. 4.
CROSS SECTION: 35 X 45 MM.
HARDWARE CONFIGURATION: NO PROGRAMMING NECESSARY, EASY TO INSTALL AND REPLACE.
CONNECTION AND CONFIGURATION THROUGH M12 CONNECTORS.
UNSHIELDED CABLES UP TO 100 M CAN BE USED TO CONNECT THE SAFETY LIGHT CURTAIN.
WHAT'S IN THE BOX: EMITTER, RECEIVER AND STANDARD FASTENING BRACKETS

SAFETY CERTIFICATIONS: CE, TÜV

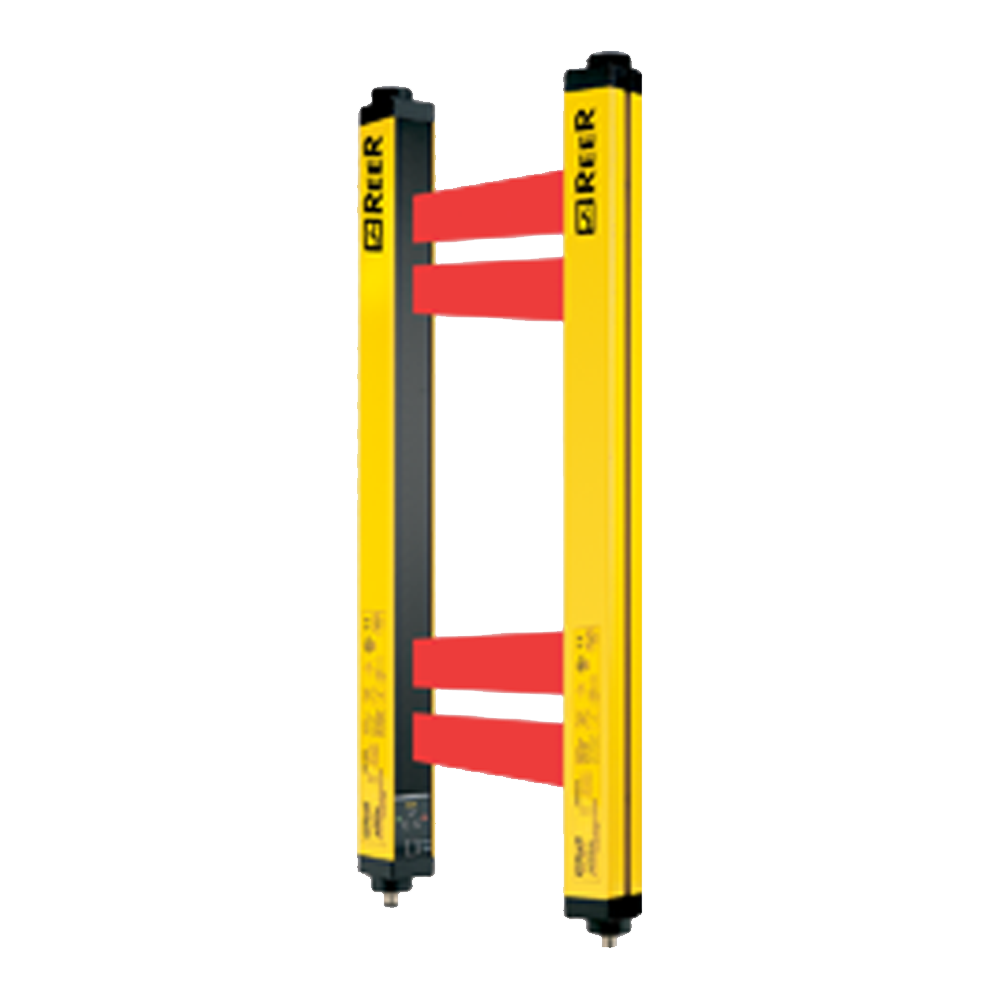

ADMIRAL SAFETY LIGHT CURTAIN

SPECIFICATIONS
DETECTION LENGTH:
900 MM
RESOLUTION:
HEIGHT:
1240 MM
WIDTH:
200 MM
DEPTH:
145 MM
WEIGHT:
5.45 Kg
DETECTION TYPE:
ACCESS CONTROL
ADD ONS:
EXTERNAL DEVICE MONITORING
RESTART MODE:
AUTOMATIC/MANUAL

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

1334608 REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)
1334608 REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)
1334608 REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)
Click image to enlarge
1334608 REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)
1334608 REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)
1334608 REER ACCESS CONTROL GRID, A/M RESET, EDM, XL RANGE, DUAL-BEAM TECH, CAT 4, L: 1240MM (AX 4B LR DB)

Specifications

CURTAIN LENGTH 1240MM (49")
STANDARD/DUAL BEAM DB - DUAL-BEAM
RESOLUTION MULTI-BEAM
