THE SAFEGATE SERIES OF SAFETY LIGHT CURTAINS HAVE INTEGRATED MUTING FUNCTIONS. THIS SERIES IS IDEAL FOR THE PROTECTION OF A VAST NUMBER OF HIGH-RISK INDUSTRIAL APPLICATIONS THAT REQUIRE AN ADDED LEVEL OF MUTING SAFETY. THIS SERIES GUARANTEES THE INTEGRATION OF MUTING SENSORS THAT CAN BE CONNECTED DIRECTLY TO THE SAFETY LIGHT CURTAIN. THE PROGRAMMABLE MODELS(SMPO) HAVE A FUNCTIONAL PARAMETER CONFIGURATION THAT CAN BE MANAGED VIA THE SAFEGATE CONFIGURATION SOFTWARE(SCS)

ABOUT THIS MODEL:

PARALLEL BEAMS MUTING ARMS WITH 4 RETRO-REFLECTIVE SENSORS.
CAN BE USED IN CONJUNCTION WITH SAFEGATE ACCESS CONTROL BARRIERS TO CREATE A TWO-WAY ACCESS CONTROL SYSTEM WITH ENTRY-EXIT T-MUTING LOGIC.
WITH REDUCED OPERATIVE RANGE MUTING SENSORS OPTIMISED FOR A CORRECT AND CONSISTENT DETECTION OF TRANSPARENT MATERIALS (I.E. GLASS) AND LONGER BUILT-IN MUTING ARMS FOR HIGH-SPEED CONVEYORS.
WHAT'S IN THE BOX: 4 MUTING ARMS (ACTIVE AND PASSIVE ELEMENTS) WITH PRE-WIRED AND PRE-ALIGNED MUTING SENSORS, SCREWS AND FIXING BRACKETS

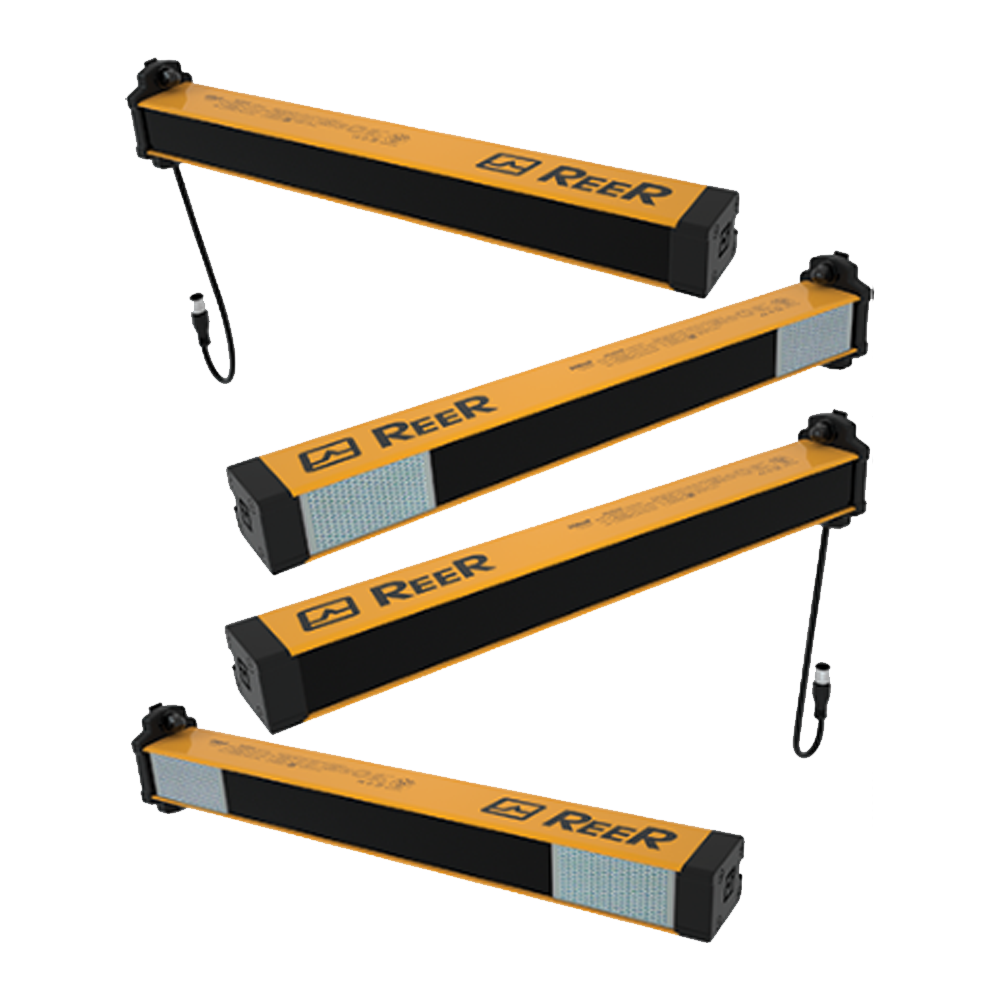

SAFEGATE SET OF MUTING ARMS

SPECIFICATIONS
DETECTION LENGTH:
RESOLUTION:
HEIGHT:	1020 mm
WIDTH:	200 mm
DEPTH:	145 mm
WEIGHT:	4.23 Kg
DETECTION TYPE:
ADD ONS:	L-LOGIC (EXIT ONLY) 2 PARALLEL BEAMS FOR USE WITH HIGH SPEED CONVEYORS
RESTART MODE:
