Item # 153RS115J000000
NUMATICS/AVENTICS SANDWICH REGULATOR/MANIFOLD
MK15 SERIES SGL PR 10-130PSI 3/8" NPT
- $173.47 / EA
- UM: EA
THE NUMATICS/AVENTICS MARK 15 AND PA 15 SERIES ARE HIGH QUALITY AIR VALVES WITH HIGH FLOW CAPACITY IN A COMPACT DESIGN.
THEY MAY BE MOUNTED ON A BASE OR MANIFOLD. SANDWICH SPEED CONTROLS AND SANDWICH PRESSURE REGULATORS ARE AVAILABLE.
STANDARD SPECIFICATIONS FOR MARK 15 AND PA 15 SERIES VALVES:
- CV: 1.5
- PORT SIZES: 1/4, 3/8 NPTF, G
- 5 PORTED, 2 AND 3 POSITION, 4-WAY, SPOOL & SLEEVE
- FLOW CAPACITY: 65 TO 69 SCFM @ 80 PSIG / 1379 TO 1477 NI/M @ 6 BAR
- OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
- PILOT PRESSURE RANGE: 20 TO 125 PSIG / 2 POSITION DETENTED 15 TO 125 PSIG
- TEMPERATURE RANGE (AMBIENT): -10?F TO +115?F / -23?C TO +46?C
FEATURES FOR MARK 15 AND PA 15 SERIES VALVES:
- FIELDBUS ELECTRONICS AND I/O CAPABLE
- DIRECT SOLENOID OR AIR PILOT ACTUATED
- PLUG-IN SOLENOID WITH INDICATOR LIGHT
- UNLUBRICATED OR LUBRICATED SERVICE
- INTEGRAL SPEED CONTROL AVAILABLE
- INTEGRAL REGULATORS AVAILABLE
- NEMA 4/IP65
- BODY TO BASE PLUG-IN
CAD FILES:
CLICK HERE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

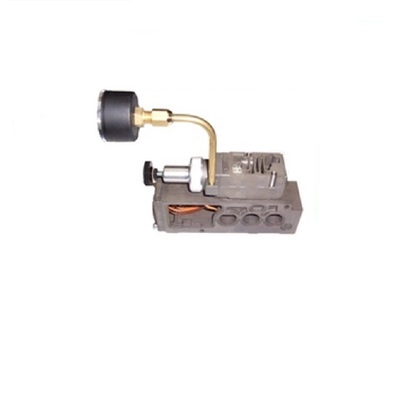

Click image to enlarge
Specifications
| PORT SIZE | 3/8" |
| PORT TYPE | NPT |
| REGULATOR TYPE | SINGLE PRESSURE TO PORT 1 |
| PRESSURE RANGE | 10-130 PSIG (0.7-9 BAR) |
| PORT LOCATION | STANDARD |
| WIRING | PLUG-IN |
| SPEED CONTROL | NO |
| SPECIAL OPTION | NONE |
Item # 153RS115J000000
NUMATICS/AVENTICS SANDWICH REGULATOR/MANIFOLD
MK15 SERIES SGL PR 10-130PSI 3/8" NPT
Documents
×
