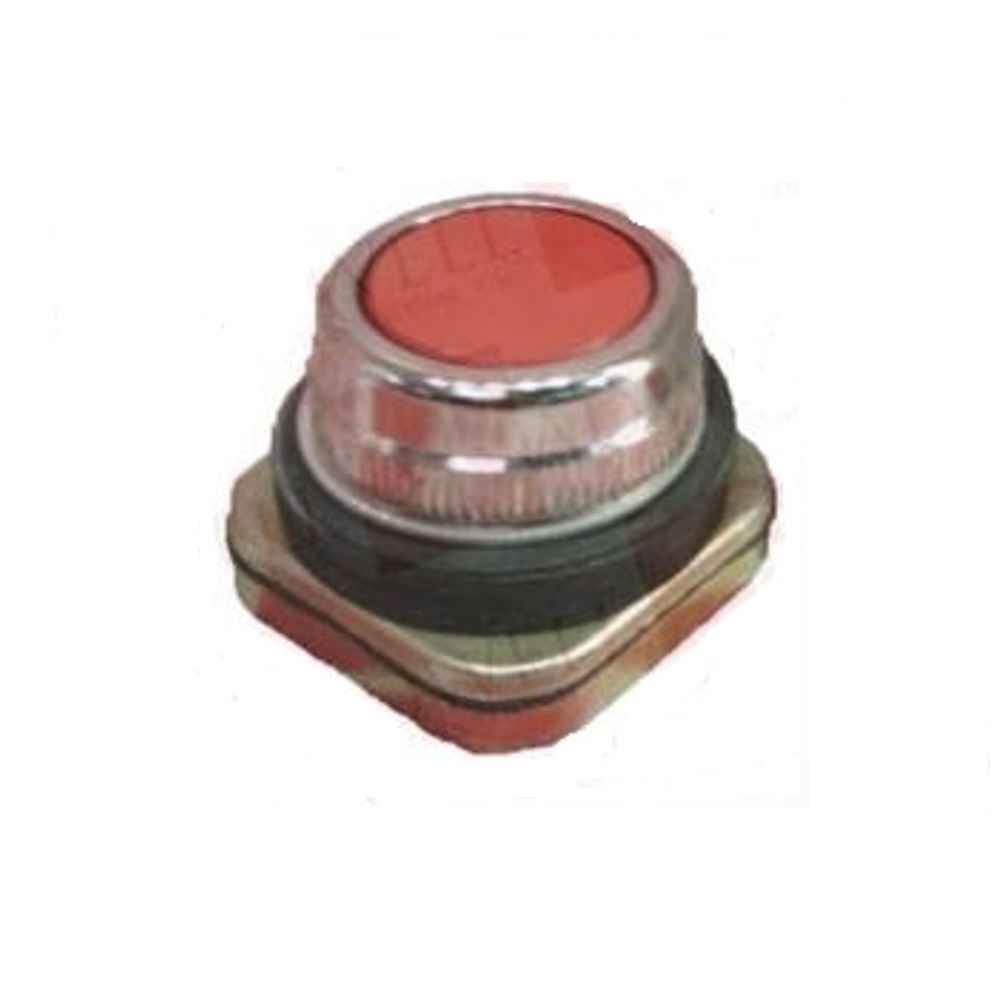

NUMATROL (NUMATICS) PE SERIES VALVES UTILIZE THE OPERATING HEAD FROM STANDARD ELECTRICAL PUSHBUTTONS AND SELECTORS AND A NUMATROL II VALVE BLOCK MOUNTED ON THE READ FACE OF THE OPERATOR, IN PLACE IF THE USUAL ELECTRICAL CONTACT BLOCK. THE OPERATORS ARE OF HEAVY DUTY, OIL TIGHT CONSTRUCTION AND FIT STANDARD ELECTRICAL ENCLOSURES. VALVES ARE EITHER A MULTIPURPOSE PE 3-WAY OR AN OPEN EXHAUST PE 4-WAY ACTION, SPRING RETURN. VALVES MUST BE PURCHASED SEPARATELY FOR THE OPERATOR HEAD.

SPECIFICATIONS

• PRESSURE RANGE: VACUUM TO 150 PSIG
• TEMPERATURE RANGE: 40 DEG F TO 200 DEG F (AMBIENT)
• CV: .23 AT 80 PSIG
• METAL BODY
• SPRING RETURN & DETENTED
