Item # 30-M10D40-1
MODULAR SOLUTIONS PLASTIC FOOT
40 DIA, M10 THREAD W/ JAM NUT
- $6.52 / EA
- Manufacturer: MODULAR SOLUTIONS
- UM: EA
- Weight: 0.12

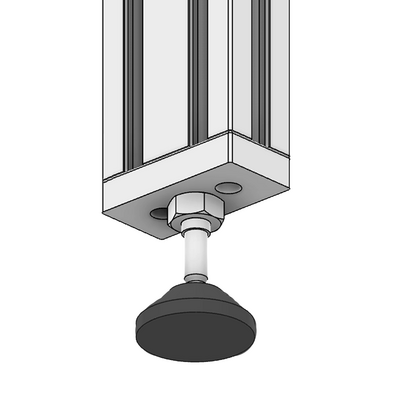

MODULAR SOLUTIONS PLASTIC FOOT-40 DIA, M10 THREAD W/ JAM NUT
- FOOT PAD 40MM X M10
- M10 THREAD STEM WITH M8 WRENCH FLATS
- NBR ANTI-SLIP PAD
- MATERIAL: BLACK NYLON BASE
TECHNICAL
- +/- 15 DEG MOVEMENT
- 11,000 N STATIC LOAD
INFO

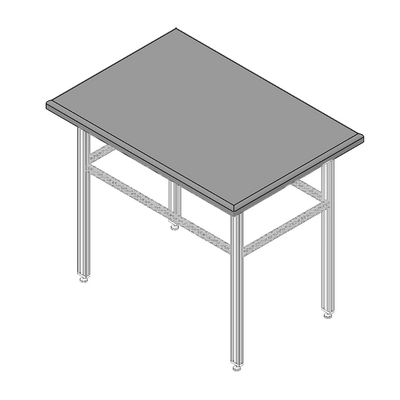

- LEVELING OF GUARDING OR WORKBENCH
- 1 1/2 IN OF HEIGHT ADJUSTMENT

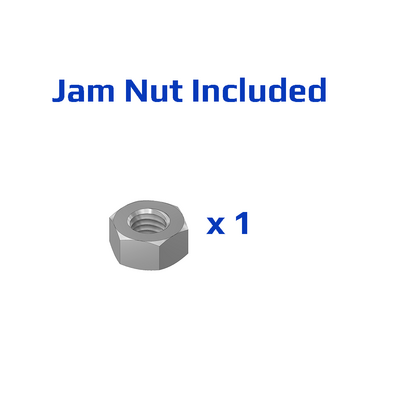

- INCLUDES JAM NUT AND ANTI SLIP PAD
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Click image to enlarge

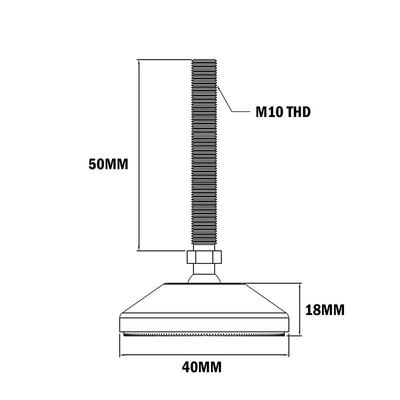

Specifications
| PAD DIAMETER | 40 MM |
| THREAD SIZE | M10 |
Item # 30-M10D40-1
MODULAR SOLUTIONS PLASTIC FOOT
40 DIA, M10 THREAD W/ JAM NUT
