Item # 30-M16D100-1
MODULAR SOLUTIONS PLASTIC FOOT
100MM PAD, M16 THREAD W/ JAM NUT
Click image to enlarge
Item # 30-M16D100-1
MODULAR SOLUTIONS PLASTIC FOOT
100MM PAD, M16 THREAD W/ JAM NUT
- UM : EA

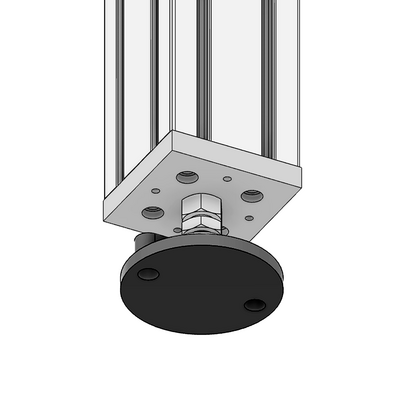

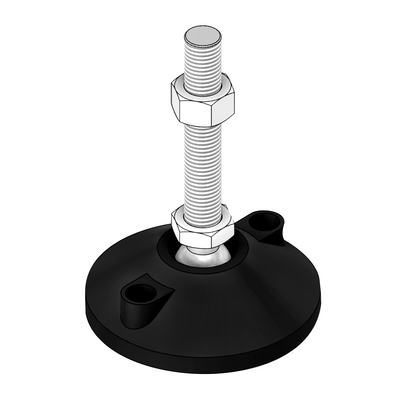

MODULAR SOLUTIONS PLASTIC FOOT-100MM PAD, M16 THREAD W/ JAM NUT

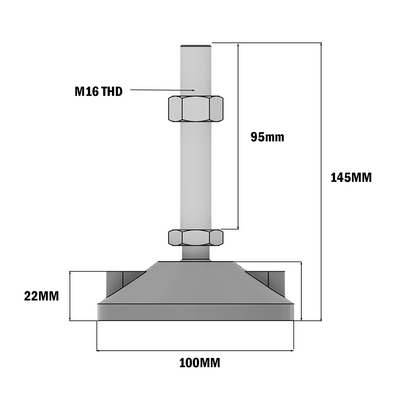

- FOOT PAD 100MM X M16
- M16 THREADED STEM WITH M13 WRENCH FLATS
- NBR ANTI-SLIP PAD
- MATERIAL: BLACK NYLON BASE
TECHNICAL
- +/- 15 DEG MOVEMENT
- 17,000 N STATIC LOAD
INFO

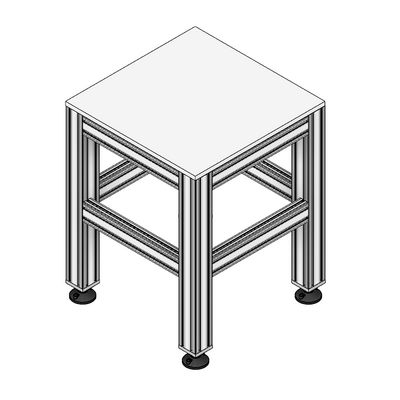

- LEVELING OF GUARDING OR WORKBENCH
- 1 1/2 IN OF HEIGHT ADJUSTMENT

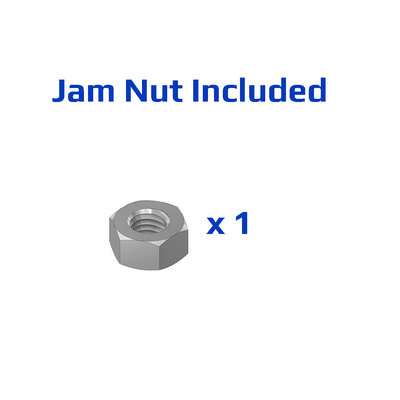

- INCLUDES JAM NUT AND ANTI SLIP PAD
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| PAD DIAMETER | 100 MM |
| THREAD SIZE | M16 |
Documents
×
