Item # 30-M8D40-1

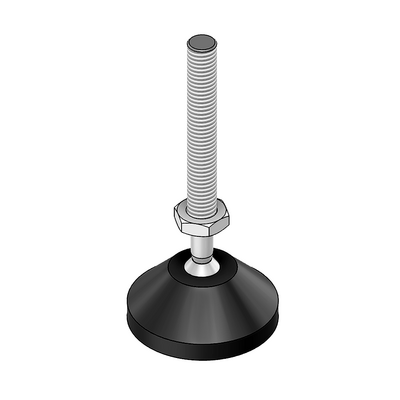

MODULAR SOLUTIONS PLASTIC FOOT
40MM PAD, M8 THREAD W/ JAM NUT
Click image to enlarge
Item # 30-M8D40-1
MODULAR SOLUTIONS PLASTIC FOOT
40MM PAD, M8 THREAD W/ JAM NUT
- UM: EA
MODULAR SOLUTIONS PLASTIC FOOT-40MM PAD, M8 THREAD W/ JAM NUT
- FOOT PAD 40MM X M8
- M8 THREAD STEM WITH M6 WRENCH FLATS
- NBR ANTI-SLIP PAD
- MATERIAL: BLACK NYLON BASE
TECHNICAL
- WEIGHT: 0.22 LBS. / 0.1 KG.
- +/- 15 DEG MOVEMENT
- 17,000 N STATIC LOAD
INFO

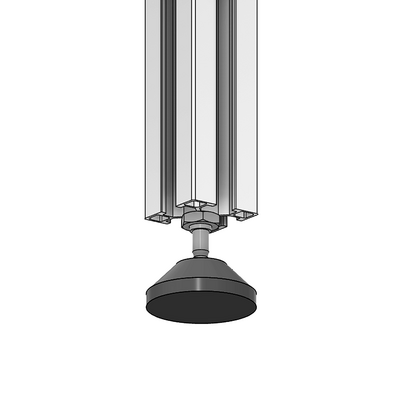

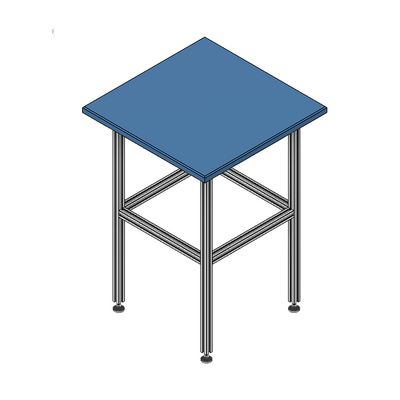

- LEVELING OF GUARDING OR WORKBENCH
- 1 1/2 IN OF HEIGHT ADJUSTMENT

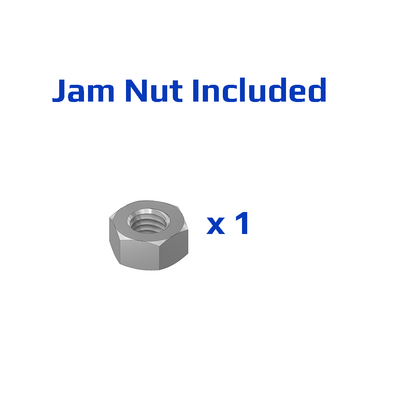

- INCLUDES JAM NUT AND ANTI SLIP PAD
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| PAD DIAMETER | 40 MM |
| THREAD SIZE | M8 |
