Item # 30-M8D80-1

MODULAR SOLUTIONS PLASTIC FOOT
80MM PAD, M8 STEM W/ JAM NUT

$7.43 / EA

  • Qty Available: 24.00
  • Log in to see if custom discounts apply
30-M8D80-1 MODULAR SOLUTIONS PLASTIC FOOT<br>80MM PAD, M8 STEM W/ JAM NUT
30-M8D80-1 MODULAR SOLUTIONS PLASTIC FOOT<br>80MM PAD, M8 STEM W/ JAM NUT
30-M8D80-1 MODULAR SOLUTIONS PLASTIC FOOT<br>80MM PAD, M8 STEM W/ JAM NUT
Click image to enlarge
30-M8D80-1 MODULAR SOLUTIONS PLASTIC FOOT<br>80MM PAD, M8 STEM W/ JAM NUT
30-M8D80-1 MODULAR SOLUTIONS PLASTIC FOOT<br>80MM PAD, M8 STEM W/ JAM NUT
30-M8D80-1 MODULAR SOLUTIONS PLASTIC FOOT<br>80MM PAD, M8 STEM W/ JAM NUT

Item # 30-M8D80-1

MODULAR SOLUTIONS PLASTIC FOOT
80MM PAD, M8 STEM W/ JAM NUT

  • UM : EA

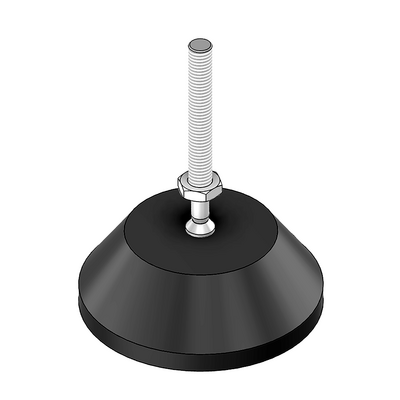

MODULAR SOLUTIONS PLASTIC FOOT-80MM PAD, M8 THREAD W/ JAM NUT

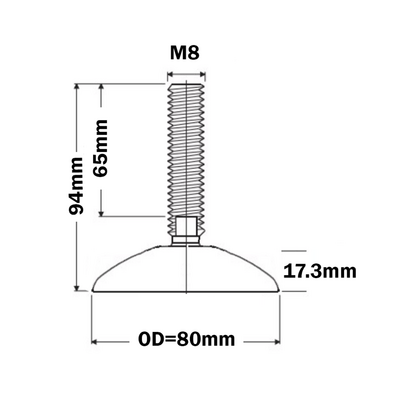

  • FOOT PAD 80MM X M8
  • M8 THREAD STEM WITH M6 WRENCH FLATS
  • NBR ANTI-SLIP PAD
  • MATERIAL: BLACK NYLON BASE

TECHNICAL

  • WEIGHT: 0.67 LBS. / 0.3 KG.
  • +/- 15 DEG MOVEMENT
  • 11,000 N STATIC LOAD

INFO

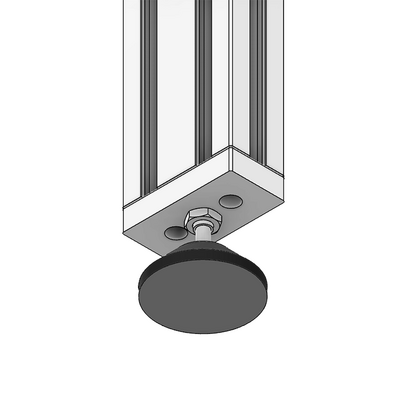

  • LEVELING OF GUARDING OR WORKBENCH
  • 1 1/2 IN OF HEIGHT ADJUSTMENT
  • INCLUDES JAM NUT AND ANTI SLIP PAD

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

Specifications

PAD DIAMETER 80 MM
THREAD SIZE M8
