Item # 33-45903S-7

MODULAR SOLUTIONS FOOT

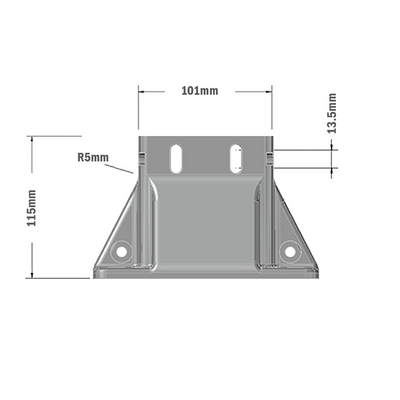

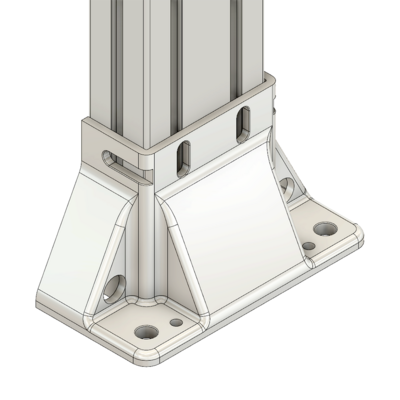

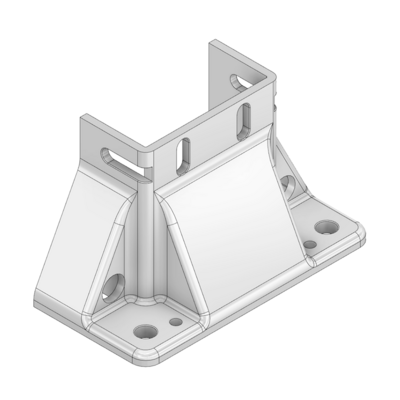

45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM

  • $32.89 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 1.75

MODULAR SOLUTIONS FOOT-45MM X 90MM THREE SIDED W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM W/ HARDWARE

  • MOUNTING FOOT 3 SIDED FOR 45 X 90
  • PARTICALLY ENCLOSED AND SHORT
  • METALIC IN COLOR
  • MATERIAL: CAST ALUMINUM

TECHNICAL

  • WITH 12MM FLOOR ANCHOR HOLES
  • HEIGHT - 105MM WITH UP TO 40MM OF HEIGHT ADJUST
  • WORKS WITH 3/8 IN X 3 IN WEDGE ANCHOR 24-383-0

INFO

  • WORKS WELL WITH PROFILES 10-4590
  • HARDWARE INCLUDED

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
Click image to enlarge
33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM

Specifications

SIZE 45 X 90
MOUNT 3 MOUNTING SIDES
FEATURE PARTICALLY ENCLOSED & SHORT
HARDWARE STANDARD HARDWARE

Item # 33-45903S-7

MODULAR SOLUTIONS FOOT
45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM

  • $32.89 / EA
    • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA
    • Log in to see if custom discounts apply

    Documents

    33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
    33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
    33-45903S-7 MODULAR SOLUTIONS FOOT<br>45MM X 90MM (3) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
