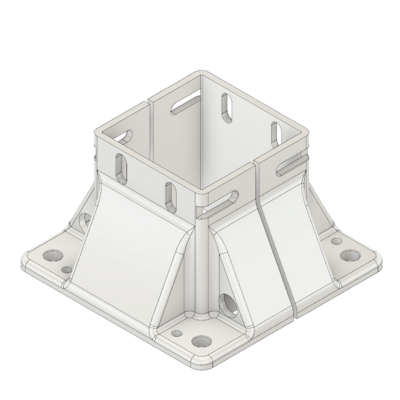

Item # 33-9090-7

MODULAR SOLUTIONS FOOT
90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM

  • $70.22 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 2.65

MODULAR SOLUTIONS FOOT-90MM X 90MM FOUR SIDED W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM W/ HARDWARE

  • MOUNTING FOOT 4 SIDED FOR 90 X 90
  • FULLY ENCLOSED AND SHORT
  • METALIC IN COLOR
  • MATERIAL: CAST ALUMINUM

TECHNICAL

  • WITH 12MM FLOOR ANCHOR HOLES
  • HEIGHT - 105MM WITH UP TO 40MM OF HEIGHT ADJUST
  • WORK WITH 1/2 IN X 3 3/4 IN WEDGE ANCHOR 24-123-0

INFO

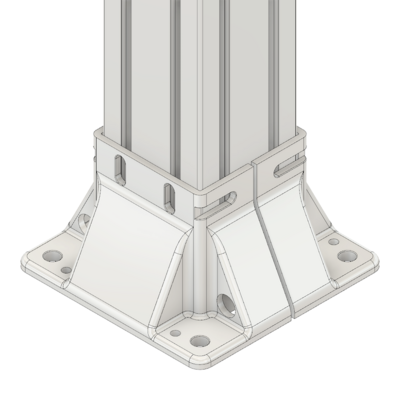

  • WORKS WELL WITH PROFILES 10-9090
  • INCLUDES FASTENING KIT TO PROFILE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
Click image to enlarge
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM

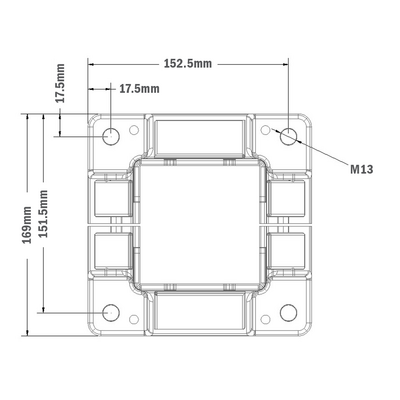

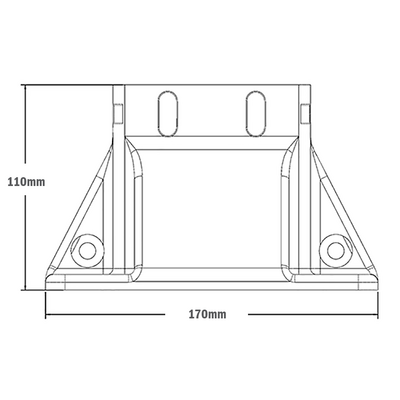

Specifications

SIZE 90 X 90
MOUNT 4 MOUNTING SIDES
FEATURE FULLY ENCLOSED & SHORT
HARDWARE STANDARD HARDWARE

Item # 33-9090-7

MODULAR SOLUTIONS FOOT
90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM

  • $70.22 / EA
    • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA
    • Log in to see if custom discounts apply

    Documents

    33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
    33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
    33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
    33-9090-7 MODULAR SOLUTIONS FOOT<br>90MM X 90MM (4) SIDED FOOT W/12MM FLOOR ANCHOR HOLES, HEIGHT = 105MM
