Item # 34-030-3

MODULAR SOLUTIONS SUPPORT ANGLE BRACKET
30 SERIES FLOOR FASTENING W/ HARDWARE

  • $9.90 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 0.25

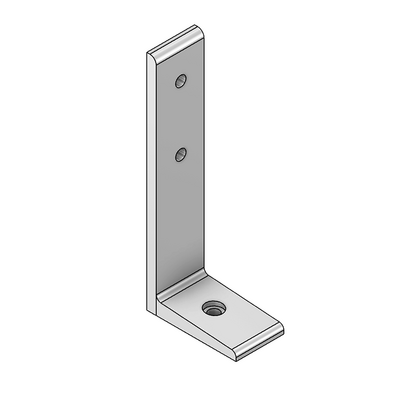

MODULAR SOLUTIONS SUPPORT ANGLE BRACKET-30 SERIES FLOOR FASTENING W/ HARDWARE

  • FLOOR FASTENING BRACKET 140
  • 30MM WIDE X 140MM TALL
  • CLEAR COAT ANODIZED
  • MATERIAL: ALUMINUM

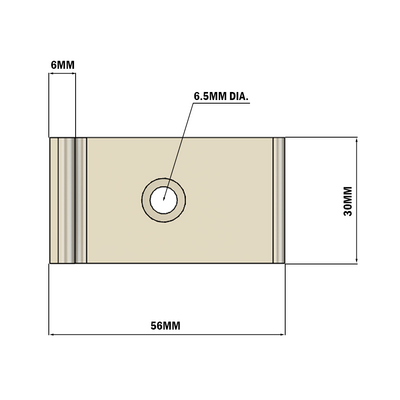

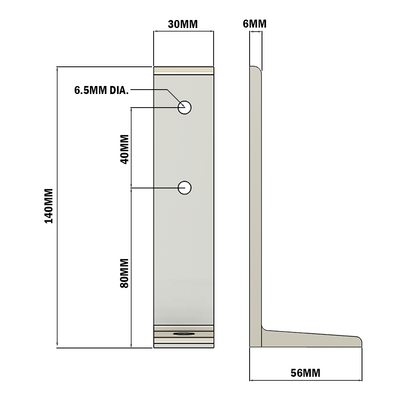

TECHNICAL

  • WEIGHT: 0.08 LBS. / 0.04 KG.
  • 8.5MM ANCHOR THROUGH HOLE
  • HEIGHT - 140MM
  • WORKS WITH 3/8 IN X 3 IN WEDGE ANCHOR 24-383-0

INFO

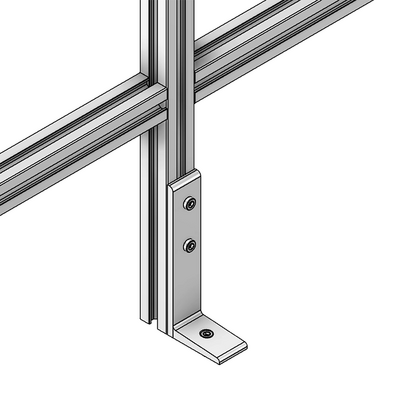

  • INCLUDES FASTENING KIT TO PROFILE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
Click image to enlarge
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE

Specifications

HARDWARE STANDARD HARDWARE
HARDWARE INCLUDED

Item # 34-030-3

MODULAR SOLUTIONS SUPPORT ANGLE BRACKET
30 SERIES FLOOR FASTENING W/ HARDWARE

  • $9.90 / EA
    • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA
    • Log in to see if custom discounts apply

    Documents

    34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
    34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
    34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
    34-030-3 MODULAR SOLUTIONS SUPPORT ANGLE BRACKET<BR>30 SERIES FLOOR FASTENING W/ HARDWARE
