Item # 3V110M5NCC

AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID
3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN

  • $20.13 / EA
  • Manufacturer: AIRTAC
  • UM: EA

AIRTAC 3V100 SERIES - SOLENOID VALVES

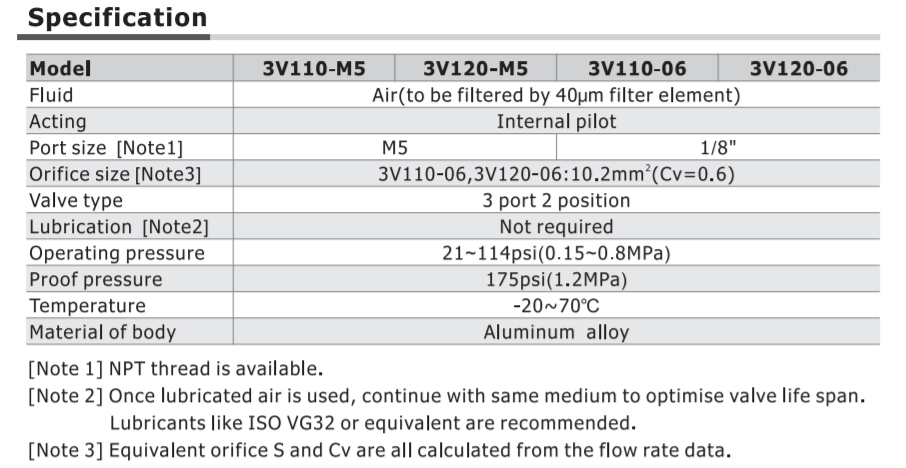

SPECIFICATIONS
MODEL #:
3V110-M5, 3V120-M5,
3V110-06 & 3V120-06
VALVE TYPE:
3 PORT 2 POSITION
PORT TYPE:
M5: 3V110-M5 & 3V120-M5
1/8": 3V110-06 & 3V120-06
FLOW:
3V110-M5:
CV: 0.31
3V120-M5:
CV: 0.31
3V110-06:
CV: 0.67
3V120-06:
CV: 0.67
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C
POWER CONSUMPTION:
AC: 2.5VA
DC: 2.5W


FEATURES
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THE DOUBLE AIR CONTROL VALVE OFFERS MEMORY FUNCTIONALITY.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE
NO NEED TO ADD OIL FOR LUBRICATION.
VALVE INCLUDES MANUAL OVERRIDE TO FACILITATE INSTALLATION AND DEBUGGING.
SEVERAL STANDARD VOLTAGE GRADES ARE AVAILABLE.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
Click image to enlarge
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN
3V110M5NCC AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN

Specifications

PORT SIZE SMALL BODY SOLENOID VALVES
PORT TYPE M5
CONTROL FUNCTION SINGLE SOLENOID

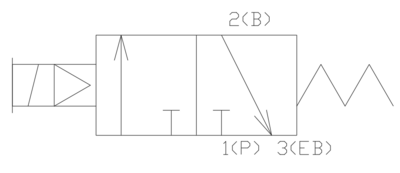

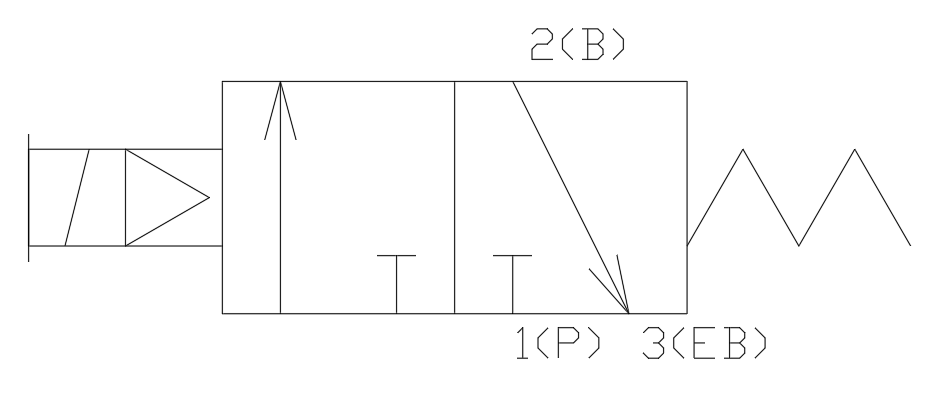

VALVE FUNCTION 3 WAY 2 POSITION N.C.
VOLTAGE 110 VAC
DIN
SERIES AIRTAC 3V1 SERIES

Item # 3V110M5NCC

AIRTAC CONTROL VALVE, 3V1 18MM WIDE SERIES, SINGLE SOLENOID
3 WAY 2 POSITION N.C. 110 VAC, M5M5, DIN

  • $20.13 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply
