Item # 3V31008NCFT

AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID
3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN

  • $29.10 / EA
  • Manufacturer: AIRTAC
  • UM: EA

AIRTAC 3V300 SERIES - SOLENOID VALVES

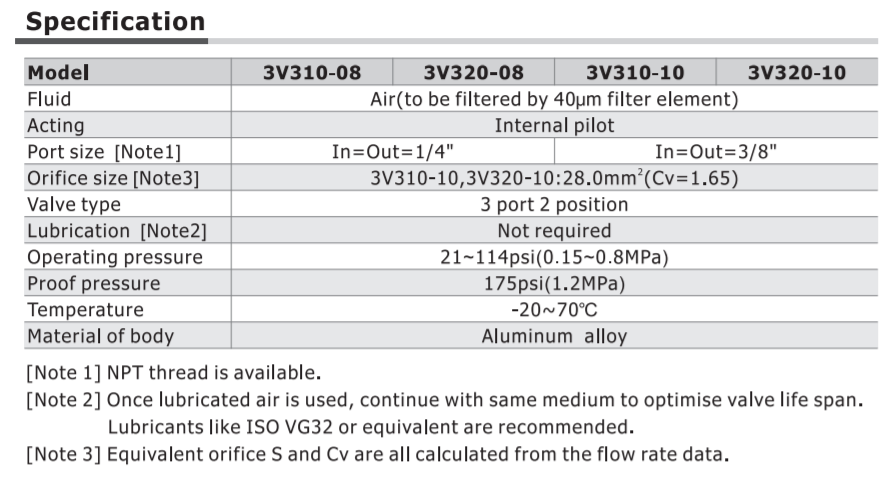

SPECIFICATIONS
MODEL #:
3V310-08, 3V320-08,
3V310-10 & 3V320-10
VALVE TYPE:
3 PORT 2 POSITION
PORT TYPE:
1/4": 3V310-08 & 3V320-08
3/8": 3V310-10 & 3V320-10
FLOW:
3V310-08:
CV: 1.39
3V320-08:
CV:1.39
3V310-10:
CV: 1.67
3V320-10:
CV: 1.67
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C
POWER CONSUMPTION:
AC: 3.5VA
DC: 3.0W


FEATURES
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THE DOUBLE AIR CONTROL VALVE OFFERS MEMORY FUNCTIONALITY.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE
NO NEED TO ADD OIL FOR LUBRICATION.
MULTIPLE MOUNTING HOLES OFFER AN EASY AND ADAPTABLE INSTALL AND APPLICATION.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
Click image to enlarge
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN
3V31008NCFT AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID<BR>3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN

Specifications

PORT SIZE LARGE BODY SOLENOID VALVES
PORT TYPE NPT
CONTROL FUNCTION SINGLE SOLENOID
VALVE FUNCTION 3 WAY 2 POSITION N.C.
VOLTAGE 12 VDC
DIN
SERIES AIRTAC 3V3 SERIES

Item # 3V31008NCFT

AIRTAC CONTROL VALVE, 3V3 SERIES, SINGLE SOLENOID
3 WAY 2 POSITION N.C. 12 VDC, 1/4"NPT, DIN

  • $29.10 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply
