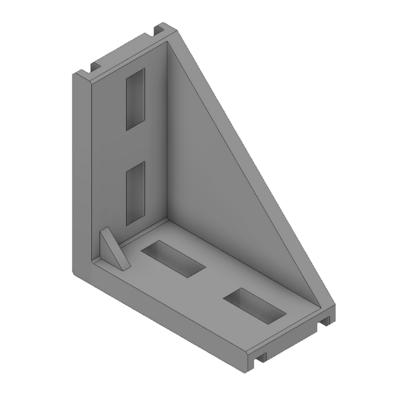

MODULAR SOLUTIONS ALUMINUM GUSSET-45MM X 90MM ANGLE

• GUSSET BRACKET 45 X 90
• REINFORCEMENT ANGLE
• PAINTED GRAY
• MATERIAL: CAST ALUMINUM

TECHNICAL

• SLOTTED HOLE FOR M8 BOLT
• CAN BE CLOSED WITH COVER CAP PART 40-220-0
• ANTI ROTATE FOR 8MM T SLOT
• HARDWARE IS NOT INCLUDED

INFO

• WORKS WELL WITH 10-4545 & 10-4590 PROFILES

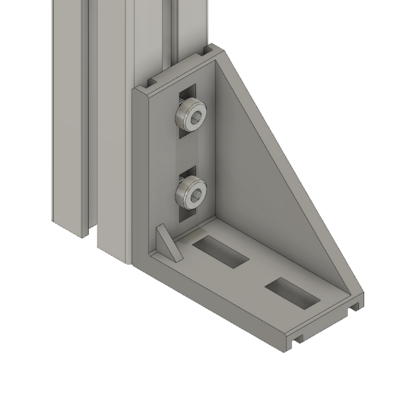

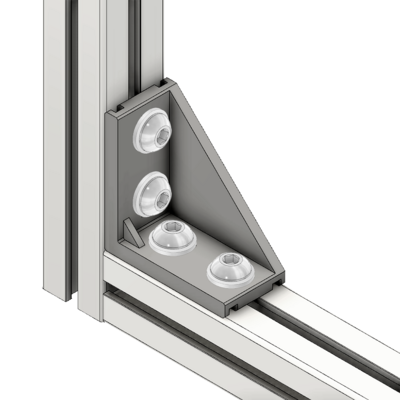

• CONNECTING PROFILES AT RIGHT ANGLES
