Item # 40-150-0

MODULAR SOLUTIONS ALUMINUM GUSSET
30MM X 60MM ANGLE WITH OUT HARDWARE

  • $2.86 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 0.10

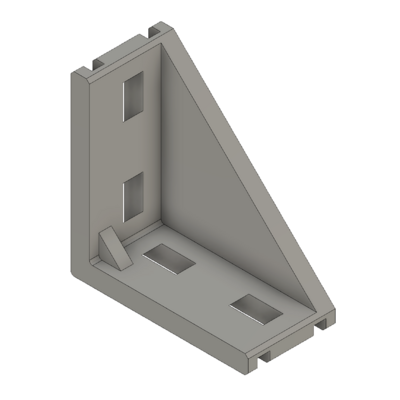

MODULAR SOLUTIONS ALUMINUM GUSSET-30MM X 60MM ANGLE

  • GUSSET BRACKET 30 X 60
  • REINFORCEMENT ANGLE
  • PAINTED GRAY
  • MATERIAL: CAST ALUMINUM

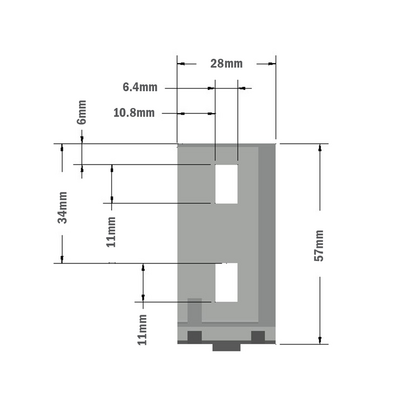

TECHNICAL

  • SLOTTED HOLE FOR M8 BOLT
  • THIS BRACKET CAN BE CLOSED WITH COVER CAP 40-250-0
  • ANTI ROTATE FOR 8MM T SLOT
  • NO HARDWARE

INFO

  • WORKS WELL WITH 10-4545 & 10-4590 PROFILES

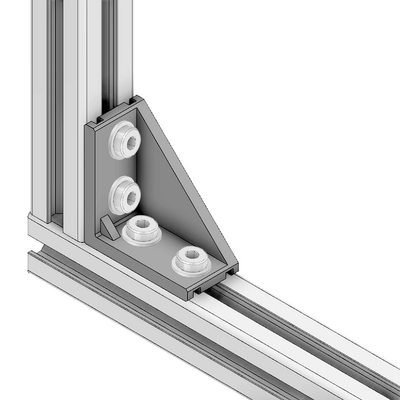

  • CONNECTING PROFILES AT RIGHT ANGLES

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
Click image to enlarge
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE

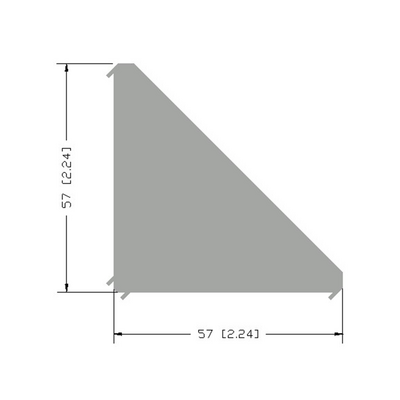

Specifications

30 X 60
NO HARDWARE

Item # 40-150-0

MODULAR SOLUTIONS ALUMINUM GUSSET
30MM X 60MM ANGLE WITH OUT HARDWARE

  • $2.86 / EA
    • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA
    • Log in to see if custom discounts apply

    Documents

    40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
    40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
    40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
    40-150-0 MODULAR SOLUTIONS ALUMINUM GUSSET<br>30MM X 60MM ANGLE WITH OUT HARDWARE
