Item # 41D-115-0

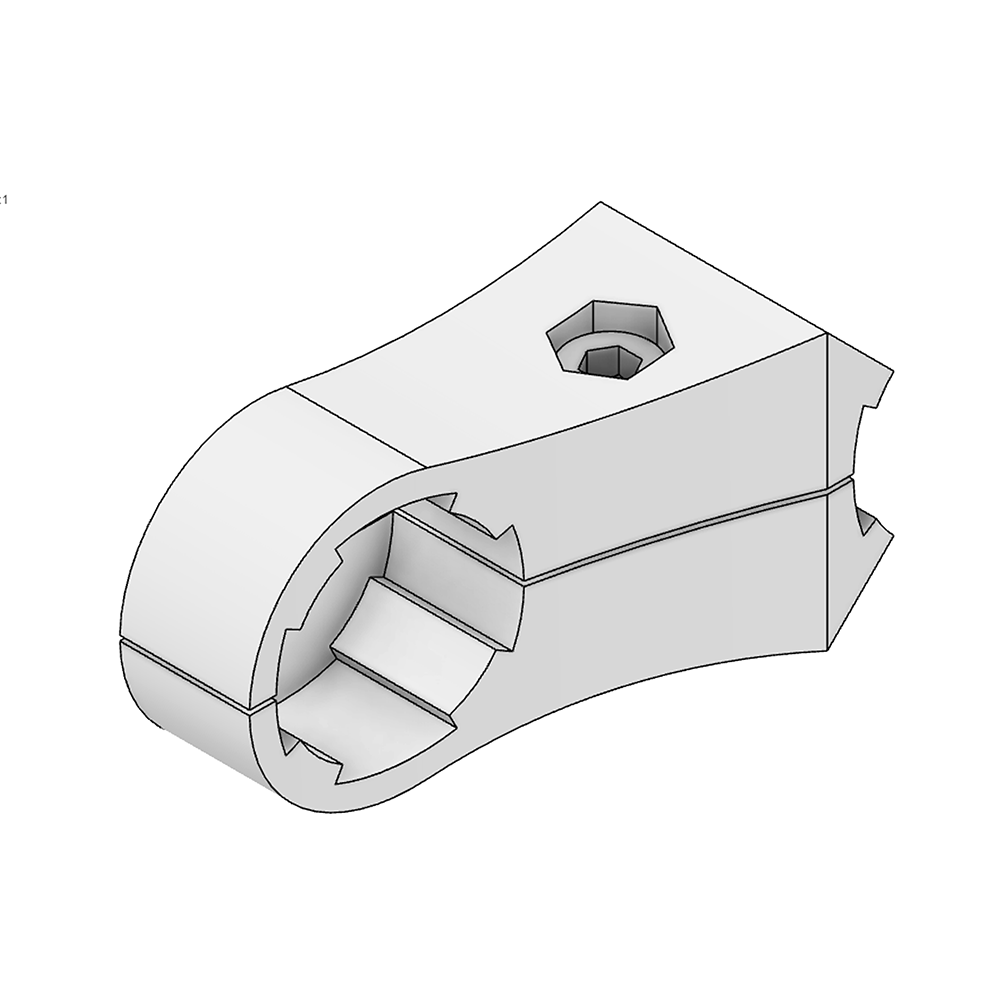

MODULAR SOLUTION D28 CONNECTOR
CONNECTOR SHAFT TO RIDGE STRAIGHT

  • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA

$2.75 / EA

    • Log in to see if custom discounts apply
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    41D-115-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO RIDGE STRAIGHT
    Click image to enlarge

    Item # 41D-115-0

    MODULAR SOLUTION D28 CONNECTOR
    CONNECTOR SHAFT TO RIDGE STRAIGHT

    • UM: EA

    MODULAR SOLUTION D28 CONNECTOR-CONNECTOR SHAFT TO RIDGE STRAIGHT

    • CONNECTOR SHAFT TO RIDGE STRAIGHT
    • SLIDES OVER THE D28 SHAFT TO CONNECT
    • COLOR CLEAR COAT ANODIZATION
    • MATERIAL: CAST ALUMINUM

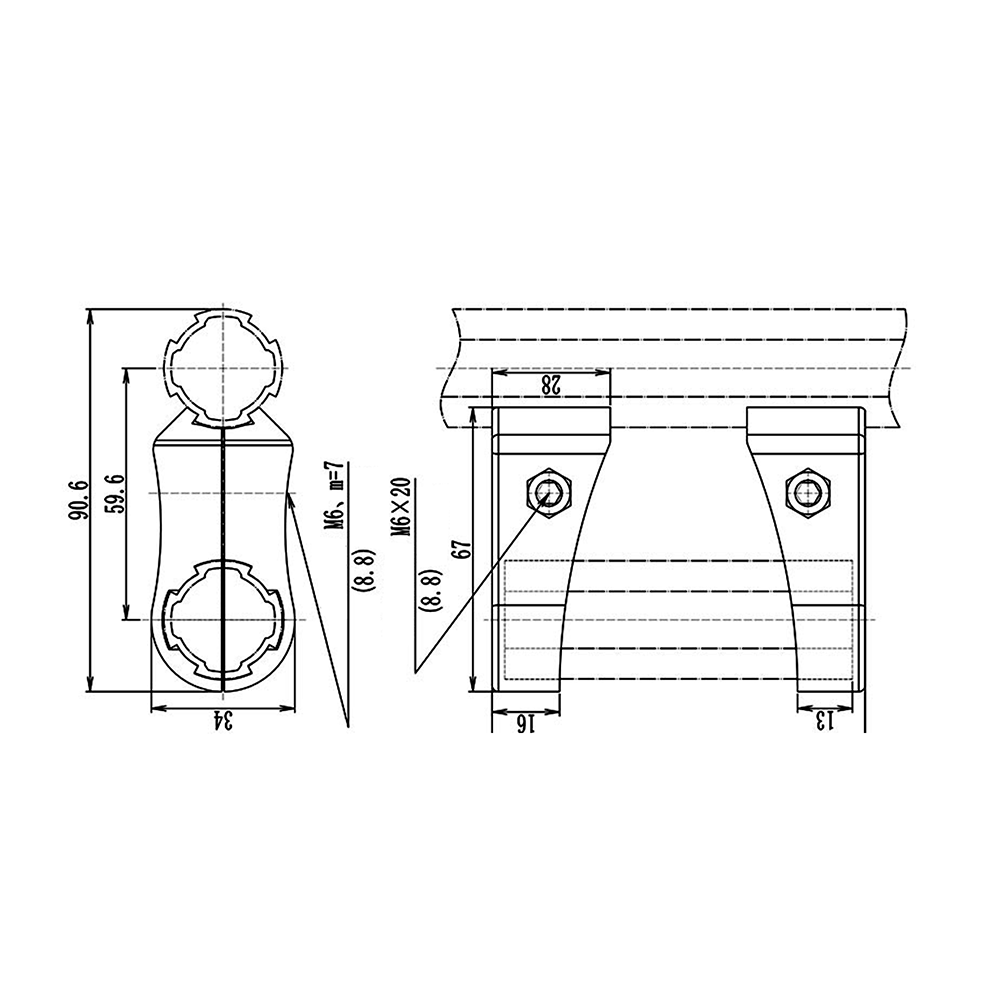

    TECHNICAL

    • WEIGHT: 2.15 LBS. / 0.98 KG.
    • CONNECTS ON EXTERNAL RIDGE OF D28 TUBE
    • COMES WITH CLAMPING HARDWARE

    INFO

    • WORKS WITH 10-D28-0, AND 10-28H-0

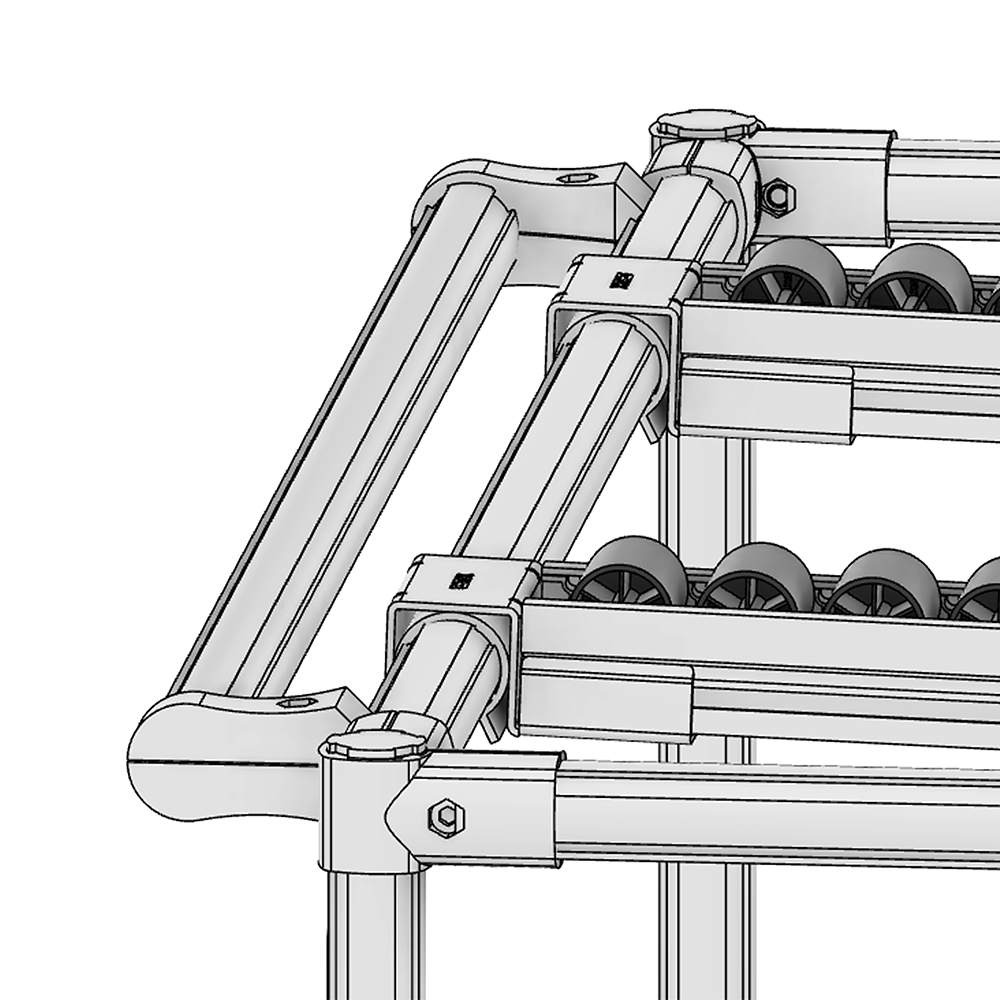

    • CONNECTS D28 PROFILE TO ANOTHER AT A RIGHT ANGLE

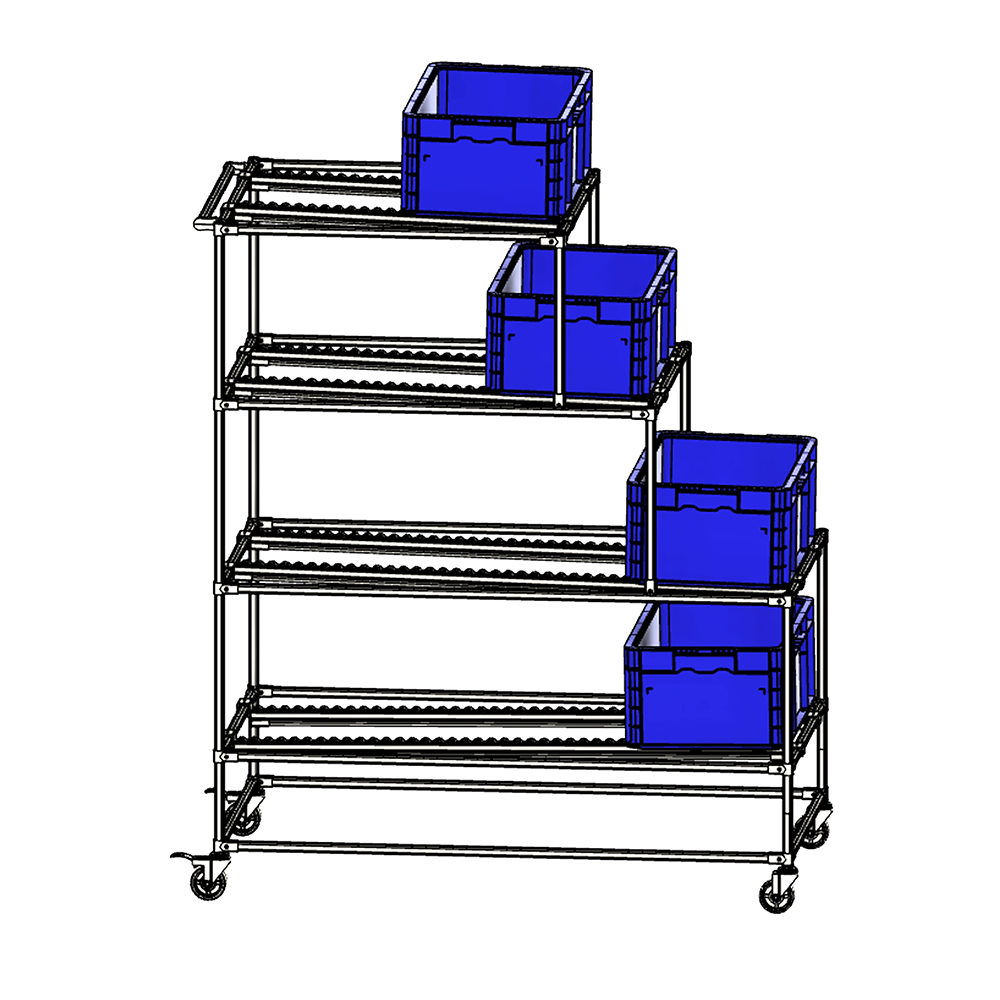

    • GOOD FOR MID BAR CONNECTIONS

    NOT FINDING WHAT YOU NEED?
    SEND US AN E-MAIL:

    SALES@THEPNEUMATICSTORE.COM

    Specifications

    TYPE SHAFT TO RIDGE CONNECTOR
