Item # 41D-142-0

MODULAR SOLUTION D28 CONNECTOR
CONNECTOR 135 DEGREE END TO END INNER TYPE

  • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA

$2.75 / EA

    • Log in to see if custom discounts apply
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    41D-142-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR 135 DEGREE END TO END INNER TYPE
    Click image to enlarge

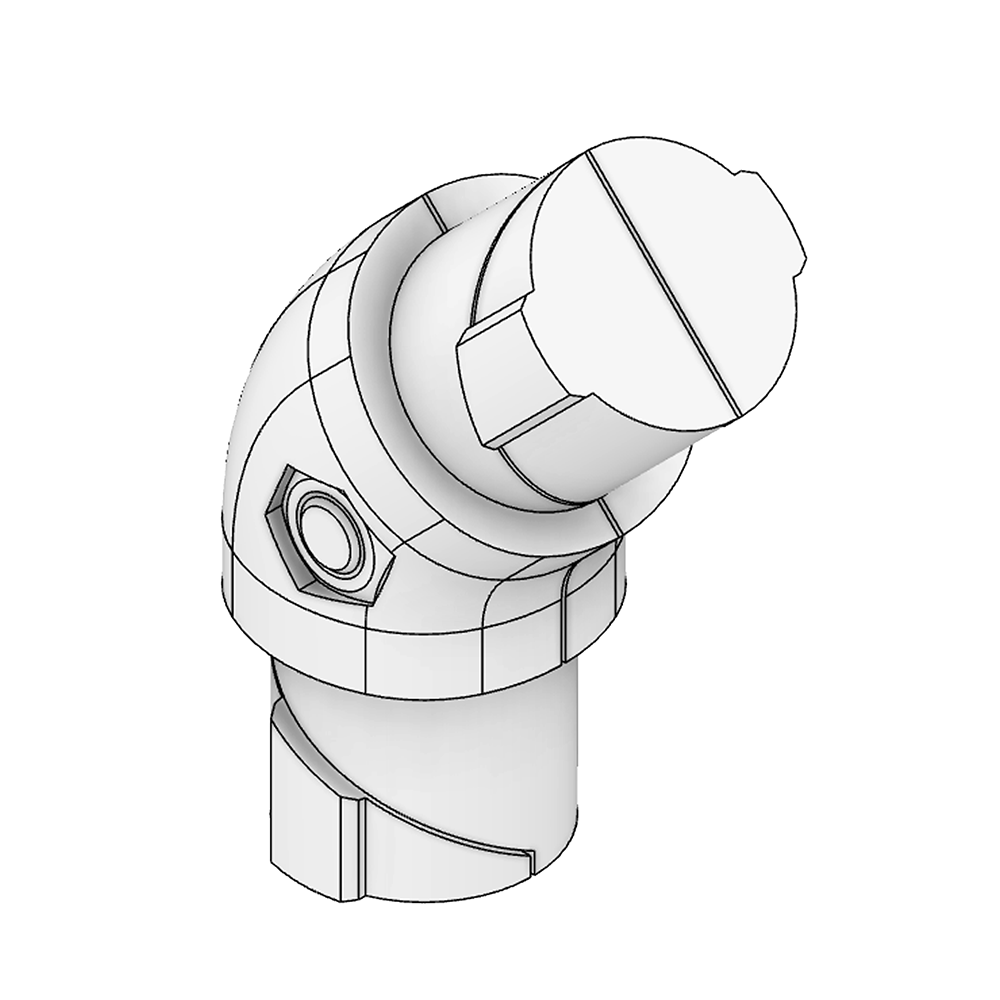

    Item # 41D-142-0

    MODULAR SOLUTION D28 CONNECTOR
    CONNECTOR 135 DEGREE END TO END INNER TYPE

    • UM: EA

    MODULAR SOLUTION D28 CONNECTOR-CONNECTOR 135 DEGREE END TO END INNER TYPE

    • CONNECTOR 135 DEGREE END TO END INNER TYPE
    • CONNECTS ON THE INTERNAL BODY OF THE D28 TUBE
    • COLOR CLEAR COAT ANODIZATION
    • MATERIAL: CAST ALUMINUM

    TECHNICAL

    • WEIGHT: 0.1 LBS. / 0.05 KG.
    • CONNECTS ON END OF D28 PROFILE INTERNALLY
    • COMES WITH CLAMPING HARDWARE

    INFO

    • WORKS WITH 10-D28-0, AND 10-28R-0

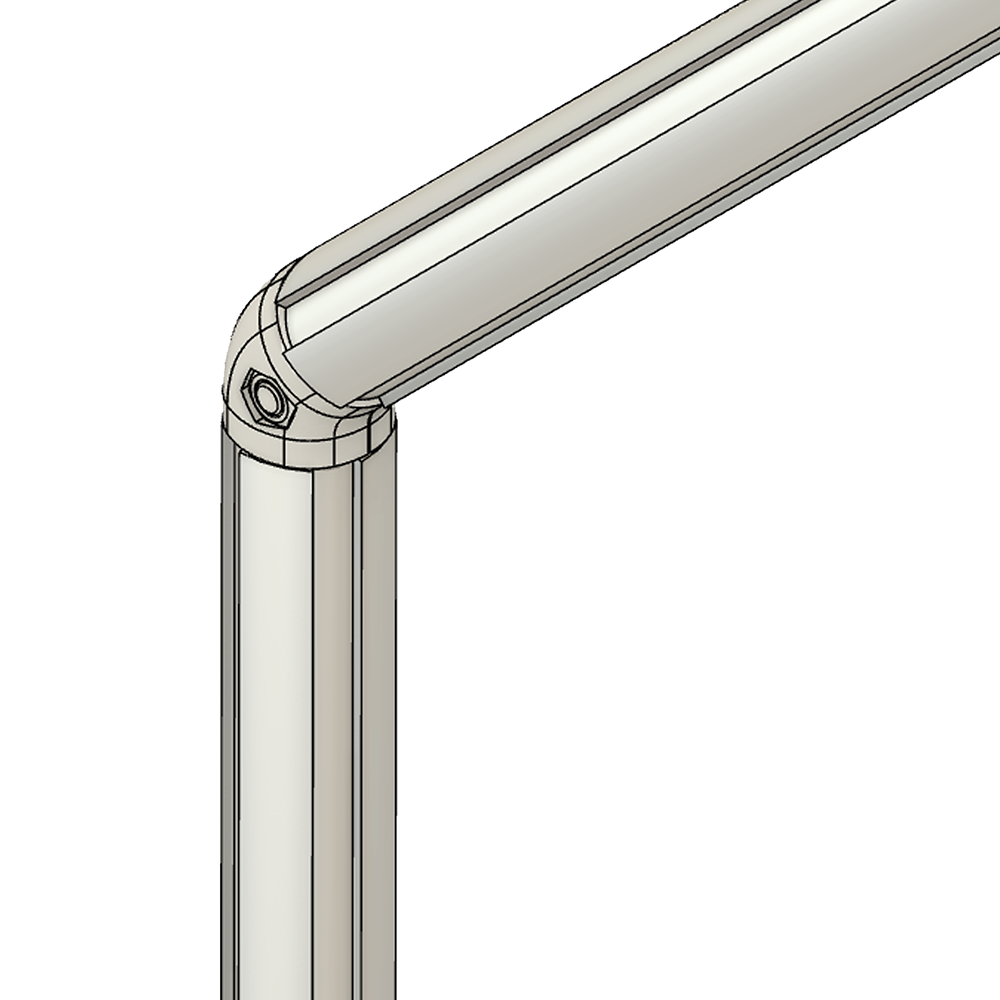

    • CONNECTS D28 PROFILE TO ANOTHER AT 135 DEG ANGLE
    • GOOD FOR CORNER CONNECTIONS

    NOT FINDING WHAT YOU NEED?
    SEND US AN E-MAIL:
    SALES@THEPNEUMATICSTORE.COM

    Specifications

    TYPE INTERNAL END CONNECTOR
