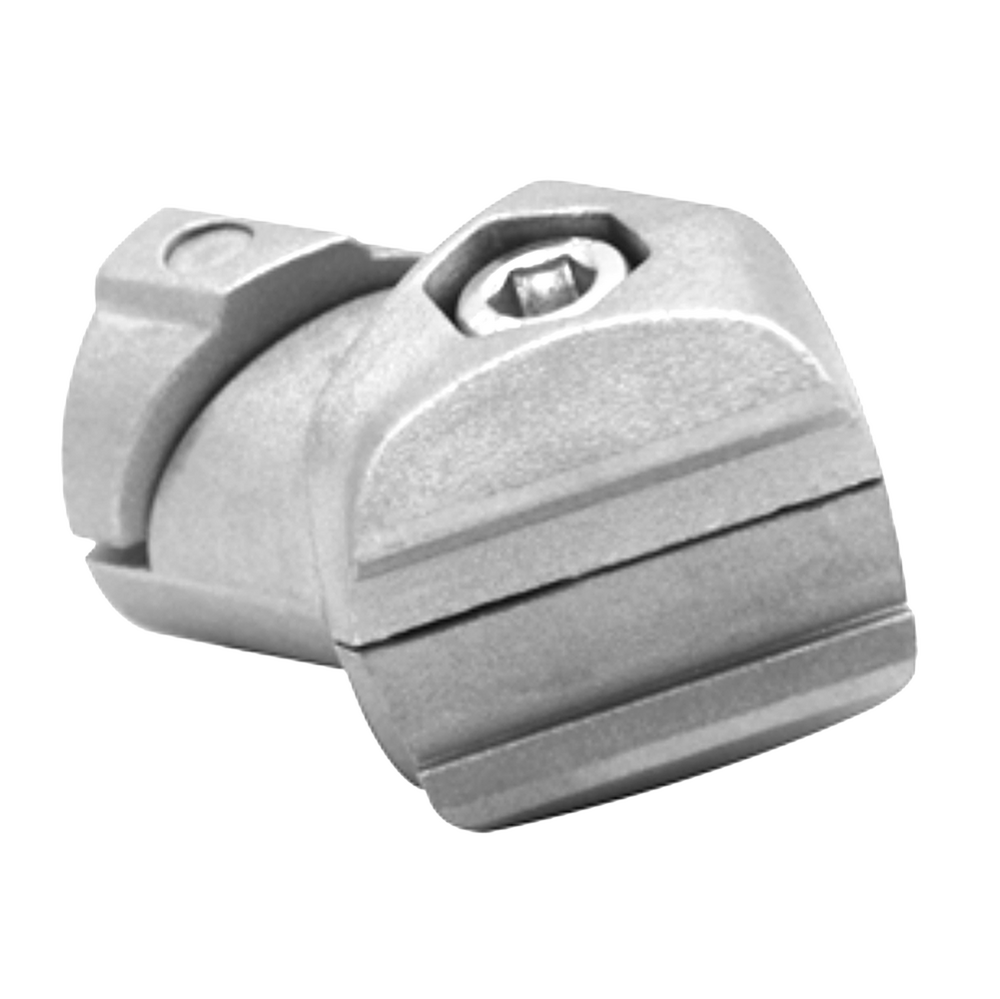

Item # 41D-145-0

MODULAR SOLUTION D28 CONNECTOR
CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE

$1.43 / EA

  • Qty Available: 241.00
  • Log in to see if custom discounts apply
41D-145-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
41D-145-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
41D-145-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
41D-145-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
41D-145-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
41D-145-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
Click image to enlarge

Item # 41D-145-0

MODULAR SOLUTION D28 CONNECTOR
CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE

  • UM : EA

MODULAR SOLUTION D28 CONNECTOR-CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE

  • CONNECTOR INTERNAL END TO RIDGE MOUNT 45 DEGREE
  • SLIDES OVER THE D28 SHAFT TO CONNECT
  • COLOR CLEAR COAT ANODIZATION
  • MATERIAL: CAST ALUMINUM

TECHNICAL

  • WEIGHT: 0.1 LBS. / 0.05 KG.
  • CONNECTS ON END OF D28 PROFILE EXTERNALLY
  • COMES WITH CLAMPING HARDWARE

INFO

  • WORKS WITH 10-D28-0, AND 10-28R-0

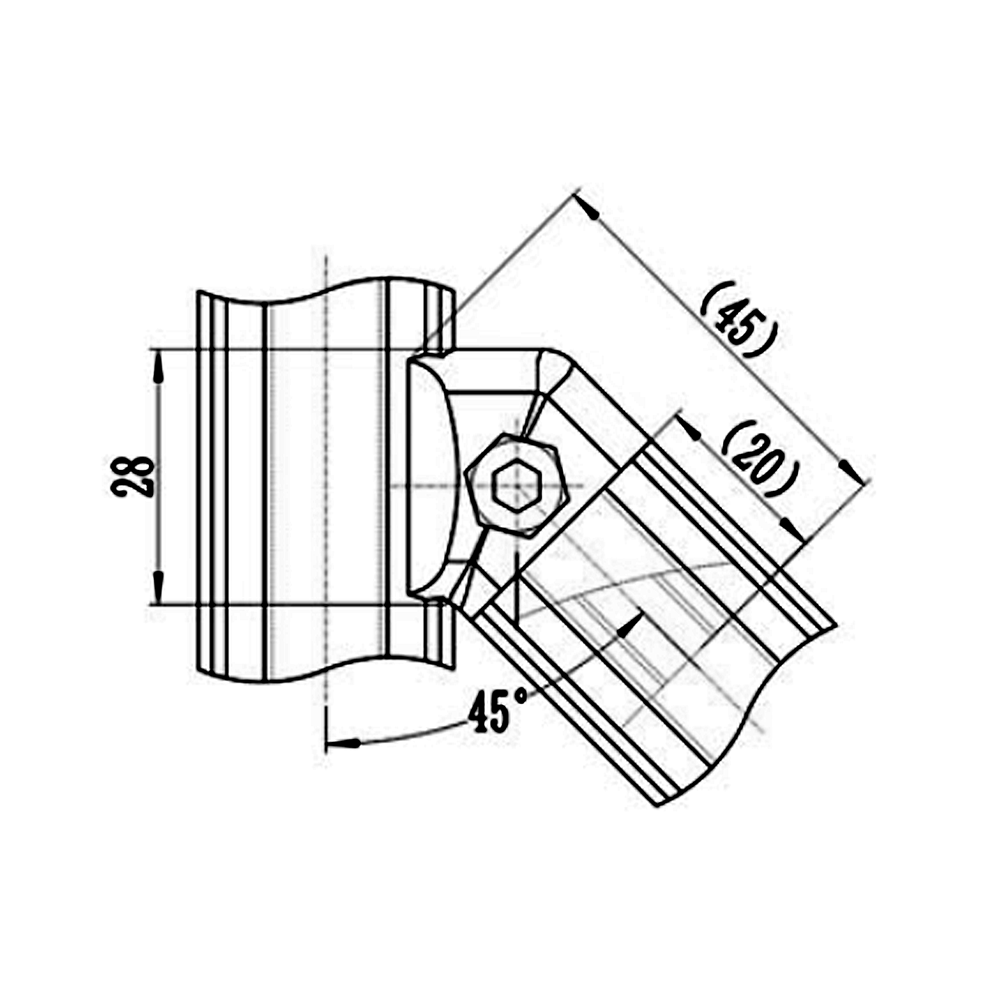

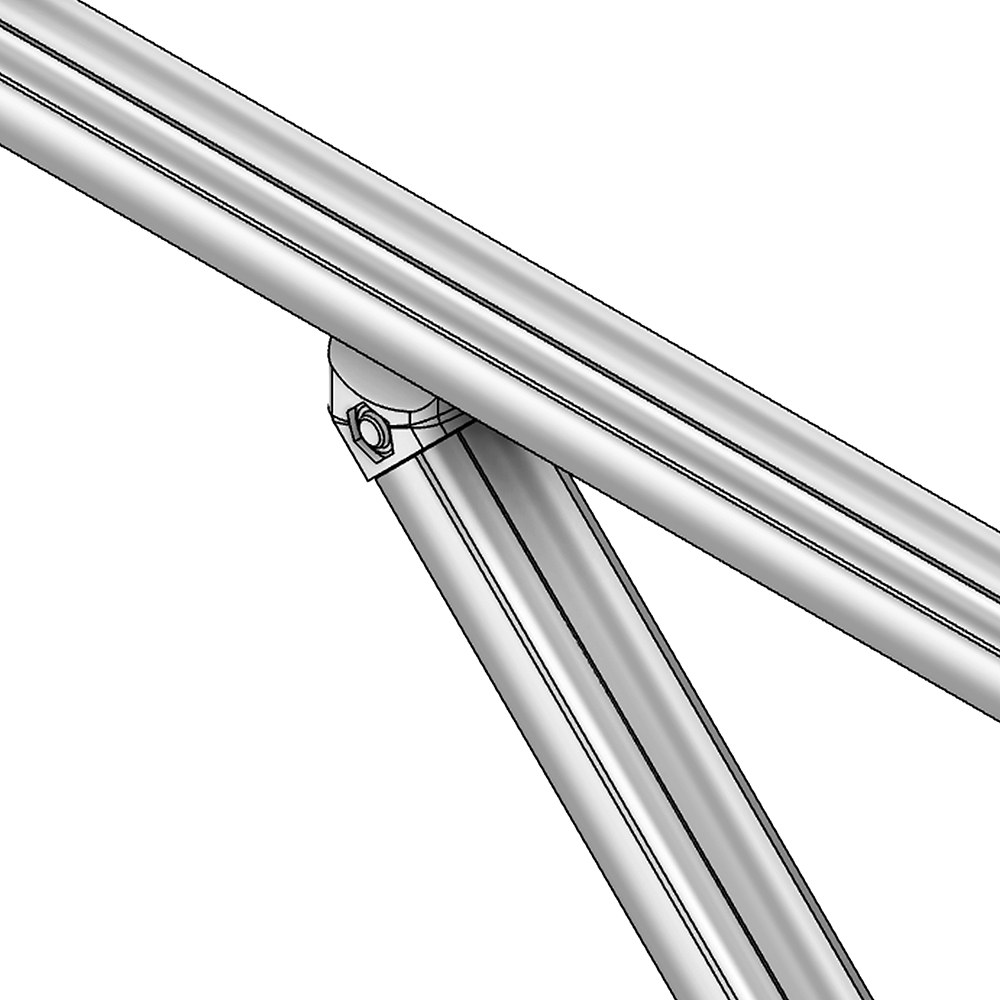

  • CONNECTS D28 PROFILE TO ANOTHER AT A 45 DEG ANGLE
  • GOOD FOR MID BAR CONNECTIONS

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

Specifications

TYPE SHAFT TO END CONNECTOR
