Item # 41D-160-0

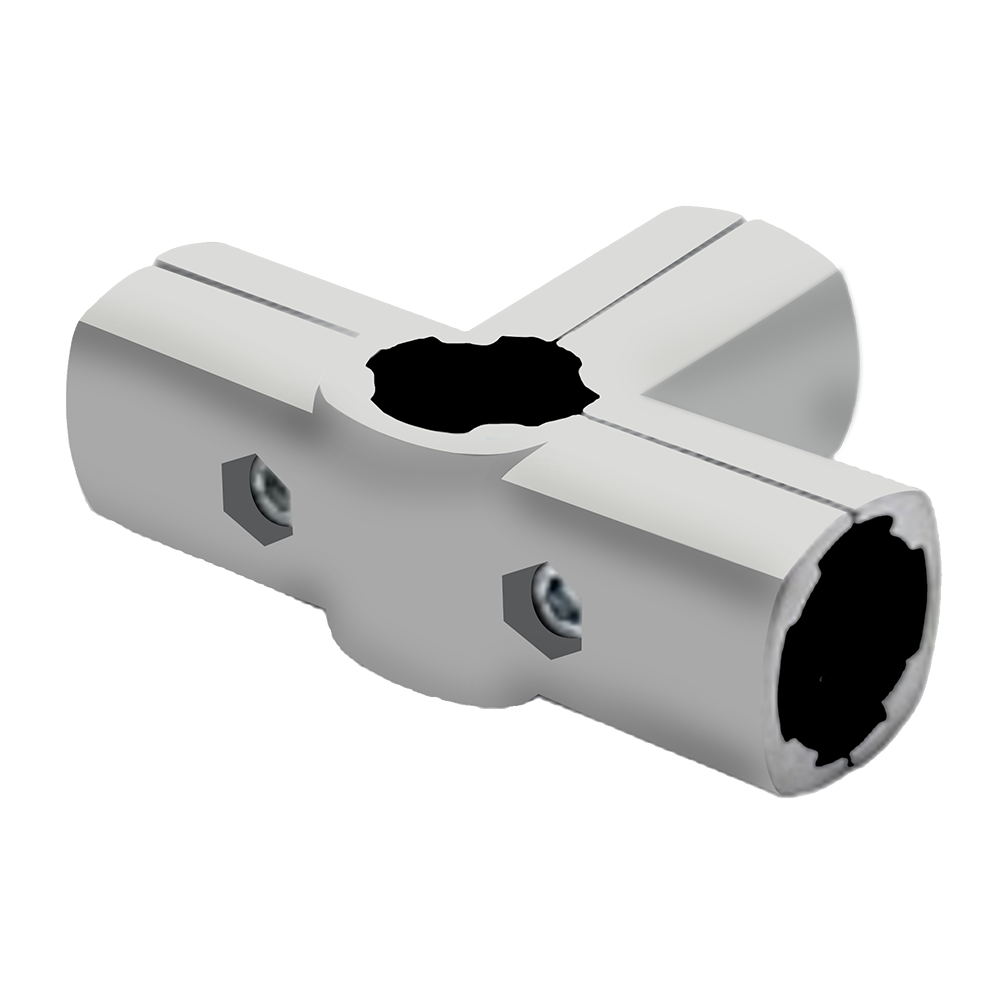

MODULAR SOLUTION D28 CONNECTOR
CONNECTOR SHAFT TO TRIPPLE END TEE

  • $4.35 / EA
  • Manufacturer: MODULAR SOLUTIONS
  • UM: EA
  • Weight: 0.35

MODULAR SOLUTION D28 CONNECTOR-CONNECTOR SHAFT TO TRIPPLE END TEE

  • CONNECTOR SHAFT TO TRIPPLE END TEE
  • SLIDES OVER THE D28 SHAFT TO CONNECT
  • COLOR CLEAR COAT ANODIZATION
  • MATERIAL: CAST ALUMINUM

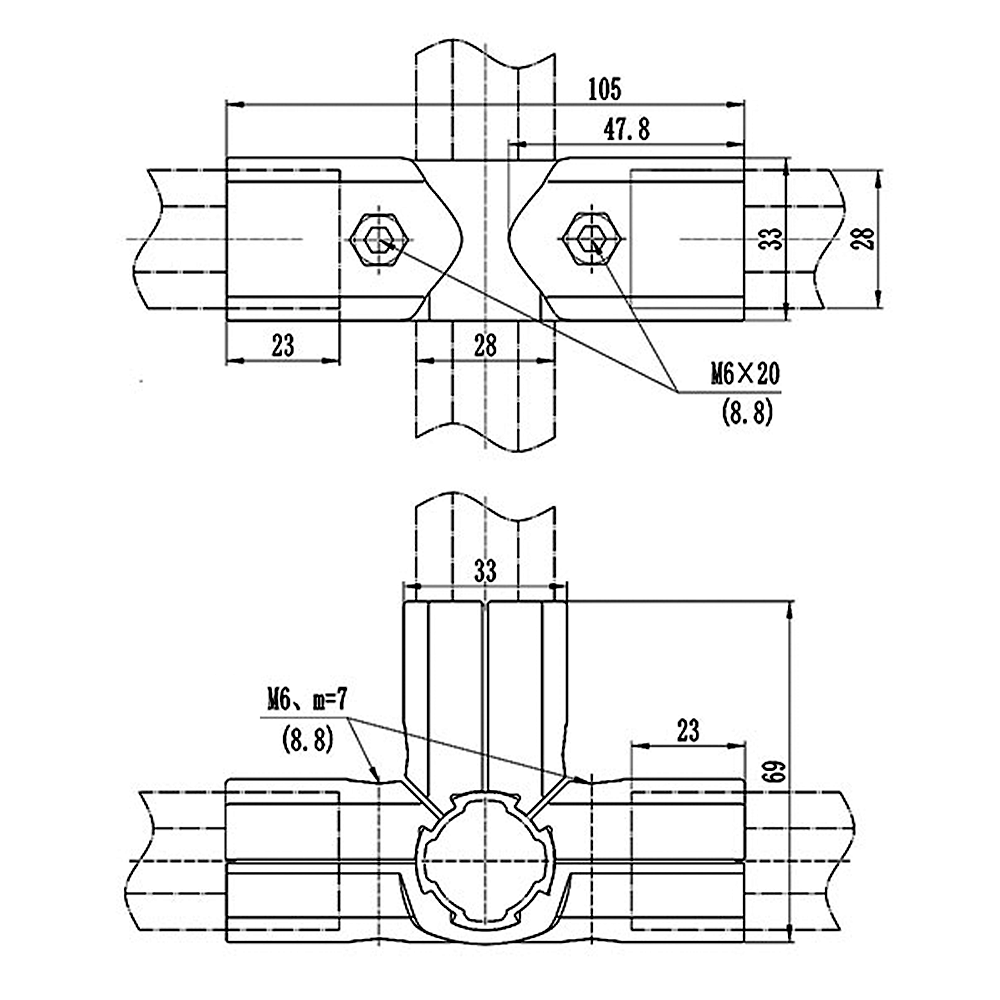

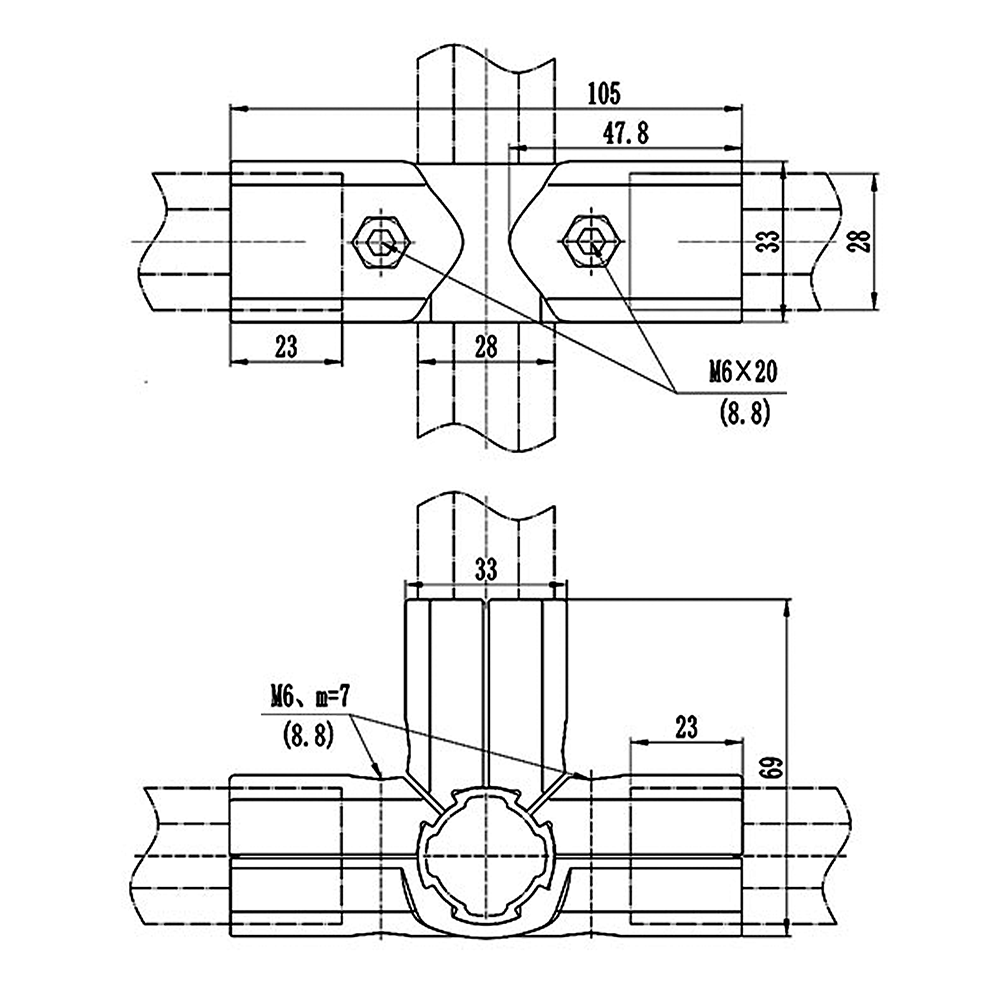

TECHNICAL

  • CONNECTS ON END OF D28 PROFILE EXTERNALLY
  • COMES WITH CLAMPING HARDWARE

INFO

  • WORKS WITH 10-D28-0, AND 10-28H-0
  • CONNECTS 3 PIECES OF D28 PROFILE AT RIGHT ANGLES
  • CREATES 90 DEG TEE CONNECTION
  • GOOD FOR MID BAR CONNECTIONS

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
Click image to enlarge
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE
41D-160-0 MODULAR SOLUTION D28 CONNECTOR<BR>CONNECTOR SHAFT TO TRIPPLE END TEE

Specifications

TYPE SHAFT TO END CONNECTOR

Item # 41D-160-0

MODULAR SOLUTION D28 CONNECTOR
CONNECTOR SHAFT TO TRIPPLE END TEE

  • $4.35 / EA
    • TYPICALLY STOCKED, IF OUT CONTACT FOR ETA
    • Log in to see if custom discounts apply
