Item # 4A330E10T

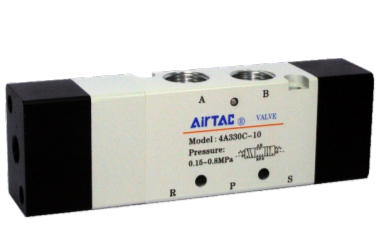

AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID

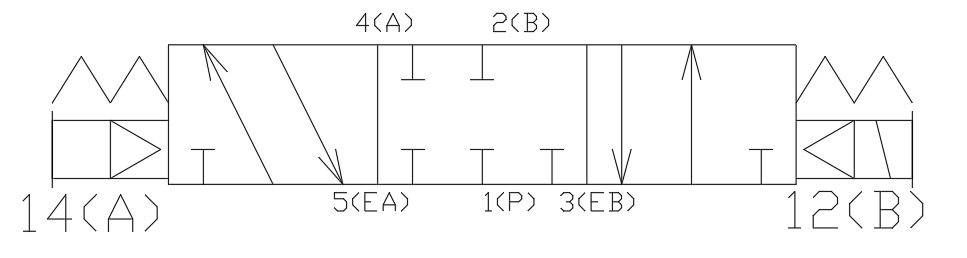

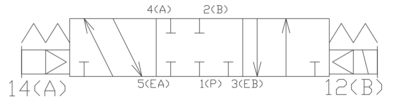

4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE

  • $39.22 / EA
  • Manufacturer: AIRTAC
  • UM: EA

AIRTAC 4A300 SERIES - AIR PILOT VALVES

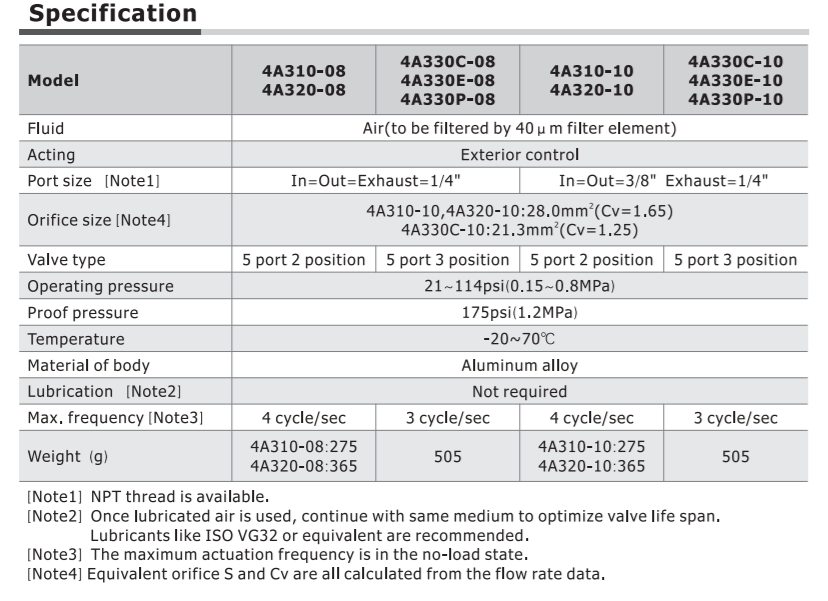

SPECIFICATIONS

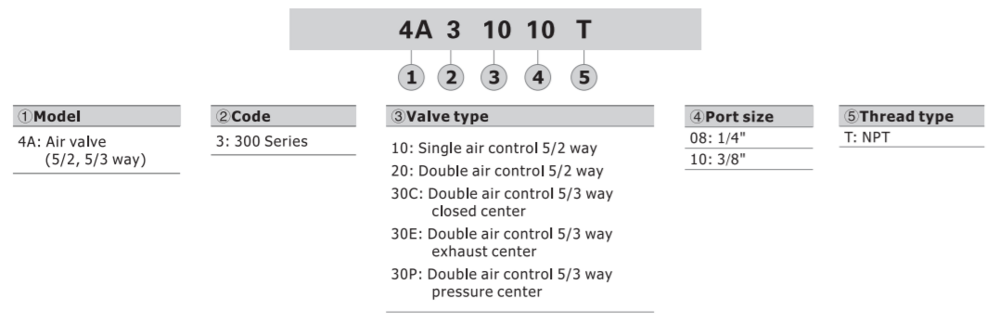

MODEL #:
4A310-06,
4A320-06,
4A330(C/E/P)-06
4A310-08, 4A320-08
4A330(C/E/P)-08
VALVE TYPE:
4A310-06,
4A320-06:
5 PORT 2 POSITION
4A330(C/E/P):
5 PORT 2 POSITION
4A310-08,
4A320-08:
5 PORT 3 POSITION
4A330(C/E/P):
5 PORT 3 POSITION
PORT TYPE:
1/4" IN/OUT:
4A310-08, 4A320-08 & 4A330(C/E/P)-08
3/8" IN/OUT & 1/4" EXHAUST:
4A310-10,
4A320-10 & 4A330(C/E/P)-10
FLOW:
4A310-08,
4A320-08:
CV: 1.40
4A330(C/E/P)-08:
CV: 1.00
4A310-10,
4A320-10:
CV: 1.68
4A330(C/E/P)-10:
CV: 1.00
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C


FEATURES
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THE DOUBLE AIR CONTROL VALVE OFFERS MEMORY FUNCTIONALITY.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE
NO NEED TO ADD OIL FOR LUBRICATION.
VALVE INCLUDES MANUAL OVERRIDE TO FACILITATE INSTALLATION AND DEBUGGING.
SEVERAL STANDARD VOLTAGE GRADES ARE AVAILABLE.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
Click image to enlarge
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE
4A330E10T AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE

Specifications

PORT SIZE LARGE BODY AIR PIOLTED VALVES
PORT TYPE NPT
CONTROL FUNCTION DOUBLE PILOTED
VALVE FUNCTION 4 WAY 3 POSITION EXHAUST (OPEN) CENTER
VOLTAGE AIR PILOTED
NONE
SERIES AIRTAC 4A3 SERIES

Item # 4A330E10T

AIRTAC CONTROL VALVE, 4A3 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION EXHAUST (OPEN) CENTER AIR PILOTED, 3/8"NPT, NONE

  • $39.22 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply
