Item # 4V130C06BIT

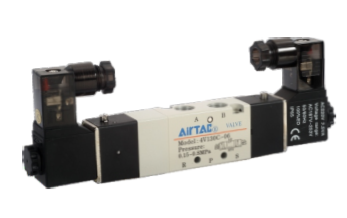

AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED

  • $42.09 / EA
  • Manufacturer: AIRTAC
  • UM: EA

AIRTAC 4V100 SERIES - SOLENOID VALVES

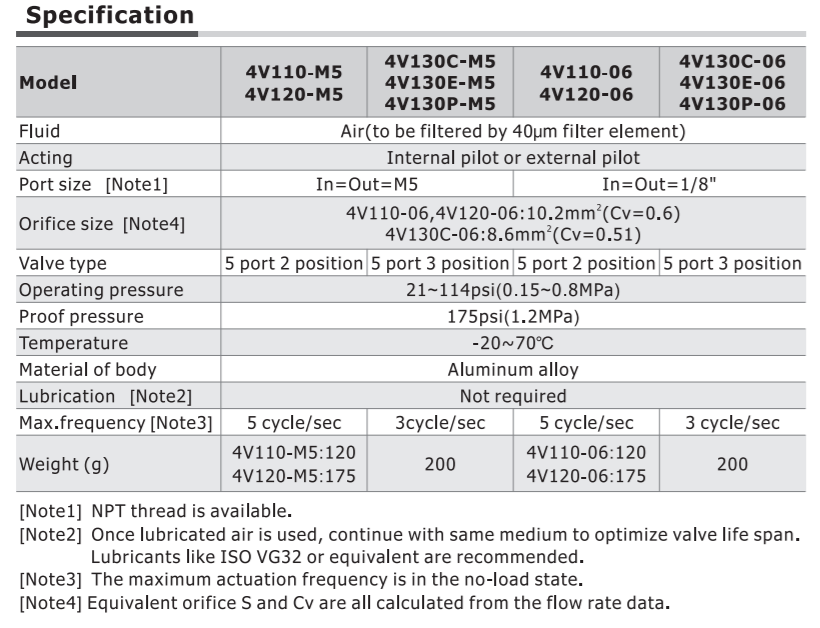

SPECIFICATIONS

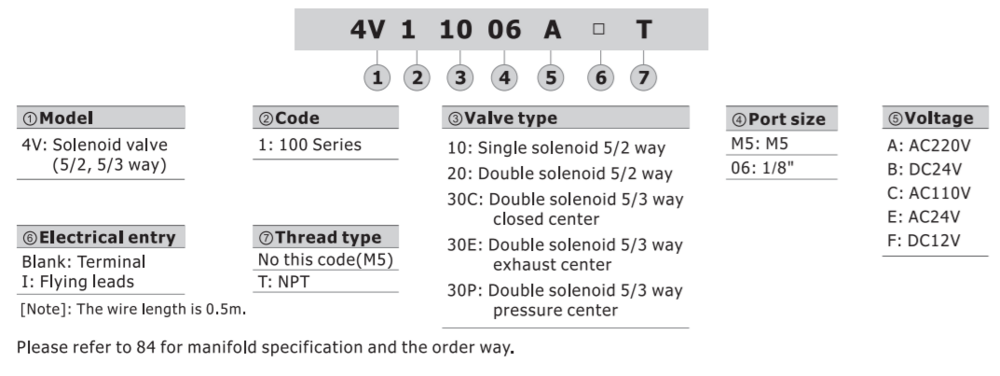

MODEL #:
4V110-M5,
4V120-M5,
4V130(C/E/P)-M5
4V110-06,
4V120-06, 4V130(C/E/P)-06
VALVE TYPE:
4V110-M5 &
4V120-M5:
5 PORT 2 POSITION
4V130(C/E/P)-M5:
5 PORT 3 POSITION
4V110-06 &
4V120-06:
5 PORT 2 POSITION
4V130(C/E/P)-06:
5 PORT 3 POSITION
PORT TYPE:
M5: 4V110-M5, 4V120-M5, 4V130(C/E/P)-M5
1/8": 4V110-06, 4V120-06, 4V130(C/E/P)-06
FLOW:
4V110-M5 &
4V120-M5:
CV: 0.31
4V130(C/E/P)-M5:
CV: 0.28
4V110-06 &
4V120-06:
CV: 0.67
4V130(C/E/P)-06:
CV: 0.50
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C
POWER CONSUMPTION:
AC220V & AC110V: 3.5VA
AC24V: 4.0VA
DC24V & DC12V: 2.5W


FEATURES
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THE DOUBLE AIR CONTROL VALVE OFFERS MEMORY FUNCTIONALITY.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE
NO NEED TO ADD OIL FOR LUBRICATION.
MULTIPLE MOUNTING HOLES OFFER AN EASY AND ADAPTABLE INSTALL AND APPLICATION.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
Click image to enlarge
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED
4V130C06BIT AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED

Specifications

PORT SIZE SMALL BODY SOLENOID VALVES
PORT TYPE NPT
CONTROL FUNCTION DOUBLE SOLENOID
VALVE FUNCTION 4 WAY 3 POSITION BLOCKED CENTER
VOLTAGE 24VDC
HARDWIRED
SERIES AIRTAC 4V1 SERIES

Item # 4V130C06BIT

AIRTAC CONTROL VALVE, 4V1 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION BLOCKED CENTER 24VDC, 1/8"NPT, HARDWIRED

  • $42.09 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply
