Item # 4V21006FT

AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID
4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN

  • $20.13 / EA
  • Manufacturer: AIRTAC
  • UM: EA

AIRTAC 4V200 SERIES - SOLENOID VALVES

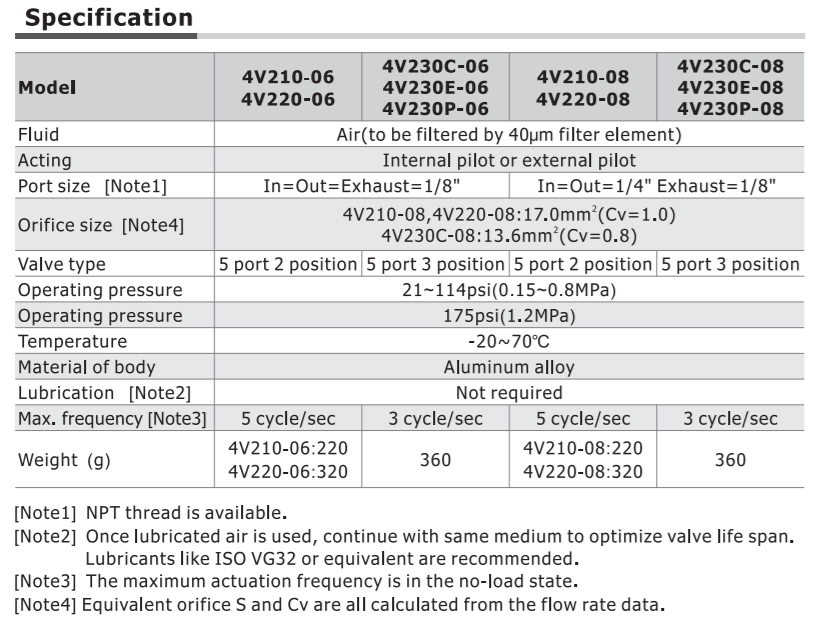

SPECIFICATIONS

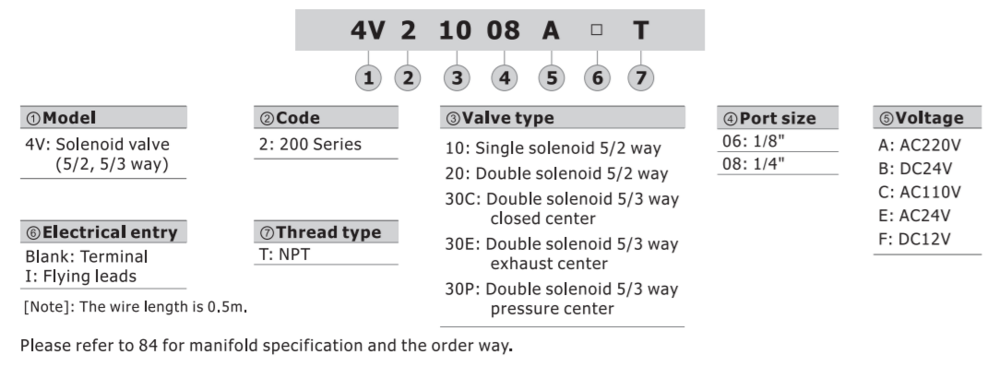

MODEL #:
4V210-06,
4V220-06, 4V230(C/E/P)-06
4V210-08,
4V220-08, 4V230(C/E/P)-08
VALVE TYPE:
4V210-06,
4V220-06:
5 PORT 2 POSITION
4V230(C/E/P)-06:
5 PORT 3 POSITION
4V210-08,
4V220-08:
5 PORT 2 POSITION
4V230(C/E/P)-08:
5 PORT 3 POSITION
PORT TYPE:
1/8": 4V210-06, 4V220-06, 4V230(C/E/P)-06
1/4" IN/OUT, 1/8" EXHAUST:
4V210-08, 4V220-08,
4V230(C/E/P)-08
FLOW:
4V210-06 &
4V220-06:
CV: 0.78
4V230(C/E/P)-06:
CV: 0.67
4V210-08 &
4V220-08:
CV: 0.89
4V230(C/E/P)-08:
CV: 0.67
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C
POWER CONSUMPTION:
AC220V & AC110V: 4.5VA
AC24V: 5.0VA
DC24V & DC12V: 3.0W


FEATURES
PILOT-ORIENTED MODELS AVAILABLE AS AN INTERNAL OR EXTERNAL PILOT.
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THREE POSITION SOLENOID VALVES HAVE THREE KINDS OF CENTRAL FUNCTIONS OF YOUR CHOICE.
DOUBLE CONTROL SOLENOID VALVES HAVE MEMORY FUNCTION.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE.
NO NEED TO ADD OIL FOR LUBRICATION.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.
AFFILIATED MANUAL DEVICES ARE EQUIPPED TO FACILITATE INSTALLATION AND DEBUGGING.
SEVERAL STANDARD VOLTAGE GRADES ARE AVAILABLE.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
Click image to enlarge
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN
4V21006FT AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID<BR>4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN

Specifications

PORT SIZE MEDIUM BODY SOLENOID VALVES
PORT TYPE NPT
CONTROL FUNCTION SINGLE SOLENOID

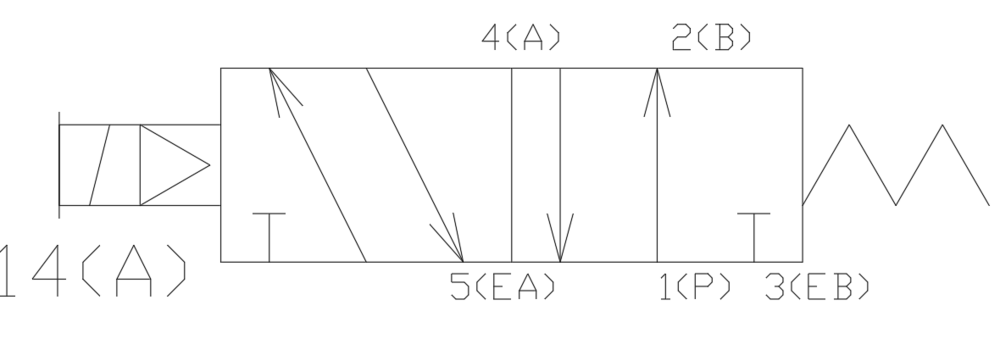

VALVE FUNCTION 4 WAY 2 POSITION
VOLTAGE 12VDC
DIN
SERIES AIRTAC 4V2 SERIES

Item # 4V21006FT

AIRTAC CONTROL VALVE, 4V2 SERIES, SINGLE SOLENOID
4 WAY 2 POSITION 12VDC, 1/8"NPT, DIN

  • $20.13 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply
