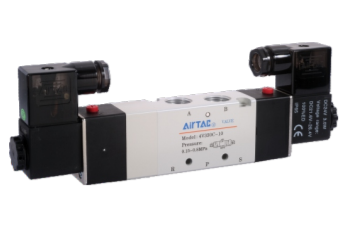

Item # 4V330C10BT

AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN

  • $56.12 / EA
  • Manufacturer: AIRTAC
  • UM: EA

AIRTAC 4V300 SERIES - SOLENOID VALVES

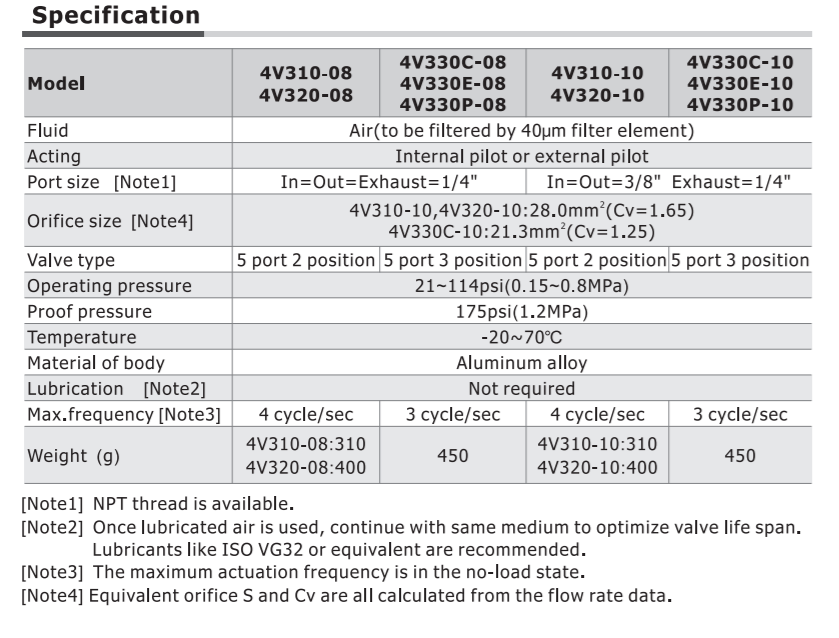

SPECIFICATIONS
MODEL #:
4V310-08,
4V320-08, 4V330(C/E/P)-08
4V310-10,
4V320-10, 4V330(C/E/P)-10
VALVE TYPE:
4V310-08,
4V320-08:
5 PORT 2 POSITION
4V330(C/E/P)-08:
5 PORT 3 POSITION
4V310-10,
4V320-10:
5 PORT 2 POSITION
4V330(C/E/P)-10:
5 PORT 3 POSITION
PORT TYPE:
1/4": 4V310-08, 4V320-08, 4V330(C/E/P)-08
3/8" IN/OUT, 1/4" EXHAUST:
4V310-10,
4V320-10, 4V330(C/E/P)-10
FLOW:
4V310-10,
4V320-10:
CV: 1.40
4V330(C/E/P)-08:
CV: 1.00
4V320-10 &
4V320-10:
CV: 1.68
4V330(C/E/P)-10:
CV: 1.00
OPERATING
PRESSURE:
0.15-0.8MPA
(21-114PSI)
TEMPERATURE
RANGE:
-20~70?C
POWER CONSUMPTION:
AC220V & AC110V: CV: 4.5VA
AC24V: 5.0VA
DC24V & DC12V: 3.0W


FEATURES
PILOT-ORIENTED MODELS AVAILABLE AS AN INTERNAL OR EXTERNAL PILOT.
THE VALVE SPOOL & SLEEVE OFFERS GOOD TIGHTNESS AND SENSITIVE REACTION.
THREE POSITION SOLENOID VALVES HAVE THREE KINDS OF CENTRAL FUNCTIONS OF YOUR CHOICE.
DOUBLE CONTROL SOLENOID VALVES HAVE MEMORY FUNCTION.
THE VALVE SLEEVES ARE PRECISION MANUFACTURED WITH HOLES THAT GIVE LITTLE ATTRITION FRICTION. THIS ALLOWS LOW START PRESSURE & LONGER LIFE.
NO NEED TO ADD OIL FOR LUBRICATION.
BY INTEGRATING WITH MANIFOLDS, YOU CAN SAVE SPACE FOR INSTALLATION.
AFFILIATED MANUAL DEVICES ARE EQUIPPED TO FACILITATE INSTALLATION AND DEBUGGING.
SEVERAL STANDARD VOLTAGE GRADES ARE AVAILABLE.


THE AUTOMATION WAREHOUSE IS AN AUTHORIZED, STOCKING AIRTAC DISTRIBUTOR. IT HAS A WIDE VARIETY OF FLUID POWER & LINEAR MOTION SOLUTIONS WHICH ARE GREAT FOR MANY APPLICATIONS SUCH AS:

  • ROBOTIC APPLICATIONS/END OR ARM TOOLING
  • MANUFACTURING EQUIPMENT
  • PACKAGING EQUIPMENT
  • MATERIAL HANDLING EQUIPMENT
  • COMPRESSED AIR SYSTEMS/AIR COMPRESSORS
  • MEDICAL EQUIPMENT
  • AND MORE...

CAD FILES:
CLICK HERE

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
Click image to enlarge
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN
4V330C10BT AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID<BR>4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN

Specifications

PORT SIZE LARGE BODY SOLENOID VALVES
PORT TYPE NPT
CONTROL FUNCTION DOUBLE SOLENOID
VALVE FUNCTION 4 WAY 3 POSITION BLOCKED CENTER
VOLTAGE 24VDC
DIN
SERIES AIRTAC 4V3 SERIES

Item # 4V330C10BT

AIRTAC CONTROL VALVE, 4V3 SERIES, DOUBLE SOLENOID
4 WAY 3 POSITION BLOCKED CENTER 24VDC, 3/8"NPT, DIN

  • $56.12 / EA
    • IF OUT OF STOCK, LEAD TIME 3-5 DAYS
    • Log in to see if custom discounts apply
