Item # 8652A2M02012300
NUMATICS/AVENTICS MAN SHUT-OFF VALVE 652 SERIES 2/2, 1/4" NPT, NO GAUGE, FLOW R->L
- $70.34 / EA
- Manufacturer: NUMATICS
- UM: EA
EMERSON OFFERS A COMPLETE RANGE OF MODULAR, EASY-TO-ASSEMBLE AIR PREPARATION PRODUCTS.
- ROBUST AND EASY-TO-OPERATE SHUT OFF VALVE, WITH LOCKOUT (FRONT OR BACK) ON HANDLE
- PROVIDES SHUT OFF TO DOWNSTREAM MACHINERY
- OPTIONAL LOW PROFILE GAUGE PROVIDES CLEAR INDICATION OF THE DOWNSTREAM PRESSURE, AND WHEN THE DOWNSTREAM COMPONENTS CAN BE SAFELY REMOVED WHEN PRESSURE (P2) IS AT ZERO
- AVAILABLE AS 3/2 OR 2/2 CONSTRUCTION
- HREADED PORTS ALLOW FOR INDIVIDUAL OR MODULAR MOUNTING
CAD FILES:
CLICK HERE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

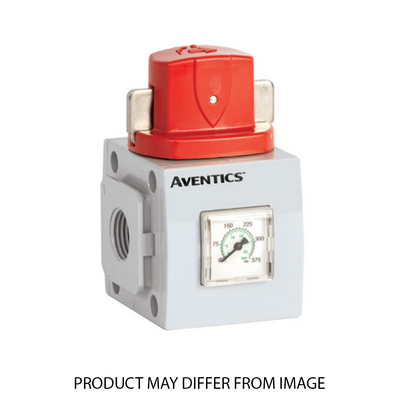

Click image to enlarge
Specifications
| TYPE | 2/2 |
| PORT SIZE | 1/4" |
| PORT TYPE | NPT |
| GAUGE TYPE | NO GAUGE PORT |
| SPECIAL OPTIONS | REVERSE FLOW |
Item # 8652A2M02012300
NUMATICS/AVENTICS MAN SHUT-OFF VALVE 652 SERIES 2/2, 1/4" NPT, NO GAUGE, FLOW R->L
Documents
×
