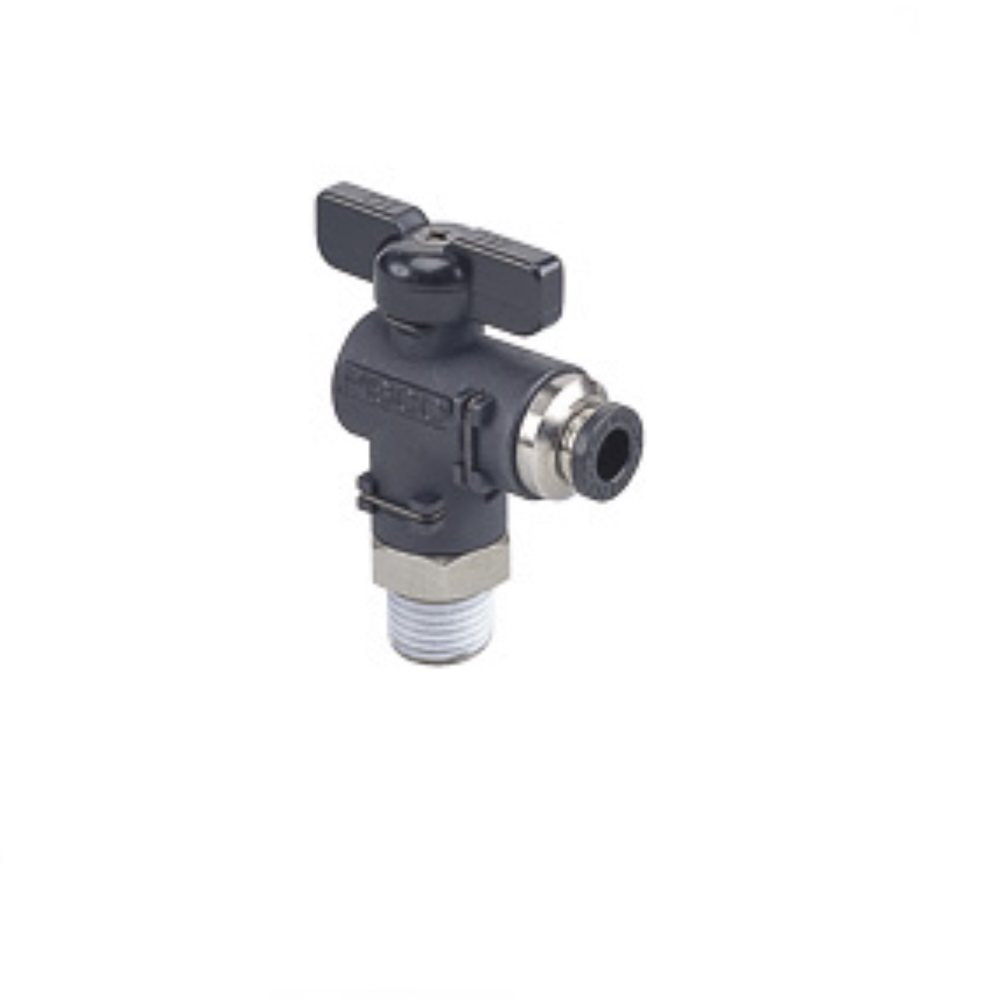

Item # BVLC60-1002
PISCO NP BRASS BALL VALVE
10MM TUBE X 1/4" BSPT MALE ELBOW, T HANDLE
Click image to enlarge
Item # BVLC60-1002
PISCO NP BRASS BALL VALVE
10MM TUBE X 1/4" BSPT MALE ELBOW, T HANDLE
- UM : EA

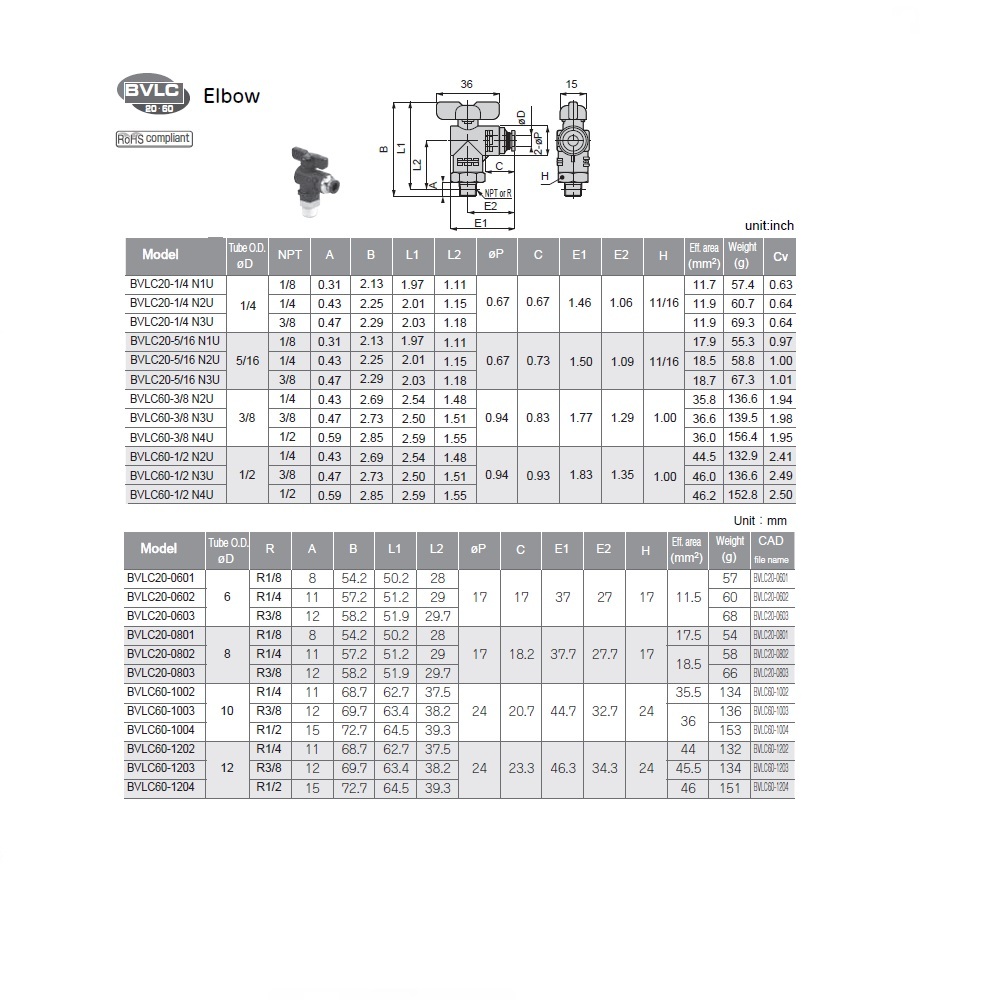

PISCO 10 SERIES, 20 SERIES & 60 SERIES BALL VALVES
PUSH-IN FITTING TYPE SHUT-OFF VALVES
SPECIFICATIONS
- FLUID MEDIUM: 10 SERIES: AIR, 20 & 60 SERIES: AIR/WATER
- OPERATING PRESSURE RANGE: 10 SERIES: 0?0.7MPA, 20 & 60 SERIES: 0?0.9MPA
- MAX VACUUM(ALL SERIES): -100KPA
- OPERATING TEMP RANGE (ALL SERIES): 0 ? 60? (NO FREEZING)
- EFFECTIVE AREA: 10 SERIES: 10MM2, 20 SERIES: 20MM2, 60 SERIES: 60MM2
- AVAILABLE TUBE SIZES: 1/8 TO 1/2 & 4MM TO 12MM
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| PORT SIZE | 1/4" |
| PORT TYPE | NPT |
| MALE / FEMALE | MALE |
| TUBE | 10MM |
| PRESSURE RANGE | 0-130 PSIG |
| HANDLE TYPE | T HANDLE |
| MATERIAL | PLASTIC |
| SPECIAL OPTIONS | NONE |
| MANUFACTURER | PISCO |
Documents
×
