Item # F20BB600B000061
NUMATICS/AVENTICS SOL-PILOT VALVE
2002 SERIES 4/3 BLOCKED CTR 24VDC, HW
- Call for Price
- UM: EA

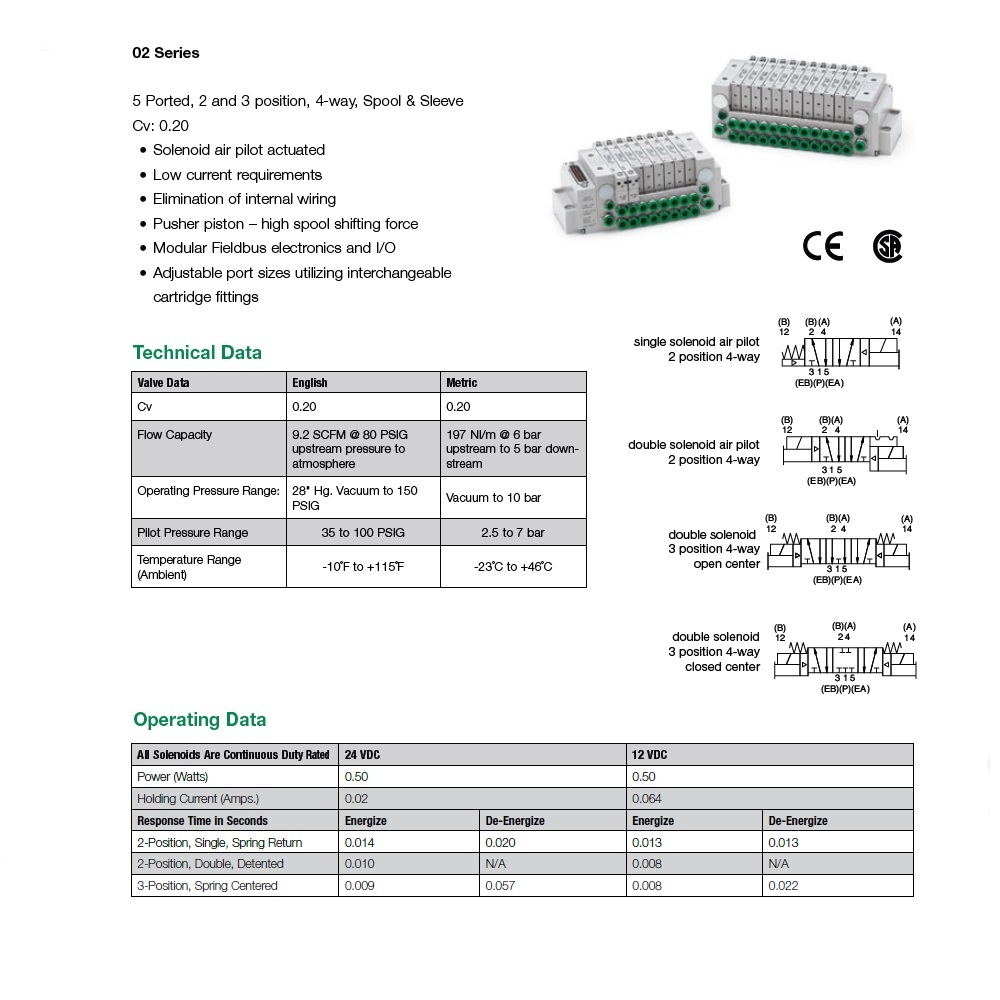

THE NUMATICS/AVENTICS 2002 (02) SERIES IS A COMPACT AND LIGHTWEIGHT SERIES OF VALVES AVAILABLE WITH VARIOUS ELECTRICAL CONNECTIONS AND PORT TYPES
SPECIFICATIONS
- 5 PORTED
- 2 AND 3 POSITION
- 4-WAY
- SPOOL & SLEEVE
- CV: 0.20
FEATURES
- SOLENOID AIR PILOT ACTUATED
- LOW CURRENT REQUIREMENTS
- ELIMINATION OF INTERNAL WIRING
- PUSHER PISTON ? HIGH SPOOL SHIFTING FORCE
- MODULAR FIELDBUS ELECTRONICS AND I/O
- ADJUSTABLE PORT SIZES UTILIZING INTERCHANGEABLE CARTRIDGE FITTINGS
CAD FILES:
CLICK HERE
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Click image to enlarge
Specifications
| CONTROL FUNCTION | DOUBLE SOLENOID PILOT |
| VALVE FUNCTION | 4 WAY 3 POSITION - (5/3) BLOCKED CENTER |
| VOLTAGE | 24 VDC |
| SPOOL TYPE | RUBBER PACKED |
| WIRING | HARDWIRED |
| SPECIAL OPTION | NONE |
Item # F20BB600B000061
NUMATICS/AVENTICS SOL-PILOT VALVE
2002 SERIES 4/3 BLOCKED CTR 24VDC, HW
Documents
×
