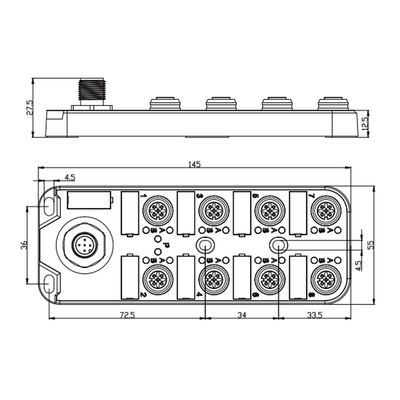

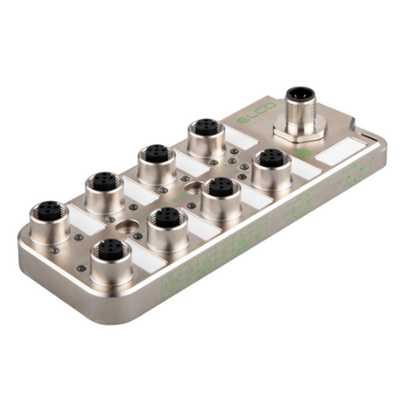

ELCO IO-LINK SENSOR HUB


• V1.1.3
• CLASS-A

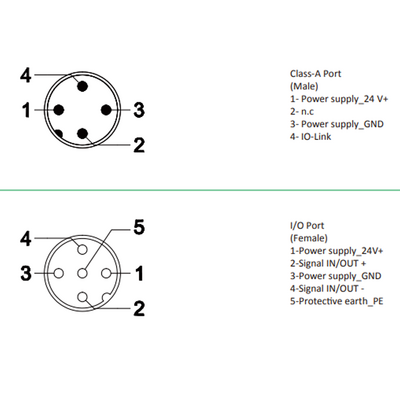

• M12 A-CODE 4-PIN IO-LINK CONNECTOR
• 8 X M12 A-CODE 5-PIN
• 8 AI/AO
• 0 ... 10 V / 0 ... 20 MA / 4 ... 20 MA
• 24 V DC
• METAL HOUSING
• IP67

IO-LINK IS A COMMUNICATION TECHNOLOGY THAT FACILITATES THE ACQUISITION AND CONTROL OF SENSOR AND ACTUATOR SIGNALS FROM CONTROL SYSTEMS DOWN TO THE LOWEST LEVEL OF AUTOMATION. IT OPERATES USING STANDARD, UNSHIELDED INDUSTRIAL CABLES, MAKING IT BOTH COST-EFFECTIVE AND EASY TO IMPLEMENT. AN IO-LINK SYSTEM TYPICALLY CONSISTS OF AN IO-LINK MASTER, UNSHIELDED CABLES, AND IO-LINK-ENABLED DEVICES. WHEN USED AS A SIGNAL HUB, THE ELCO IO-LINK MASTER SIGNIFICANTLY EXPANDS THE NUMBER OF SIGNALS THAT CAN BE CONNECTED TO EACH NODE, ENHANCING SCALABILITY AND EFFICIENCY IN INDUSTRIAL AUTOMATION SYSTEMS.

IP67 IO-LINK HUBS
• COMPLIANT WITH IO-LINK V1.1 REQUIREMENTS
• COMPATIBLE WITH ELCO OR OTHER BRAND IO-LINK MASTER
• IP67 PROTECTION LEVEL CAN BE INSTALLED ON SITE
• UP TO 16 DIGITAL SIGNALS OR 8 ANALOG SIGNALS
• LED STATUS DISPLAY, CHANNEL PROTECTION AND DIAGNOSIS
