Item # OS4-EDP6

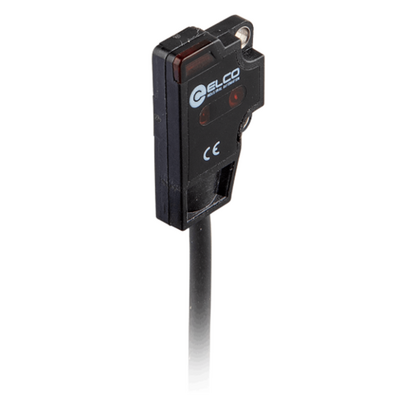

ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M

  • $22.23 / EA
  • Manufacturer: ELCO
  • UM: EA

ELCO OPPOSED OR THROUGH BEAM TYPE PHOTOELECTRIC SENSORS CONSIST OF AN EMITTER AND RECEIVER. ONCE ALIGNED, ANY OBJECT THAT BLOCKS LIGHT OVER THE THRESHOLD WILL TRIGGER THE DEVICE. BECAUSE OF THIS, THEY ARE HIGHLY SENSITIVE, CAN HAVE VERY LONG SENSING RANGES, CAN DETECT SMALL OBJECTS WHILE BEING RESISTANT TO DUST AND DEBRIS.

SPECIFICATIONS
OPPOSED RECEIVER:
FRONT OPPOSED RECEIVER
LASER TYPE:
RED BEAM
OPPERATING RANGE:
1M
OUTPUT:
PNP
INDICATOR:
D.O
TEMPERATURE RANGE:
-10 TO 55 DEG C
CABLE:
2M CABLE
CONNECTOR:
NONE
VOLTAGE:
10-30VDC
SWITCHING FREQUENCY:
800 HZ
SAFETY RATING:
IP67
SERIES:
OS4 SERIES

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
Click image to enlarge
OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M

Specifications

OPPOSED FRONT OPPOSED RECEIVER
LASER BEAM RED BEAM
OPERATING RANGE 1M
OUTPUT PNP
INDICATOR D.O
TEMPERATURE RANGE -10 TO 55 DEG C
CABLE 2M CABLE
CONNECTOR NONE
SERIES - BODY SIZE OS4 SERIES

Item # OS4-EDP6

ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M

  • $22.23 / EA
    • Log in to see if custom discounts apply

    Documents

    OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
    OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
    OS4-EDP6 ELCO PHOTOELECT SENSORS, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, DO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, CABLE 2M
