Item # OS4-ELP6-0.3-Q12

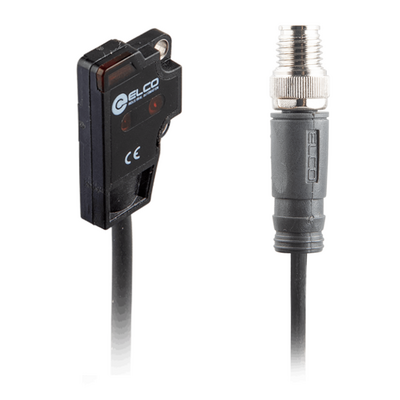

ELCO PHOTOELECT SENSOR, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, LO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, 0.3 M CABLE+M12 4-PIN
- $22.23 / EA
- Manufacturer: ELCO
- UM: EA
ELCO OPPOSED OR THROUGH BEAM TYPE PHOTOELECTRIC SENSORS CONSIST OF AN EMITTER AND RECEIVER. ONCE ALIGNED, ANY OBJECT THAT BLOCKS LIGHT OVER THE THRESHOLD WILL TRIGGER THE DEVICE. BECAUSE OF THIS, THEY ARE HIGHLY SENSITIVE, CAN HAVE VERY LONG SENSING RANGES, CAN DETECT SMALL OBJECTS WHILE BEING RESISTANT TO DUST AND DEBRIS.
| SPECIFICATIONS | |
|---|---|
| OPPOSED RECEIVER: | |
| LASER TYPE: | |
| OPPERATING RANGE: | |
| OUTPUT: | |
| INDICATOR: | |
| TEMPERATURE RANGE: | |
| CABLE: | |
| CONNECTOR: | |
| VOLTAGE: | |
| SWITCHING FREQUENCY: | |
| SAFETY RATING: | |
| SERIES: |
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| OPPOSED | FRONT OPPOSED RECEIVER |
| LASER BEAM | RED BEAM |
| OPERATING RANGE | 1M |
| OUTPUT | PNP |
| INDICATOR | L.O |
| TEMPERATURE RANGE | -10 TO 55 DEG C |
| CABLE | 0.3M CABLE |
| CONNECTOR | M12 4-PIN CONNECTOR |
| SERIES - BODY SIZE | OS4 SERIES |
Item # OS4-ELP6-0.3-Q12
ELCO PHOTOELECT SENSOR, OS4-SERIES, FRONT-OPPOSED, RECEIVER, RED BEAM, OR:1 M, PNP, LO, 10TO30VDC, -10TO55 DEG C, SW FRQ:800HZ, 0.3 M CABLE+M12 4-PIN
