Item # OSM41-K4000CBLU6

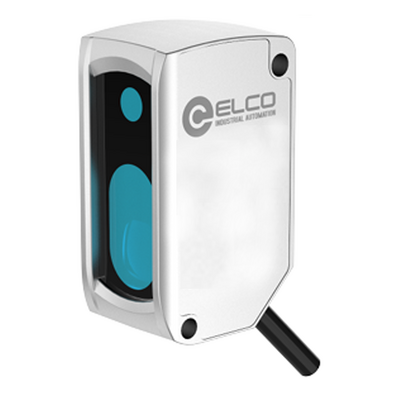

ELCO DISTANCE SENSOR(TOF), OSM41-SERIES, INFARED LASER + LASER INDICATION, OR:50-4000MM, RES: 3MM, NPN/PNP, ANALOG 0-5VDC/0-10VDC, 10-30VDC, 2M CABLE
- $217.70 / EA
- Manufacturer: ELCO
- UM: EA
TIME-OF-FLIGHT LASER DISTANCE SENSORS(TOF) EMIT A PULSE OF INFARED LASER LIGHT AND IT IS REFLECTS OFF A TARGET OBJECT AND IS RECEIVED BY THE SENSOR. THE SPEED OF LIGHT MULTIPLIED BY THE TIME IT TOOK TO RECEIVE THE LIGHT EQUALS THE DISTANCE FROM THE SENSOR TO THE OBJECT. WHEN ACTIVE THESE SENSORS PULSE DOZENS OF TIME PER SECOND. IN SOME MODELS HUNDREDS OR EVEN THOUSANDS OF TIMES PER SECOND.
| SPECIFICATIONS | |
|---|---|
| OPERATING RANGE: | |
| RESOLUTION: | |
| OUTPUT: | |
| OUTPUT OPTION: | |
| OPERATING VOLTAGE: | |
| CONNECTOR: | |
| TEMPERATURE RANGE: | |
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| OPERATING RANGE | 50-4000MM |
| RESOLUTION | 3MM |
| OUTPUT | NPN/PNP |
| OUTPUT OPTIONS | ANALOG |
| OPERATING VOLTAGE | 0-5VDC/0-10VDC |
| SERIES - BODY SIZE | OSM41 SERIES |
| OSM41 SERIES |
Item # OSM41-K4000CBLU6
ELCO DISTANCE SENSOR(TOF), OSM41-SERIES, INFARED LASER + LASER INDICATION, OR:50-4000MM, RES: 3MM, NPN/PNP, ANALOG 0-5VDC/0-10VDC, 10-30VDC, 2M CABLE
