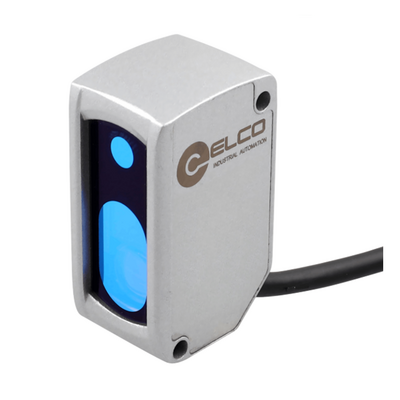

Item # OSM41-KL100CBLIU6
ELCO DISTANCE SENSOR(TRI), OSM41-SERIES, RED LASER, OR:100MM+/-35MM, RES: 0.01MM, NPN/PNP, ANALOG 4-20 MA/0-5VDC/0-10VDC, 10-30VDC, 2M CABLE
- $254.75 / EA
- Manufacturer: ELCO
- UM: EA
TRIANGULATION LASER DISTANCE SENSORS USE A RED LASER TO EMITTED A PULSE FROM THE SENSOR, REFLECTED OFF THE TARGET OBJECT AND TRAVELS BACK THROUGH THE RECEIVING LENS BEFORE BEING DETECTED BY THE CMOS LIGHT SENSOR. THE DISTANCE FROM THE SENSOR TO THE OBJECT IS CALCULATED BY DETERMINING WHERE THE HIGHEST INTENSITY OF LIGHT IS RECEIVED ALONG THE CMOS. THIS METHOD OF LASER DISTANCE MEASURMENT MEANS SMALLER DETECTION WINDOWS WITH HIGHER DEGREES OF ACCURACY.
| SPECIFICATIONS | |
|---|---|
| OPERATING RANGE: | |
| RESOLUTION: | |
| OUTPUT: | |
| OUTPUT OPTION: | |
| OPERATING VOLTAGE: | |
| CONNECTOR: | |
| TEMPERATURE RANGE: | |
NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM
Specifications
| OPERATING RANGE | 100+/-35MM |
| RESOLUTION | 0.01MM |
| OUTPUT | NPN/PNP |
| OUTPUT OPTIONS | ANALOG |
| OPERATING VOLTAGE | 4-20MA/0-5VDC/0-10VDC |
| CONNECTOR | 2M CABLE |
| SERIES - BODY SIZE | OSM41 SERIES |
Item # OSM41-KL100CBLIU6
ELCO DISTANCE SENSOR(TRI), OSM41-SERIES, RED LASER, OR:100MM+/-35MM, RES: 0.01MM, NPN/PNP, ANALOG 4-20 MA/0-5VDC/0-10VDC, 10-30VDC, 2M CABLE
Documents
