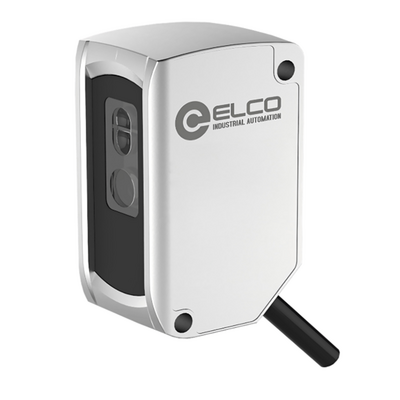

Item # OSM42-K2500C2B6

ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE

  • $199.17 / EA
  • Manufacturer: ELCO
  • UM: EA

TIME-OF-FLIGHT LASER DISTANCE SENSORS(TOF) EMIT A PULSE OF INFARED LASER LIGHT AND IT IS REFLECTS OFF A TARGET OBJECT AND IS RECEIVED BY THE SENSOR. THE SPEED OF LIGHT MULTIPLIED BY THE TIME IT TOOK TO RECEIVE THE LIGHT EQUALS THE DISTANCE FROM THE SENSOR TO THE OBJECT. WHEN ACTIVE THESE SENSORS PULSE DOZENS OF TIME PER SECOND. IN SOME MODELS HUNDREDS OR EVEN THOUSANDS OF TIMES PER SECOND.

SPECIFICATIONS
OPERATING RANGE:
50-2500MM
RESOLUTION:
5MM
OUTPUT:
2 X PUSH-PULL
OUTPUT OPTION:
TEACH BUTTON
OPERATING VOLTAGE:
10-30VDC
CONNECTOR:
2M CABLE
TEMPERATURE RANGE:
-10 TO 50 DEG C

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
Click image to enlarge
OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE

Specifications

OPERATING RANGE 50-2500MM
RESOLUTION 5MM
OUTPUT 2 X PUSH-PULL
OUTPUT OPTIONS TEACH BUTTON
OPERATING VOLTAGE 10-30VDC
SERIES - BODY SIZE OSM42 SERIES
OSM42 SERIES

Item # OSM42-K2500C2B6

ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE

  • $199.17 / EA
    • Log in to see if custom discounts apply

    Documents

    OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
    OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
    OSM42-K2500C2B6 ELCO DISTANCE SENSOR(TOF), OSM42-SERIES, INFARED LASER + LASER INDICATION, OR:50-2500MM, RES: 5MM, 2 X PUSH-PULL, TEACH BUTTON, 10-30VDC, 2 M CABLE
