Item # SCP102D24XC02

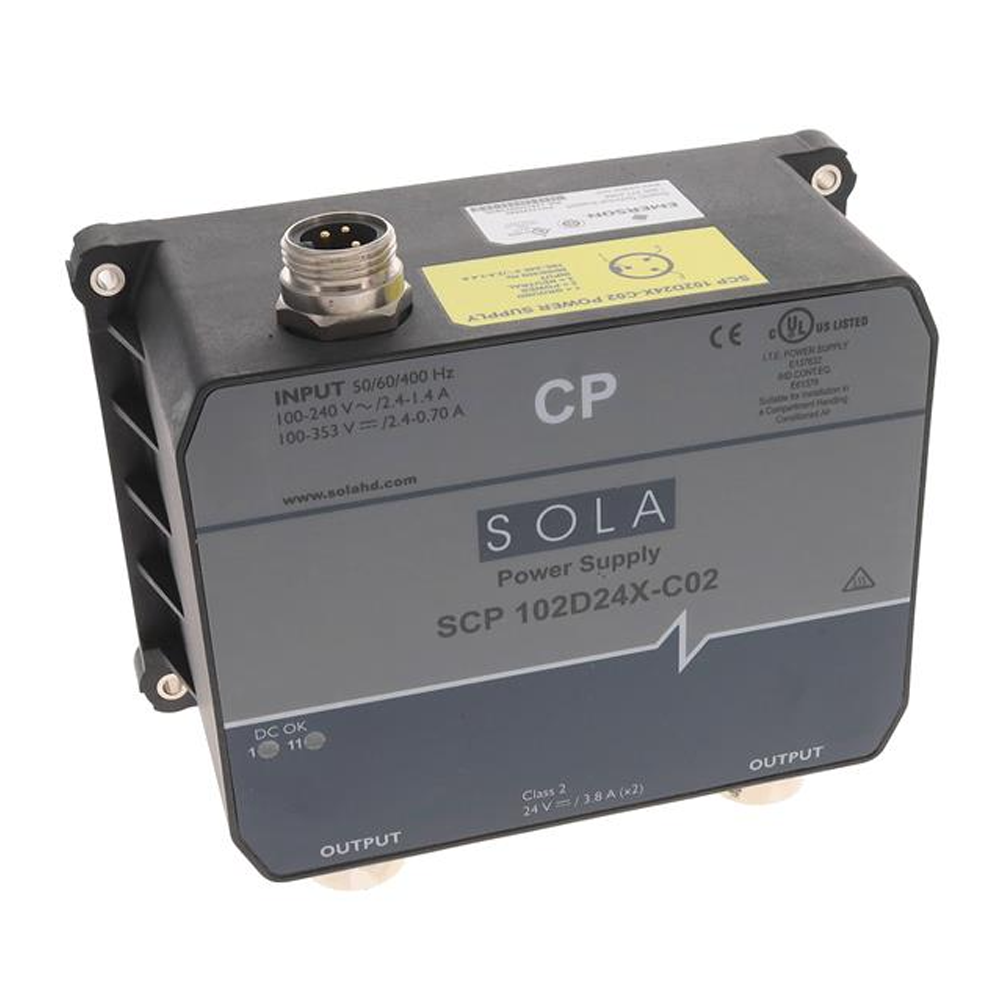

SOLAHD IP67 SCP-X AC-DC EXTREME ENVIRONMENT DUAL OUTPUT POWER SUPPLY 100W, 24V OUT(SCP 102D24X-C02)

  • $893.88 / EA
  • Manufacturer: SOLAHD
  • UM: EA
IP67 SCP-X SERIES, AC-DC EXTREME ENVIRONMENT DUAL OUTPUT POWER SUPPLY 100W, 24V OUTPUT

SOLA HD SCP-X SERIES STANDALONE 1P67 POWER SUPPLIES CAN BE MOUNTED ALMOST ANYWHERE ON A MACHINE, CONVEYOR, OR WALL. NO ENCLOSURE REQUIRED. QUICK-CONNECT CABLES ENSURE THE IP67 RATING AND ELIMINATE COSTLY WIRING. AVAILABLE FROM 100 WATTS TO 240 WATTS.

FEATURES
  • GLOBAL SAFETY RATING INCLUDING CULUS, CE, IP67, F47 SAG IMMUNITY, ROHS
  • IP54/66/67 ENVIRONMENTAL RATING ON ALL MODELS
  • SINGLE AND DUAL OUTPUT MODELS WITH CLASS 2 RATING (3.8A AND 7.6A NOMINAL AT 24VDC)
  • SINGLE AND DUAL 100 WATT CLASS 2 LISTED VERSIONS
  • MOUNTS IN ANY ORIENTATION (NO LIMITATION OR TEMPERATURE DERATE TO 60 °C)
  • APPROVED FOR UNIVERSAL AC AND DC INPUT VOLTAGE RANGES
  • DC OK VISUAL INDICATOR (GREEN LED) ON ALL MODELS
  • DC OK OUTPUT ON 10A MODEL
SERIES SPECIFICATIONS
CULUS LISTED, INDUSTRIAL CONTROL EQUIPMENT:
CLASS 2 SAFETY RATING (4A SINGLE AND 8A DUAL OUTPUT MODELS), PELV HUMAN SAFETY RATING ON ALL MODELS
INPUT FREQUENCY RANGE:
50/60/400 HZ SINGLE PHASE AC
INPUT VOLTAGE RANGE:
UNIVERSAL VOLTAGE RANGES OF 86-267 VAC OR 100-353 VDC
OUTPUT POWER:
100W, 200W AND 240W MODELS
OUTPUT VOLTAGE RANGE:
24 VDC OUTPUT WITH 25-25.5 VDC AUTO RECOVERY
FLANGE MOUNT:
FOUR FASTENER POINTS
OVERLOAD CAPABILITY:
.2 A ON CLASS 2 MODELS, 150&PERCNT FOR 4 SECONDS ON 10A MODEL
NUMBER OF PHASES:
SINGLE
VISUAL INDICATOR:
VISUAL: GREEN LED FOR DC OK
INPUT CONNECTOR ON ALL MODELS:
7/8", 3-PIN, MALE/EXTERNAL THREAD (REQUIRES FEMALE/INTERNAL THREAD CORD SET)

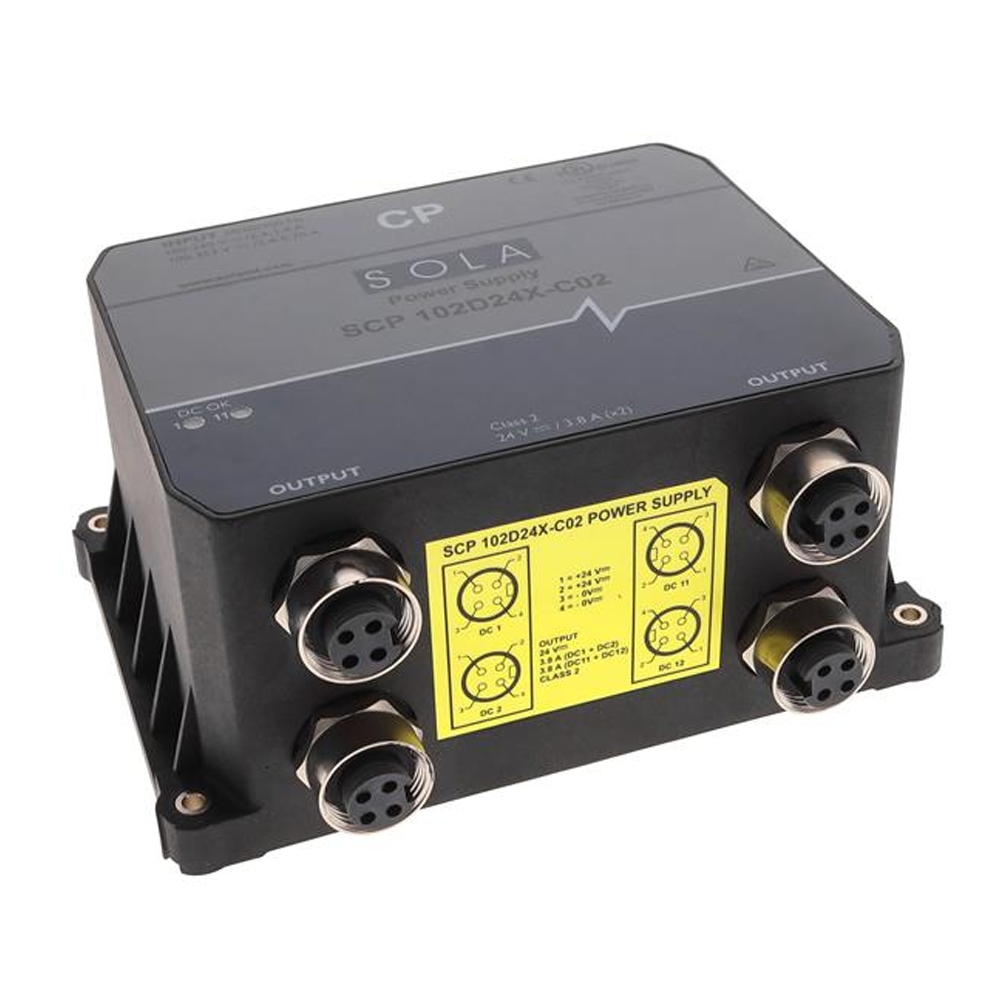

OUTPUT CONNECTOR ON CLASS 2 MODELS:
7/8" 4-PIN MALE/EXTERNAL THREAD
OUTPUT CONNECTOR ON 240W MODEL:
M12, 5-PIN, L-CODE, FEMALE/INTERNAL THREAD
DC OK RELAY CONNECTOR (240 WATT MODEL ONLY):
M12, 4-PIN, A-CODE, FEMALE/INTERNAL THREAD
