Item # SDP55100T

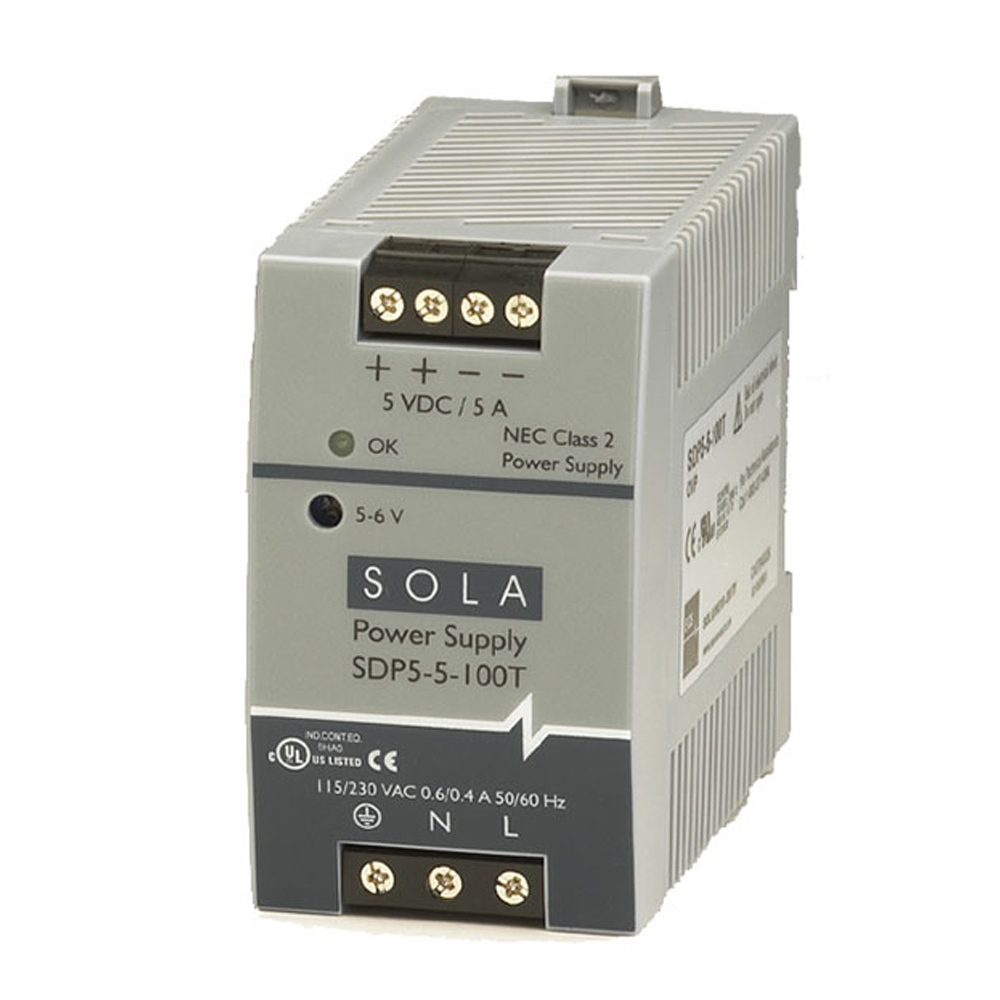

SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)

  • $150.85 / EA
  • Manufacturer: SOLAHD
  • UM: EA
SDP LOW POWER SERIES, DIN RAIL MOUNTING TYPE, POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT

SOLA HD SDP LOW POWER DIN RAIL SERIES POWER SUPPLIESPROVIDE EFFICIENT POWER FROM 5 TO 48 VDC AND UP TO 100 WATTS IN A CHOICE OF COMPACT, LIGHTWEIGHT DIN RAIL MOUNTED UNITS. THESE AFFORDABLE POWER SUPPLIES OFFER THE EXCEPTIONAL RELIABILITY AND ADVANCED FEATURES REQUIRED FOR INDUSTRIAL USE. POWERBOOST™ OVERLOAD CIRCUITRY STARTS UP INDUSTRIAL LOADS THAT CAN CAUSE ORDINARY POWER SUPPLIES TO FOLDBACK OR SHUTDOWN.

FEATURES
  • CULUS, CRUUS, CE, ROHS
  • ULTRA SLIM 15W FOOTPRINT
  • NO TOOLS REQUIRED FOR MOUNTING
  • ADJUSTABLE OUTPUT
  • POWERBOOST INDUSTRIAL OVERLOAD DESIGN
  • OVERVOLTAGE, SHORT CIRCUIT PROTECTION
  • CONTINUOUS SHORT CIRCUIT PROTECTION
  • LOW OUTPUT NOISE
  • SCREW TERMINAL CONNECTIONS
SERIES SPECIFICATIONS
UL RECOGNIZED COMPONENT, HAZ. LOC.:
CLASS I, DIVISION 2, GROUPS A, B, C, D
HERTZ:
47-63 HZ
INPUT VOLTAGE RANGE:
SDP-T: 85-264 VAC, 90-375 VDC.
SDP-LT/SDP-RT: 85-132 / 176-264 VAC, 210-375 VDC
OPERATING TEMPERATURE:
-10 DEGREES C TO +70 DEGREES C FULL POWER
OUTPUT POWER:
25-100 W
OUTPUT VOLTAGE RANGE:
5, 6, 10, 12, 15, 24, 28, 48, 56 VDC
OVERLOAD CAPABILITY:
SDP-T: > 30 VDC, BUT < 33 VDC, AUTO RECOVERY.
SDP-LT: > 26 VDC, BUT < 27.2 VDC, AUTO RECOVERY.
SDP-RT: > 30 VDC, BUT < 33 VDC, AUTO RECOVERY
NUMBER OF PHASES:
SINGLE
STATUS INDICATOR:
VISUAL: GREEN LED OK
MOUNTING:
DIN TS35/7.5 OR TS35/15

NOT FINDING WHAT YOU NEED

SDP55100T SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)
SDP55100T SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)
Click image to enlarge
SDP55100T SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)
SDP55100T SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)

Specifications

POWER OUTPUT 25 WATT
OUTPUT VOLTAGE 5 VOLT

Item # SDP55100T

SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)

  • $150.85 / EA
    • IF OUT OF STOCK, CONTACT FOR ETA
    • Log in to see if custom discounts apply

    Documents

    SDP55100T SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)
    SDP55100T SOLAHD SDP LOW POWER DIN POWER SUPPLY, 25W, 5V OUTPUT, 115-230V AC/DC INPUT (SDP 5-5-100T)
