Item # 1360365

REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)

  • $1844.61 / EA
  • Manufacturer: REER
  • UM: EA
  • Weight: 16.00

THE JANUS SERIES OF SAFETY LIGHT CURTAINS HAVE INTEGRATED MUTING FUNCTIONS. THIS SERIES IS IDEAL FOR THE PROTECTION OF A VAST NUMBER OF HIGH-RISK INDUSTRIAL APPLICATIONS THAT REQUIRE AN ADDED LEVEL OF SAFETY. THE JANUS SERIES GAURANTEES INDEPENDANCE OF THE LIGHT GRID FROM THE CONTROL CIRCUITS OF THE SYSTEM, WHICH IS OFTEN DISTANT FROM THE PROTECTED GATE. MODEL OPTIONS ALSO INCLUDE SEPERATION OF THE LIGHT GRID AND MUTING SENSORS, ALL CONTROLLED FROM THE MAIN CONNECTOR.

ABOUT THIS MODEL:

SAFETY LIGHT CURTAIN: TYPE 4, SIL3, SILCL3, PL E, CAT. 4.
CROSS SECTION: 50 X 60 MM.
HARDWARE CONFIGURATION: NO PROGRAMMING NECESSARY, EASY TO INSTALL AND REPLACE, CONFIGURATION THROUGH MAIN CONNECTORS.
UNSHIELDED CABLES UP TO 100 M CAN BE USED TO CONNECT THE SAFETY LIGHT CURTAIN.
WHAT'S IN THE BOX: EMITTER, RECEIVER AND STANDARD FASTENING BRACKETS

SAFETY CERTIFICATIONS: CE, TÜV, UL

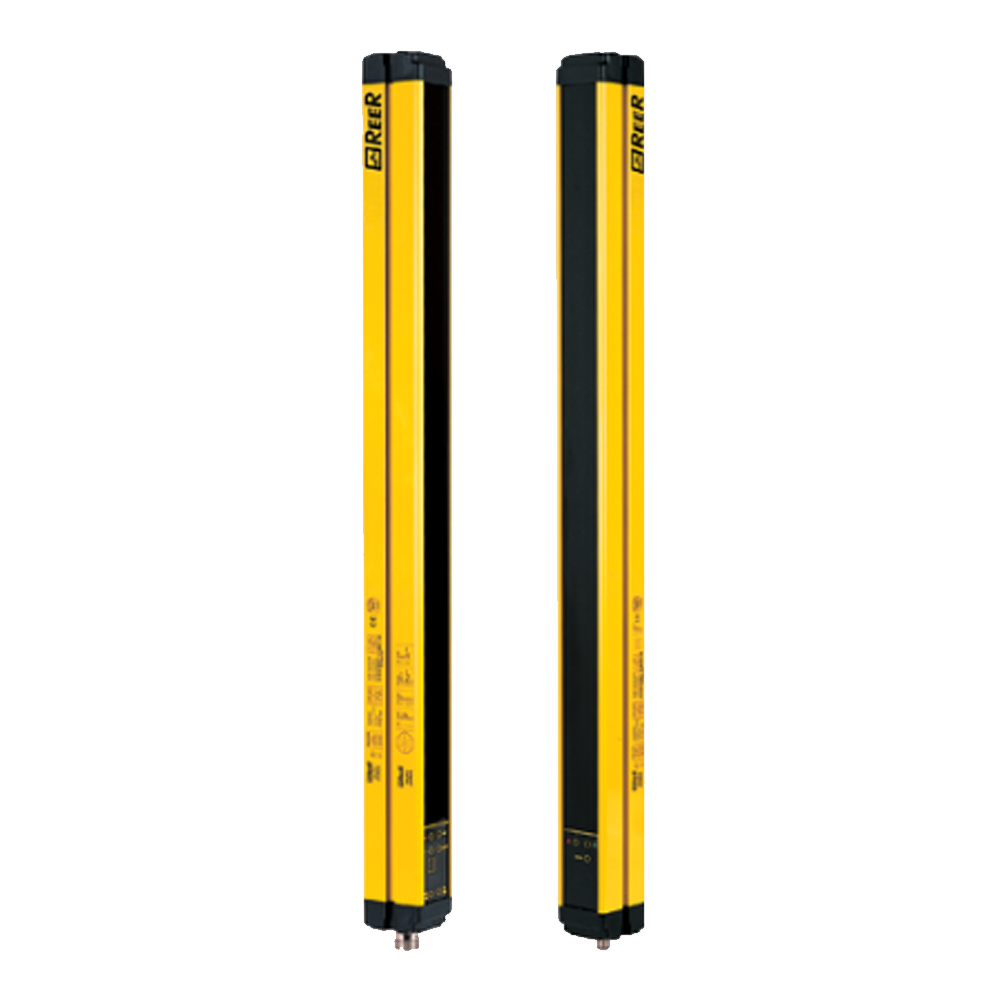

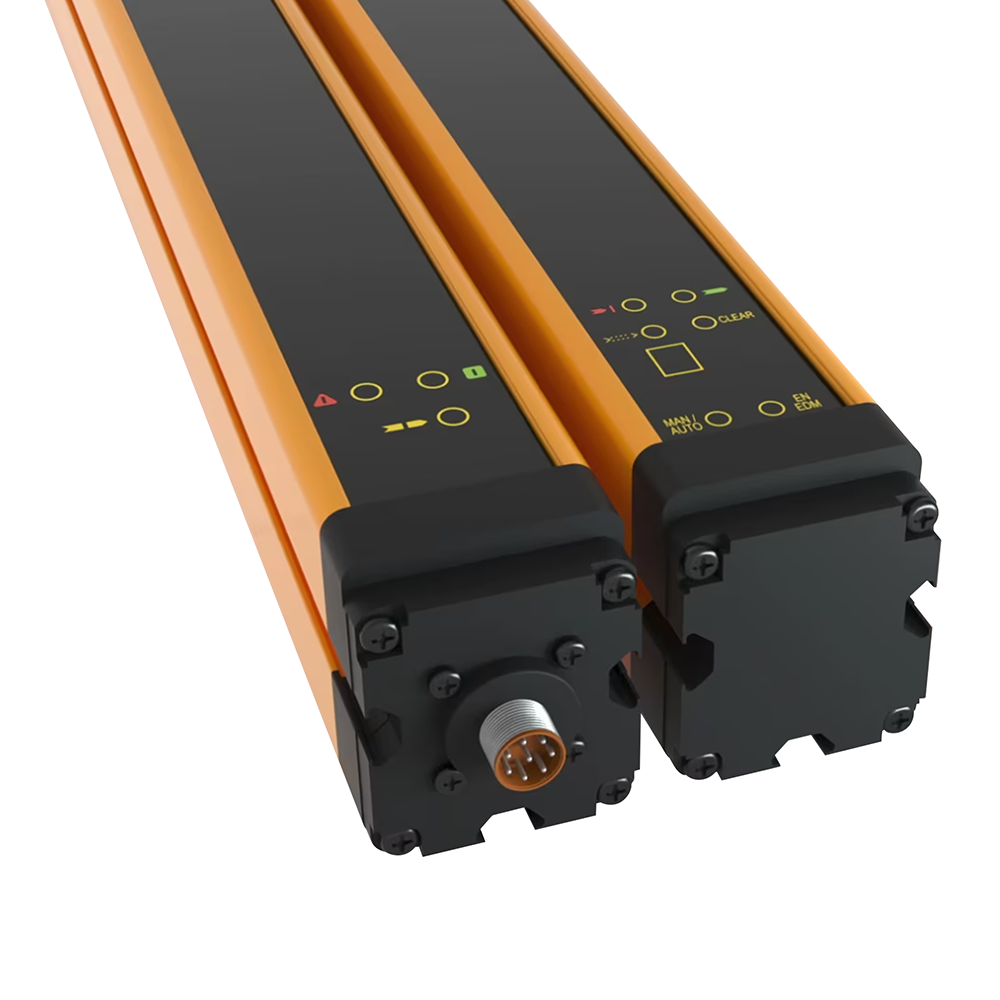

JANUS LONG RANGE, SAFETY LIGHT CURTAIN

SPECIFICATIONS
DETECTION LENGTH:
910 mm
RESOLUTION:
40 mm
HEIGHT:
1120 mm
WIDTH:
200 mm
DEPTH:
145 mm
WEIGHT:
7.28 Kg
DETECTION TYPE:
HAND
ADD ONS:
EXTERNAL DEVICE MONITORING
RESTART MODE:
AUTOMATIC/MANUAL

NOT FINDING WHAT YOU NEED?
SEND US AN E-MAIL:
SALES@THEPNEUMATICSTORE.COM

1360365 REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)
1360365 REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)
1360365 REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)
Click image to enlarge
1360365 REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)
1360365 REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)
1360365 REER HAND DETECT, A/M RESET AND EDM, XL RANGE, CAT 4, LENGTH: 1120MM(J 904 LR)

Specifications

MUTING TYPE J - NO MUTING
LR/ER LR - LONG-RANGE
RESOLUTION 40MM RESOLUTION
